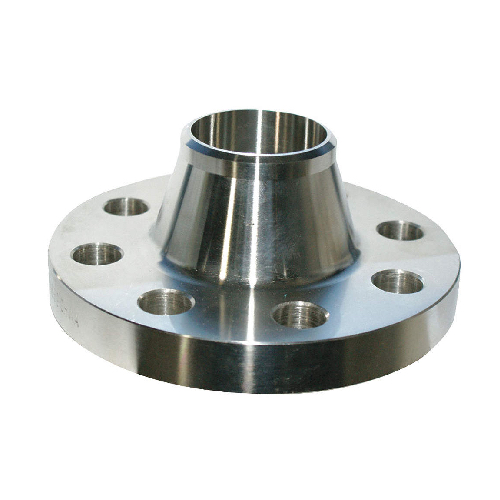

DN150 (6 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg
Internal Reference:
SS-NB-FLA-150-RF-WN-S80-300-304
Specifications
| Outside Diameter (mm) | 168.30mm |
