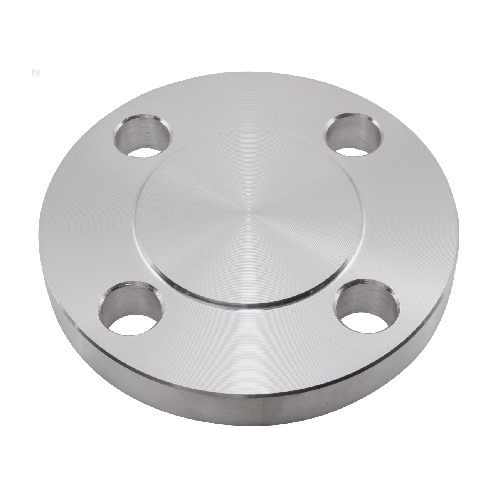

DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
Internal Reference:
SS-NB-FLA-20-RF-BLA-300-316
Specifications
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
