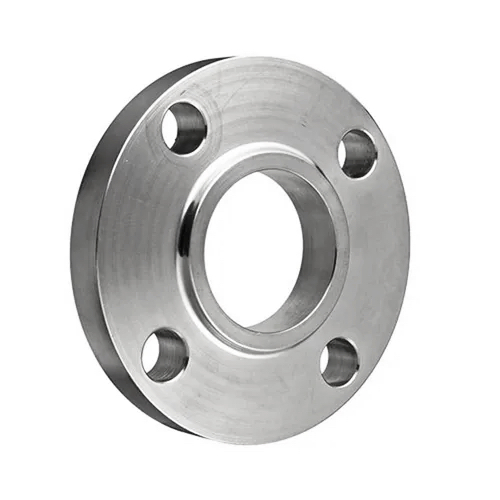

DN20 (3/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Internal Reference:
SS-NB-FLA-20-RF-SOB-ASA600-304
Specifications
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
