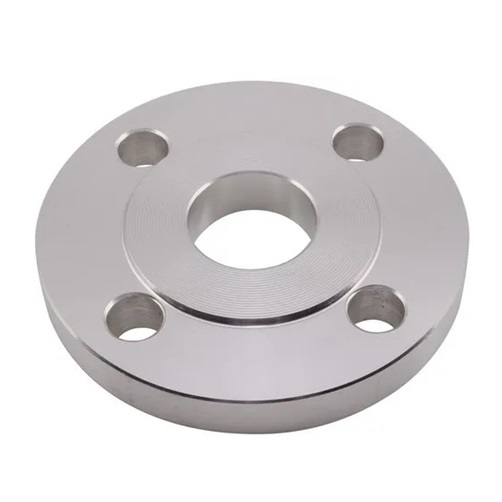

DN25 (1" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Technical Specification
Product Code
SS-NB-FLA-25-RF-SO-P6-316
Size (Inch)
1"
Outside Diameter (mm)
33.40mm
Weight
0.71 KG
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 62mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
Internal Reference:
SS-NB-FLA-25-RF-SO-P6-316
Specifications
| Size (Inch) | 1" |
| Outside Diameter (mm) | 33.40mm |
