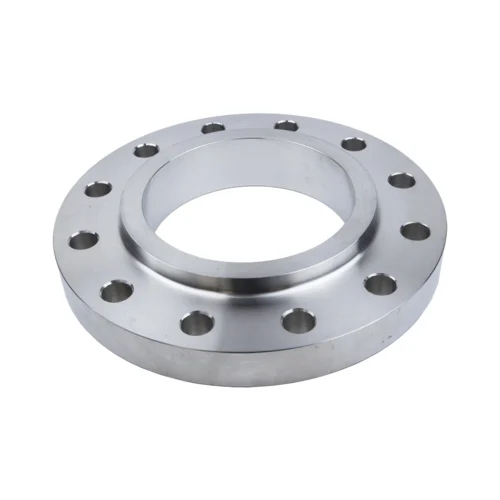

DN250 (10" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304

DN250 (10" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304

Product code: SS-NB-FLA-250-RF-SOB-ASA1500-304

(0 review)
Order other sizes
Product description

Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Material Stainless Steel
Grade 304
Outside Diameter (mm) 273.00mm
Nominal Size DN250
Pressure Rating Class 1500
Flange Face Raised face (RF)
Contact Us
Material: Stainless Steel
Grade: 304
Outside Diameter (mm): 273.00mm
Nominal Size: DN250
Pressure Rating: Class 1500
Flange Face: Raised face (RF)

Internal Reference: SS-NB-FLA-250-RF-SOB-ASA1500-304
