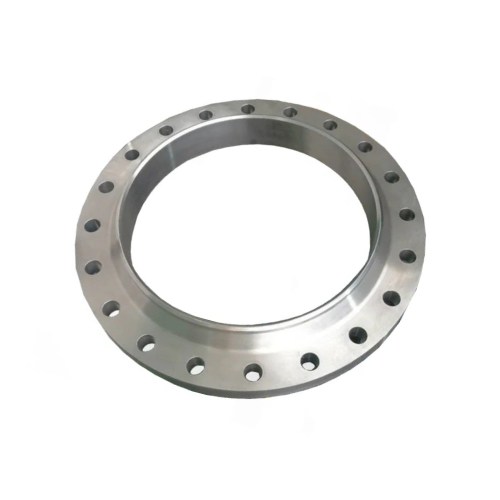

DN300 (12" NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316

DN300 (12" NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-300-RF-WN-S80-300-316
Size (Inch)
12"
Outside Diameter (mm)
323.90mm
Weight
64.0 KG
https://www.integraflow.co.uk/web/image/product.template/18409/image_1920?unique=92bc388
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 64.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-300-RF-WN-S80-300-316

Specifications

Size (Inch) 12"
Outside Diameter (mm) 323.90mm
