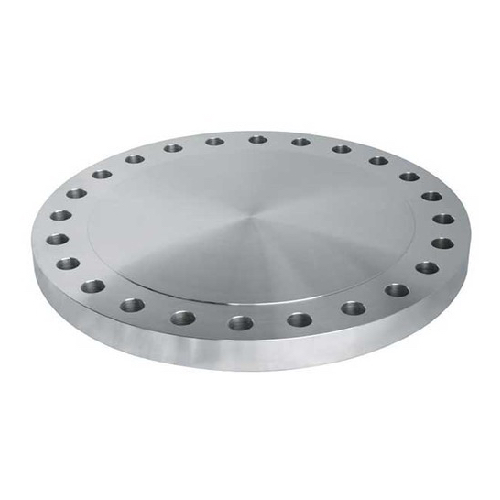

DN450 (18" NB) PN16 RF BLIND FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-450-RF-BLA-P16-304
Size (Inch)
18"
Outside Diameter (mm)
457.00mm
Weight
46.1 KG
Flange OD (D): 640mm
Drilling (No. x Bolt Hole x L): 20 x M27 x 30mm
Pitch circle diameter (K): 585mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Internal Reference:
SS-NB-FLA-450-RF-BLA-P16-304
Specifications
| Size (Inch) | 18" |
| Outside Diameter (mm) | 457.00mm |
