Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300

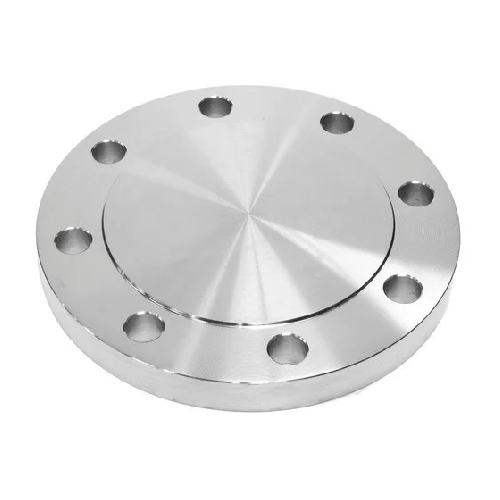

Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced
