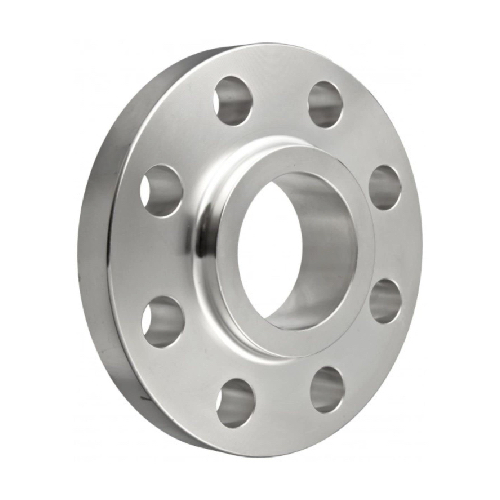

DN50 (2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-50-RF-SOB-ASA600-304
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Weight
3.7 KG
Flange outside diameter: 165.1mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 127.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 61.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Internal Reference:
SS-NB-FLA-50-RF-SOB-ASA600-304
Specifications
| Size (Inch) | 2" |
| Outside Diameter (mm) | 60.30mm |
