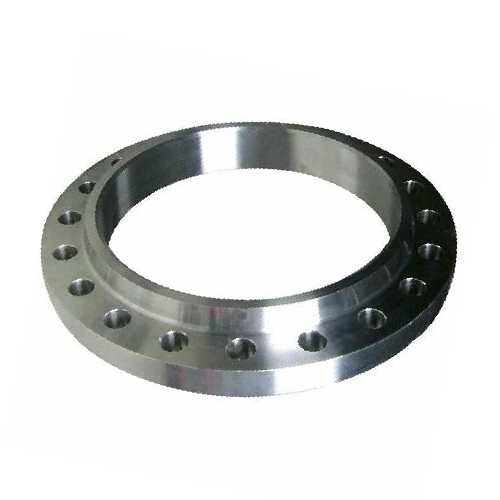

DN500 (20" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316

DN500 (20" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316

https://www.integraflow.co.uk/web/image/product.template/18194/image_1920?unique=4e89d3d

Flange outside diameter: 774.7mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 95.2mm (Y)
Pitch Circle Diameter (PCD): 685.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 513.0mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

£ 1.00 Tax Excluded

Contact us for pricing

    This combination does not exist.

    ​

    Contact Us

    Terms and Conditions
    Shipping: Generally 2-3 Business Days
    Please contact us for accurate lead times.

    Share

    Trustpilot

    Internal Reference: SS-NB-FLA-500-RF-SOB-ASA300-316
