ASA300

Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

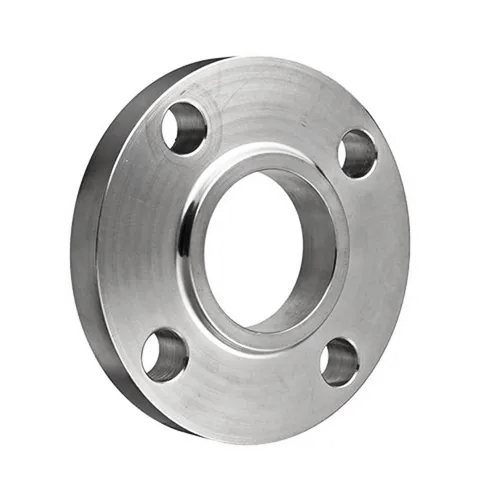

Flange outside diameter: 133.3mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 133.3mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 155.4mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 155.4mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 165.1mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 33.2mm (Y)
Pitch Circle Diameter (PCD): 127.0mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 61.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 165.1mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 33.2mm (Y)
Pitch Circle Diameter (PCD): 127.0mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 61.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 38.1mm (Y)
Pitch Circle Diameter (PCD): 149.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 74.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 38.1mm (Y)
Pitch Circle Diameter (PCD): 149.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 74.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 42.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 42.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 254.0mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 47.7mm (Y)
Pitch Circle Diameter (PCD): 200.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 116.0mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 254.0mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 47.7mm (Y)
Pitch Circle Diameter (PCD): 200.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 116.0mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 279.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 50.8mm (Y)
Pitch Circle Diameter (PCD): 234.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 279.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 50.8mm (Y)
Pitch Circle Diameter (PCD): 234.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 317.5mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 52.3mm (Y)
Pitch Circle Diameter (PCD): 269.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 317.5mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 52.3mm (Y)
Pitch Circle Diameter (PCD): 269.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 381.0mm (O)
Flange thickness: 41.1mm (C)
Flange hub height: 61.9mm (Y)
Pitch Circle Diameter (PCD): 330.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 381.0mm (O)
Flange thickness: 41.1mm (C)
Flange hub height: 61.9mm (Y)
Pitch Circle Diameter (PCD): 330.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 520.7mm (O)
Flange thickness: 50.8mm (C)
Flange hub height: 73.1mm (Y)
Pitch Circle Diameter (PCD): 450.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 31.7mm diameter
Bore Diameter: 327.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 520.7mm (O)
Flange thickness: 50.8mm (C)
Flange hub height: 73.1mm (Y)
Pitch Circle Diameter (PCD): 450.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 31.7mm diameter
Bore Diameter: 327.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 514.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 514.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 647.7mm (O)
Flange thickness: 57.1mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 571.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 410.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 647.7mm (O)
Flange thickness: 57.1mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 571.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 410.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 711.2mm (O)
Flange thickness: 60.4mm (C)
Flange hub height: 88.9mm (Y)
Pitch Circle Diameter (PCD): 628.6mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 461.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 711.2mm (O)
Flange thickness: 60.4mm (C)
Flange hub height: 88.9mm (Y)
Pitch Circle Diameter (PCD): 628.6mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 461.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 774.7mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 95.2mm (Y)
Pitch Circle Diameter (PCD): 685.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 513.0mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 774.7mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 95.2mm (Y)
Pitch Circle Diameter (PCD): 685.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 513.0mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 914.4mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 812.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 41.1mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 914.4mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 812.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 41.1mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
