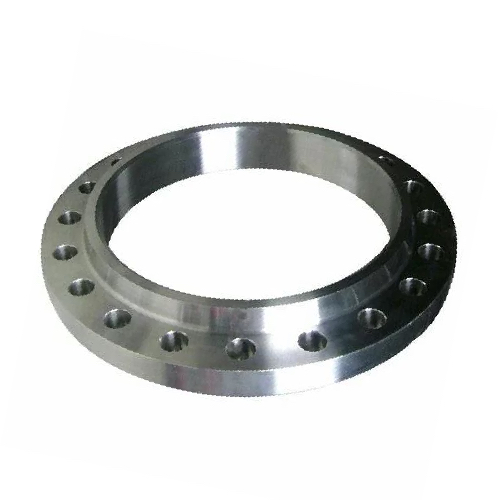

DN500 (20" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304

DN500 (20" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-500-RF-SOB-ASA600-304
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
232.0 KG
https://www.integraflow.co.uk/web/image/product.template/18119/image_1920?unique=292fe87
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 232.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 812.8mm (O)
Flange thickness: 88.9mm (C)
Flange hub height: 127.0mm (Y)
Pitch Circle Diameter (PCD): 723.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 44.4mm diameter
Bore Diameter: 513.0mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-500-RF-SOB-ASA600-304

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
