  3. DN65 (2"1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Website List 200 (IGF)

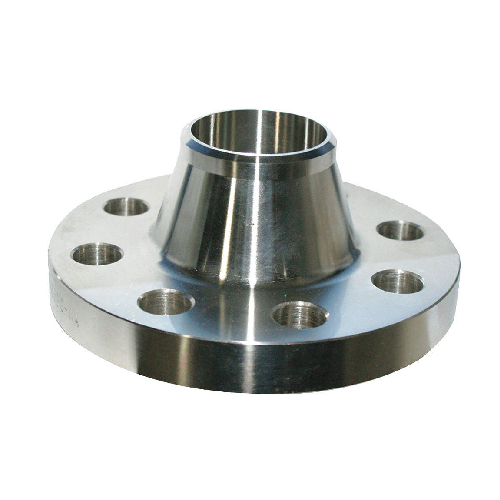

DN65 (2"1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304

DN65 (2"1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-65-RF-WN-S80-300-304
Size (Inch)
2"
Outside Diameter (mm)
73.00mm
Weight
5.4 KG
https://www.integraflow.co.uk/web/image/product.template/18339/image_1920?unique=292fe87
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 5.40 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-65-RF-WN-S80-300-304

Specifications

Size (Inch) 2"
Outside Diameter (mm) 73.00mm
