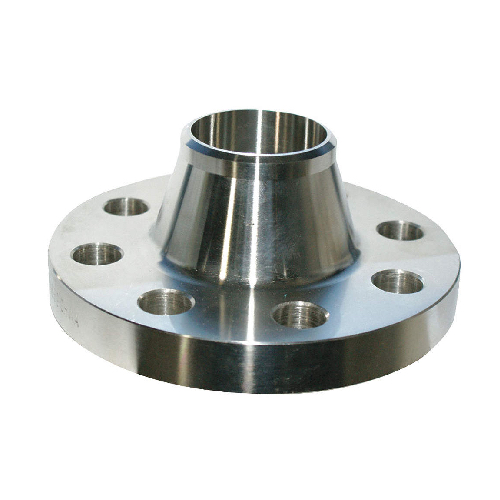

DN80 (3" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

DN80 (3" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-80-RF-WN-S10-300-304
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
7.4 KG
https://www.integraflow.co.uk/web/image/product.template/18361/image_1920?unique=d4da88c
(0 review)

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Contact us for pricing

(£ 0.00 / each)
Product details
Weight 7.40 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Internal Reference: SS-NB-FLA-80-RF-WN-S10-300-304

Specifications

Size (Inch) 3"
Outside Diameter (mm) 88.90mm
