Product Information
%20SOCKET%20WELD%203000%23%20ROUND%20CAP%20END%20SS%20316?unique=4e89d3d)

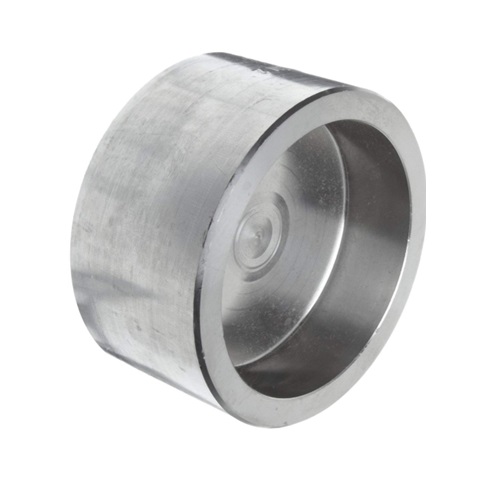

DN15 (1/2" NB) SOCKET WELD 3000# ROUND CAP END SS 316
Both sides: 1/2" Socket Weld
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless 316
Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799
Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*
Alternative terminology:
Forged, Stainless, Socket Weld, Cap end, Blanking Cap, Termination Cap, Stop End.
Internal Reference:
SS-NB-SW-3K-CAP-15-316
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 1/2" |
| Product Category | Fitting |
| Outside Diameter (mm) | 21.30mm |
| Material | Stainless Steel 316 |
| Connection A | Socket Weld |
| Connection B | Socket Weld |
| Pressure Class | 3000 psi |
| Product Type | Cap end |
| Tags | |
|---|---|
| Tags | |
