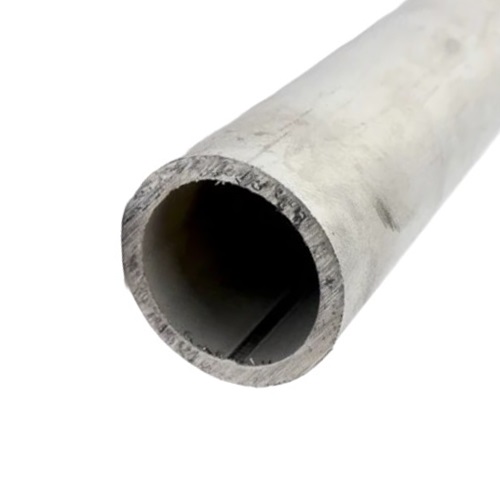

DN8 (1/4" NB) SCHEDULE 40s STAINLESS WELDED PIPE 316
Outside Diameter (OD): 13.72mm
Wall Thickness (WT): 2.20mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 0.64
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.
Internal Reference:
SS-PIP-8-S40-316-WEL
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Pipework Standard | Nominal Bore |
| Size (Inch) | 1/4" |
| Outside Diameter (mm) | 13.72mm |
| Wall Thickness | 2.20mm |
| Pressure Class | Schedule 40 |
| Connection A | Plain Weld End |
| Material | Stainless Steel 316 |
| Product Type | Pipe |
| Construction | Welded |
| Product Category | Pipe |
