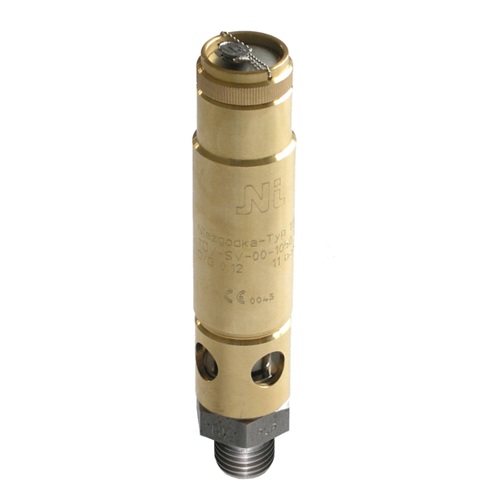

DN15 (1/2" NB) NPT NIEZGODKA TYPE 110 OPEN DISHCARGE SAFETY VALVE
Suits an outside diameter (OD) of: 21.3mm
Thread: 1/2" NPT Male
Set pressure range: 0.03 to 84 Barg (Depending on size)
Disc: Viton or Nylon
Body Material: Brass
Inlet Nozzle Material: Satainless Steel
Orifice: 8, 10 or 12.5mm
Applications:
Non-Toxic Steam & Gases
Desgin:
TUV
See order notes for valves set pressure & application information.
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
Documents
Internal Reference:
VAL-SAF-15-NPT-NG
Specifications
| Size (Inch) | 1/2" |
| Outside Diameter (mm) | 21.30mm |
