Suits an outside diameter (OD) of: 323.8mm
Body Material: Cast Iron
Disc Material: 316 Stainless
Connection: Wafer Flange (PN6, PN10, PN16, Table D/E & ANSI 150)
Liner: EPDM
Position Indicator: Included

Applications:
HVAC, Mechanical, Heating and cooling, Water Treatment, Waste Water, Chemicals.

Alternative terminology:
Isolation Valve, Gearbox Operated, Handwheel, Butterfly, Wafer Pattern

Part of our Isolation and Valves Range

Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Flat Face (RF): 365mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Raised Face (RF): 365mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Raised Face (RF): 365mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Length: 254.0mm
Schedule: STD
Weight: 14.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Length: 254.0mm
Schedule: XS
Weight: 17.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 4.55mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 4.55mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 28.2kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to End: 254.0mm
Schedule: SCH20
Weight: 43.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.3mm
Length: 254.0mm
Schedule: SCH20
Weight: 10.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to Face: 305.0mm
Schedule: SCH20
Weight: 41.77kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 49.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

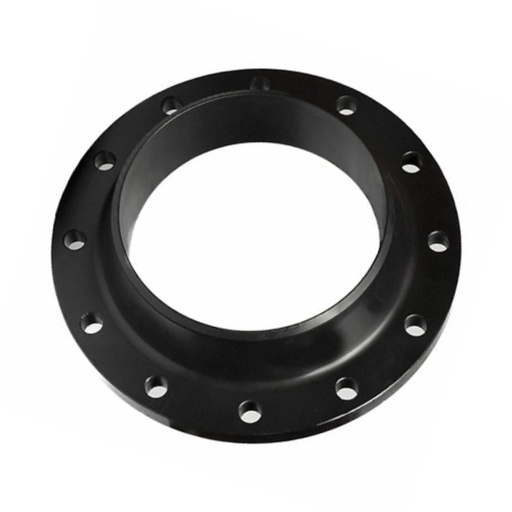

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Hub length (X): 365.0mm
Neck height (A): 323.8mm
Pitch circle diameter (K): 431.8mm
Hub base diameter (Y): 114.3mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to Face: 305.0mm
Schedule: STD
Weight: 26.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 10.31mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (True SCH40) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 79.73 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 10.31mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 79.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 9.53mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 80.9kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to Face: 305.0mm
Schedule: XS
Weight: 35.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to End: 254.0mm
Schedule: STD
Weight: 59.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to Face: 190.0mm
Schedule: STD
Weight: 26.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 9.52mm
Centre to Face: 457.0mm
Schedule: STD
Weight: 53.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI ASME B36.10 / B36.19 EN10217-2
Schedule: Standard Weight
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 73.86 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 323.8mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 73.86 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Hub length (X): 365.0mm
Neck height (A): 323.8mm
Pitch circle diameter (K): 431.8mm
Hub base diameter (Y): 114.3mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: A106 B
Standards: ASTM / ANSI Schedule Extra Strong ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 96 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to End: 254.0mm
Schedule: XS
Weight: 75.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Suits an outside diameter (OD) of: 323.8mm
Material: MS Zinc Plated (BZP)
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 323.8mm
Material: Mild Steel (Galvanised))
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 323.8mm
Material: Stainless Steel 304 (A2)
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 323.8mm
Material: Stainless Steel 316 (A4)
Thread: M16
Comes with 2x Nuts

Suits an outside diameter (OD) of: 323.9mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

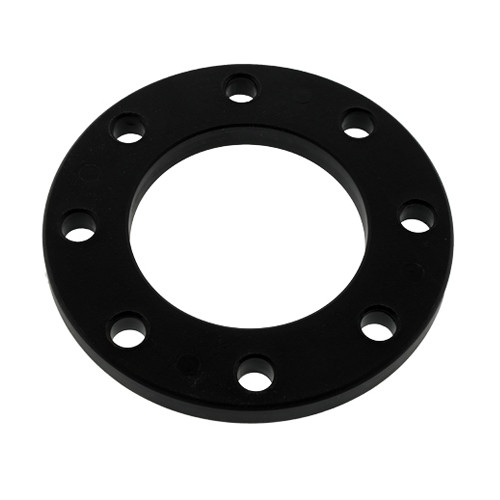

DN300 Backing Flange with steel insert
Suits a pipe diameter of: 315mm
Flange Rating: PN10
Connection: Flanged
Pressure Rating: PN10
Material: Polypropylene (PP) with steel insert

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Hub length (X): 365.0mm
Neck height (A): 323.8mm
Pitch circle diameter (K): 431.8mm
Hub base diameter (Y): 114.3mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 445mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 395mm (K)
Hub height: 46mm (H1)
Neck diameter: 350mm (N2)
Raised Face Diameter: 370mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 460mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 28mm
Pitch Circle Diameter (PCD): 410mm (K)
Hub height: 46mm (H1)
Neck diameter: 350mm (N2)
Raised Face Diameter: 378mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 26.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 485mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 34mm
Pitch Circle Diameter (PCD): 430mm (K)
Hub height: 67mm (H1)
Neck diameter: 364mm (N2)
Raised Face Diameter: 395mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 515mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 42mm
Pitch Circle Diameter (PCD): 450mm (K)
Hub height: 67mm (H1)
Neck diameter: 380mm (N2)
Raised Face Diameter: 410mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 33mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 515mm (D)
PCD: 450mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 515mm (D)
PCD: 450mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 515mm (D)
PCD: 450mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 440mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 395mm (K)
Hub height: 44mm (H1)
Neck diameter: 355mm (N2)
Raised Face Diameter: 412mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side One suits an outside diameter (OD) of: 323.9mm
Side One wall thickness (WT): 9.53mm

Side Two suits an outside diameter (OD) of: 168.3mm
Side Two wall thickness (WT): 7.11mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 203mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 324 X 141mm
Wall Thickness: 9.53 X 6.55mm
Length: mm

Outside Diameter (OD): 324 X 141mm
Wall Thickness: 9.53 X 6.55mm
Length: mm

Outside Diameter (OD): 324 X 168mm
Wall Thickness: 9.53 X 7.11mm
Length: 203mm

Outside Diameter (OD): 324 X 168mm
Wall Thickness: 9.53 X 7.11mm
Length: mm

Outside Diameter (OD): 324 X 219mm
Wall Thickness: 9.53 X 8.18mm
Length: mm

Outside Diameter (OD): 324 X 219mm
Wall Thickness: 9.53 X 8.18mm
Length: 203 mm

Outside Diameter (OD): 324 X 273mm
Wall Thickness: 9.53 X 9.27mm
Length: mm

Outside Diameter (OD): 324 X 273mm
Wall Thickness: 9.53 X 9.27mm
Length: mm

Outside Diameter (OD): 324 x 273mm
Wall Thickness (Run x Branch): 9.53 x 9.27mm
Centre to End (Run): 254mm
Centre to End (Branch): 216mm
Schedule: STD
Weight: 63.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 324 x 273mm
Wall Thickness (Run x Branch): 12.70 x 12.70mm
Centre to End (Run): 254mm
Centre to End (Branch): 216mm
Schedule: XS
Weight: 74.82kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Threaded: 1.1/4" SW (Socket Weld) Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Stainless Steel

Outside diameter: 35mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.26kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Hub height (X): 425.4mm
Length through hub (A): 355.6mm
Bolt circle diameter (K): 444.5mm
Overall height (Y): 142.7mm
Raised face thickness (RF): 1.5mm
Bore (B): 412.7mm
Number of bolt holes: 20
Bolt hole diameter: 31.7mm
Approx. weight: 88.0kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 533.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 476.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 533.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 476.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 533.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 476.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 749.3mm
Flange thickness (C): 133.3mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 749.3mm (O)
Flange thickness: 133.3mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 60.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 749.3mm (O)
Flange thickness: 133.3mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 60.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 749.3mm (O)
Flange thickness: 133.3mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 60.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 514.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 514.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 514.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 603.2mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 527.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 603.2mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 527.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 38.1mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 603.2mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 527.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 38.1mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 603.2mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 527.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 38.1mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits Flange Size: DN350 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
