Flange OD (D): 1255mm
Drilling (No. x Bolt Hole x L): 28 x M39 x 42mm
Pitch circle diameter (K): 1170mm
Flange thickness (C1): 90mm
Raised face diameter (D1): 1080mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C4)
Diameter of Flat Face (RF): 1090mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 1090mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 1090mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 1090mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1230mm (D)
PCD: 1160mm (K)
Bolt Holes: 28 off 36mm diameter (L)
Flange Thickness: 70mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1230mm (D)
PCD: 1160mm (K)
Bolt Holes: 28 off 36mm diameter (L)
Flange Thickness: 70mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1230mm (D)
PCD: 1160mm (K)
Bolt Holes: 28 off 36mm diameter (L)
Flange Thickness: 70mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 1255mm (D)
Flange inside diameter: 1022.0mm (B1)
Flange thickness (C2): 59mm
Pitch Circle Diameter (PCD): 1170mm (K)
Hub height: 1072mm (H1)
Neck diameter: 16mm (N2)
Raised Face Diameter: 5mm (d1)
Height of Raised Face: 28mm (f1)
Bolt Holes: M39 off 362.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1255mm (D)
PCD: 1170mm (K)
Bolt Holes: 28 off 42mm diameter (L)
Flange Thickness: 90mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1255mm (D)
PCD: 1170mm (K)
Bolt Holes: 28 off 42mm diameter (L)
Flange Thickness: 90mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1255mm (D)
PCD: 1170mm (K)
Bolt Holes: 28 off 42mm diameter (L)
Flange Thickness: 90mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Suits a 104mm SMS Union
Material: Stainless
SMS Union: Part 2 of 4

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Flange OD (D): 1455mm
Drilling (No. x Bolt Holes x L): 32 x M36 x 39mm
Pitch circle diameter (K): 1380mm
Flange thickness (C4): 83mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 1485mm
Drilling (No. x Bolt Hole x L): 32 x M45 x 48mm
Pitch circle diameter (K): 1390mm
Flange thickness (C1): 98mm
Raised face diameter (D1): 1295mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C4)
Diameter of Flat Face (RF): 1295mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 3.1 BS EN 10204 Material Certification


Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1455mm (D)
PCD: 1380mm (K)
Bolt Holes: 32 off 36mm diameter (L)
Flange Thickness: 83mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1455mm (D)
PCD: 1380mm (K)
Bolt Holes: 32 off 36mm diameter (L)
Flange Thickness: 83mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1455mm (D)
PCD: 1380mm (K)
Bolt Holes: 32 off 36mm diameter (L)
Flange Thickness: 83mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1485mm (D)
PCD: 1390mm (K)
Bolt Holes: 32 off 48mm diameter (L)
Flange Thickness: 98mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1485mm (D)
PCD: 1390mm (K)
Bolt Holes: 32 off 48mm diameter (L)
Flange Thickness: 98mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1485mm (D)
PCD: 1390mm (K)
Bolt Holes: 32 off 48mm diameter (L)
Flange Thickness: 98mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside diameter: 129mm
Wall Thickness: 2.0mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 7.03kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length

Threaded both sides: 5" BSPT Male x Male
Suits an outside diameter (OD) of: 139.7mm
Overall Length: 110mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Suits a 5" Universal Clamp Union
Material: Stainless 316
Universal Clamp Union: Part 1 of 3

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a 5" Universal Clamp Union
Material: Stainless 316


Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Outside Diameter (OD): 5" / 129mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Cap, Blank, Stop end, Dome Cap, Weld Cap

Outside Diameter (OD): 129mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Lateral 45 Degree Hygienic Tee

Outside Diameter (OD): 129mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Pulled Equal Tee, Equal Tee

Outside Diameter (OD): 129mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Seagull Hygienic Tee

Outside Diameter (OD): 129mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Sweeping Swept Hygienic Tee, Swept Hygienic Tee

Outside Diameter (OD): 129mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Y Piece Hygienic Tee

Side One Suits an outside diameter (OD) of: 129mm
Side Two Suits an outside diameter (OD) of: 2" / 50.8mm
Wall thickness (WT): 2mm
Material: Stainless
Grade: 316
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Eccred, Ecc Red, Reducing Cone, 129mm x 2"

Side One Suits an outside diameter (OD) of: 129mm
Side Two Suits an outside diameter (OD) of: 3" / 76.2mm
Wall thickness (WT): 2mm
Material: Stainless
Grade: 316
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Eccred, Ecc Red, Reducing Cone, 129mm x 3"

Side One Suits an outside diameter (OD) of: 129mm
Side Two Suits an outside diameter (OD) of: 4" / 101.6mm
Wall thickness (WT): 2mm
Material: Stainless
Grade: 316
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Eccred, Ecc Red, Reducing Cone, 129mm x 4"

Threaded: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Hollow, Termination, Blanking, Figure 147, Screwed, Fittings.

Threaded: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Solid, Termination, Blanking, Figure 147, Screwed, Fittings.

Threaded: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Hollow, Termination, Blanking, Figure 147, Screwed, Fittings.

Threaded: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Plug, Solid, Termination, Blanking, Figure 147, Screwed, Fittings.

1/2" BSP BALL FLOAT STEAM TRAP VALVE
SG IRON
HORIZONTAL CONNECTIONS
RIGHT TO LEFT FLOW
ST.ST WORKING INTERNALS
INTEGRAL AUTOMATIC AIR VENTING FACILITY

Thread: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Stainless Steel

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.11mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 1.02
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside diameter: 19mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.26kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

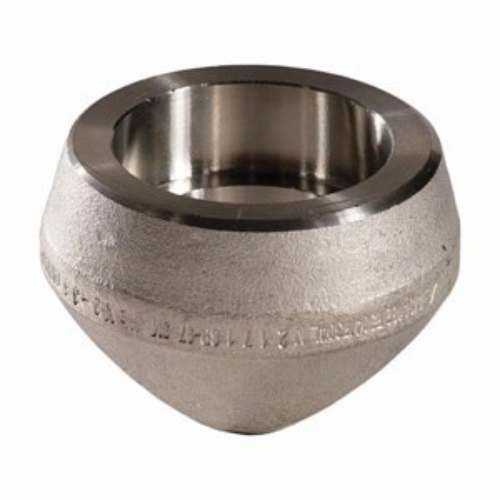

Socket Weld: 1/2" NB
Suits an outside diameter (OD) of: 21.3mm
Sits on an 60.3mm diameter for welding
Material: Stainless Steel
Grade: 316/L
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: A105N
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 165.1mm Wall Thickness (WT): 5.4mm Material: Mild Steel / Carbon Steel Pipe Grade: S235 Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2 Standard Length: 6.4 meters Weight Per Meter: 21.3kg Construction: Welded Finish: Self Colour Ends: Grooved Both Ends Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Suits a 6" Universal Clamp Union
Material: Stainless 316


Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a 6" Universal Clamp Union
Material: Stainless 316
Universal Clamp Union: Part 1 of 3

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Best suited for a 6" / 154mm outside diameter
Clamp Material: Stainless
Grade: 304
M10 Bossed Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

Outside Diameter (OD): 6" / 154mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Cap, Blank, Stop end, Dome Cap, Weld Cap

Outside Diameter (OD): 154mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Lateral 45 Degree Hygienic Tee

Outside Diameter (OD): 154mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Seagull Hygienic Tee

Outside Diameter (OD): 154mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Sweeping Swept Hygienic Tee, Swept Hygienic Tee

Outside Diameter (OD): 154mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Y Piece Hygienic Tee

Best suited for a 6" / Metric / 152mm outside diameter
Clamp Material: Stainless
Grade: 304
Plain Weld End Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

Side One Suits an outside diameter (OD) of: 154mm
Side Two Suits an outside diameter (OD) of: 2" / 50.8mm
Wall thickness (WT): 2mm
Material: Stainless
Grade: 316
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Eccred, Ecc Red, Reducing Cone, 154mm x 2"

Run outside Diameter (OD): 154mm
Branch outside Diameter (OD): 2.1/2" / 63.5mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Pulled Reducing Tee, Reducing Branch Tee, 154mm x 2.1/2"

Side One Suits an outside diameter (OD) of: 154mm
Side Two Suits an outside diameter (OD) of: 2" / 50.8mm
Wall thickness (WT): 2mm
Material: Stainless
Grade: 316
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Eccred, Ecc Red, Reducing Cone, 154mm x 2"

Run outside Diameter (OD): 154mm
Branch outside Diameter (OD): 3" / 76.2mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Pulled Reducing Tee, Reducing Branch Tee, 154mm x 3"

Side One Suits an outside diameter (OD) of: 154mm
Side Two Suits an outside diameter (OD) of: 4" / 101.3mm
Wall thickness (WT): 2mm
Material: Stainless
Grade: 316
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Eccred, Ecc Red, Reducing Cone, 154mm x 4"

Run outside Diameter (OD): 154mm
Branch outside Diameter (OD): 4" / 101.6mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Pulled Reducing Tee, Reducing Branch Tee, 154mm x 4"

Threaded: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Construction: 2 Piece
Body Material: 316 Stainless
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Thread: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Sits on an 219.1mm diameter for welding
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European

Alternative terminology:
Threadolet, Thred-o-let, Olet, Weld on, Boss

Socket Weld: 3/4" NB
Suits an outside diameter (OD) of: 26.9mm
Sits on an 88.9mm diameter for welding
Material: Stainless Steel
Grade: 316/L
Construction: Forged (From Bar)
Certification Available: 3.1 BS EN 10204 Material Certification

Buttweld: 3/4" NB
Suits an outside diameter (OD) of: 26.9mm
Sits on an 88.9mm diameter for welding
Material: Stainless
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

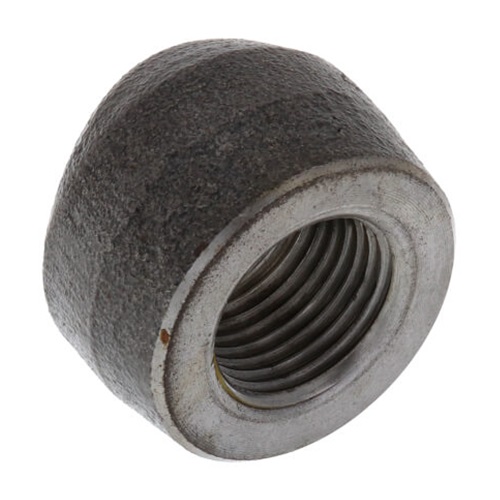

Thread: 3/4" BSPT Female
Suits an outside diameter (OD) of: 26.9mm
Sits on an 88.9mm diameter for welding
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European

Alternative terminology:
Threadolet, Thred-o-let, Olet, Weld on, Boss

Outside Diameter (OD): 219.1mm
Wall Thickness: 6.35mm
Centre to Face: 127.0mm
Schedule: SCH20
Weight: 8.37kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Suits a 8" Universal Clamp Union
Material: Stainless 316


Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a 8" Universal Clamp Union
Material: Stainless 316
Universal Clamp Union: Part 1 of 3

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Best suited for 204mm outside diameter
Clamp Material: Stainless
Grade: 304
M10 Bossed Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

Outside Diameter (OD): 8" / 204mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Cap, Blank, Stop end, Dome Cap, Weld Cap

Best suited for a 8" / Metric / 204mm outside diameter
Clamp Material: Stainless
Grade: 304
Plain Weld End Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

Side One Thread: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316
This adaptor is welded onto process tube to allow connection of process instrumentation. Welding adapter for process sensors for use in industrial and sanitary applications and robust stainless design for use in harsh industrial environments

Standards:
Threaded, Instrument, Hygienic, Dairy & Sanitary

Connection: 1" Buttweld
Suits an outside diameter (OD) of: 33.4m
Sits on an 273mm diameter for welding
Material: Forged Steel
Grade: A105N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Weldolet, Weld-o-let, Olet, Weld on, Boss

Outside Diameter (OD): 273.9mm
Wall Thickness: 12.7mm
Centre to Face: 159.0mm
Schedule: XS
Weight: 24.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 273.9mm
Wall Thickness: 6.35mm
Centre to Face: 159.0mm
Schedule: SCH20
Weight: 13.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 273.9mm
Wall Thickness: 12.7mm
Centre to Face: 381.0mm
Schedule: XS
Weight: 48.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Suits a 10" Universal Clamp Union
Material: Stainless 316


Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a 10" Universal Clamp Union
Material: Stainless 316
Universal Clamp Union: Part 1 of 3

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Best suited for a 10" / 254mm outside diameter
Clamp Material: Stainless
Grade: 304
M10 Bossed Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

Best suited for a 10" / Metric / 254mm outside diameter
Clamp Material: Stainless
Grade: 304
Plain Weld End Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to Face: 190.0mm
Schedule: SCH20
Weight: 19.85kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to Face: 457.0mm
Schedule: SCH20
Weight: 37.46kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to Face: 190.0mm
Schedule: XS
Weight: 35.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to Face: 457.0mm
Schedule: XS
Weight: 70.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Suits a 12" Universal Clamp Union
Material: Stainless 316


Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a 12" Universal Clamp Union
Material: Stainless 316
Universal Clamp Union: Part 1 of 3

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Best suited for 12" / 304mm outside diameter
Clamp Material: Stainless
Grade: 304
M10 Bossed Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

Best suited for a 12" / Metric / 304mm outside diameter
Clamp Material: Stainless
Grade: 304
Plain Weld End Connection
Insert Material: Blue Lined Rubber

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Clip, Clamp, Support, Bracket, Anti Vibration

1.1/4" (DN32) X 100MM LONG
BSPT Barrel Nipple (Extended Lengths) 150LB 316
Manufactured to ISO 4144.
Maximum working pressure 750psi (50 bar).
BSP threads to ISO 7-1.
Suitable applications: Hot and Cold Water, Oil, Gas and other medium

Side One Thread: 1.1/4" BSPT Male
Side One Suits an outside diameter (OD) of: 42.4mm
Side Two Plain: 1.1/4" Buttweld
Side Two Suits an outside diameter (OD) of: 42.4m
Material: Stainless
Grade: 316
100mm Long
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Thread: 1.1/4" BSPT Male x BSPP Female
Material: Stainless
Grade: 316
Flat Face
Comes with PTFE Seal

Alternative terminology:
Male x Female, MF, MXF, Union, Threaded, Screwed, Street Union

DN32 Sch 40 106 GrB A/SA 333-6 X52 PSL1 SR Seamless Pipe
