Part of our Flanges and Flanged Connections Range

85mm OD x 2mm thick
DIN11852 90° Long Bend 316 Pol
Series 2,
Polished Ra 0.8um

Suits an outside diameter (OD) of: 85mm
Material: Stainless
Grade: 316
Standards: DIN11864 PN10
Flange Face: Liner
Bolt Holes: 8 off to suit M10 Bolts
PCD: 112mm
Flange Diameter: 133mm
Inside diameter: 81mm

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Aseptic, DIN Flanges, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.

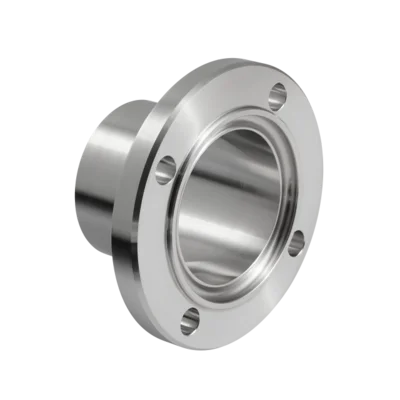

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 85mm
Material: Stainless
Grade: 316
Standards: DIN11864 PN10
Flange Face: Nut (Counterpart)
Bolt Holes: 8 off to suit M10 Bolts
PCD: 112mm
Flange Diameter: 133mm
Inside diameter: 81mm

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Aseptic, DIN Flanges, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.

Part of our Flanges and Flanged Connections Range

DN80
Material: SS
Grade: 316
Standards: EN1092-1
Flange Thickness: 12.7mm

Outside Diameter (OD): 89 X 42mm
Wall Thickness: 5.49 X 3.56mm
Length: mm

Outside Diameter (OD): 89 X 48mm
Wall Thickness: 5.49 X 3.68mm
Length: mm

Outside Diameter (OD): 89 X 60mm
Wall Thickness: 5.49 X 3.91mm
Length: mm

Outside Diameter (OD): 89 X 73mm
Wall Thickness: 5.49 X 5.16mm
Length: mm

Outside Diameter (OD): 812.8mm
Wall Thickness: 12.7mm
Centre to Face: 502.0mm
Schedule: XS
Weight: 250.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 812.8mm
Wall Thickness: 12.7mm
Centre to Face: 1219.0mm
Schedule: XS
Weight: 502.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 102 X 48mm
Wall Thickness: 5.74 X 3.68mm
Length: mm

Outside Diameter (OD): 102 X 60mm
Wall Thickness: 5.74 X 3.91mm
Length: mm

Outside Diameter (OD): 102 X 73mm
Wall Thickness: 5.74 X 5.16mm
Length: mm

Outside Diameter (OD): 102 X 89mm
Wall Thickness: 5.74 X 5.49mm
Length: mm

Outside Diameter (OD): 914.4mm
Wall Thickness: 12.7mm
Centre to Face: 565.0mm
Schedule: XS
Weight: 282.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 914.4mm
Wall Thickness: 12.7mm
Centre to Face: 1372.0mm
Schedule: XS
Weight: 626.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Volume: 60 litre
Dimension: 380mm diameter x 830mm height
Maximum working pressure: 10.0 bar.
Pre charge pressure: 2.7 bar
Min./ max. working temperature (bladder): -10 / 100 °C.
Suitable for addition of glycol-based anti-freeze up to 50%.
In accordance with Pressure Equipment Directive 2014/68/EU.
Colour: Coated aluminium (RAL 9006).
Airfix P 60 complete with feet.

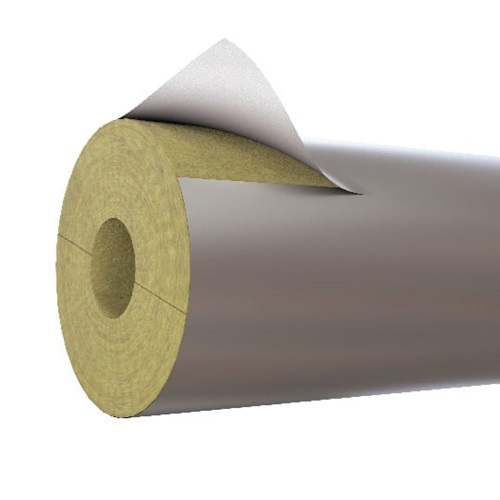

Suits an outside diameter of 304mm
Insulation thickness: 50mm
Length: 1.2 meter sections
Foil face thermal wool insulation
Coating: Foil

Suits an outside diameter of 304mm
Insulation thickness: 50mm
Length: 1.2 meter sections
Foil face thermal wool insulation
Coating: Foil

FSW - Next Day Priority Half Pallet (Up to 1200kg)

FSW - Next Day Priority Quarter Pallet (Up to 300kg)

FSW - Next Day Priority Pallet (Up to 150kg)

FSW - Next Day Priority Quarter Pallet (Up to 300kg)

FSW - Next Day Priority Quarter Pallet (Up to 300kg)

Bending Method: Lever
Former Material: Aluminium
Guide Material: Aluminium
Maximum Bend Angle:180°
Overall Length: 150mm
Tube Capacity: 12,15 & 22mm

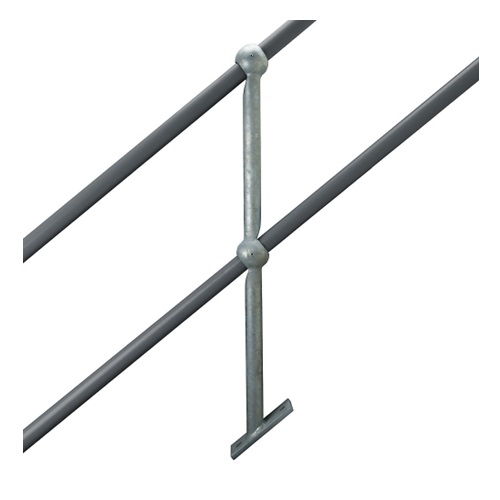

Raked Handrail Standard
Two-ball tubular standard
26.8° raked balls and base
900mm 34/63/34mm
GS4 Bases
Material: S275 JR
Finish: Galvanised ISO-1461:2009.

Handrail Clamp Galvanised Short Tee to suit 42.4mm OD Handrail
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key)
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect Two handrails together at a 90 degree angle allowing the tube to pass through the top run of the tee.

Handrail Clamp 90° Galvanised Elbow to suit 26.9mm OD Handrail
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key)
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect Two handrails together at a 90 degree angle.

Handrail Clamp 90° Galvanised Elbow to suit 33.4mm OD Handrail
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key)
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect Two handrails together at a 90 degree angle.

Handrail Clamp 90° Galvanised Elbow to suit 42.4mm OD Handrail
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key)
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect Two handrails together at a 90 degree angle.

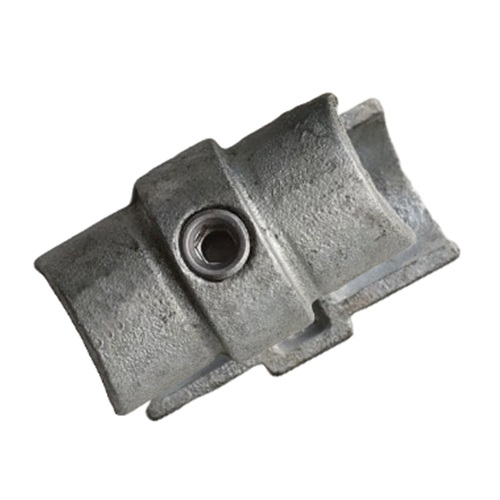

Handrail Clamp Galvanised internal straight connector / coupliong to suit 33.7mm OD Handrail
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key)
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect Two handrails together.

Handrail Clamp Galvanised internal straight connector / coupling to suit 42.4mm OD Handrail
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key)
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect Two handrails together.

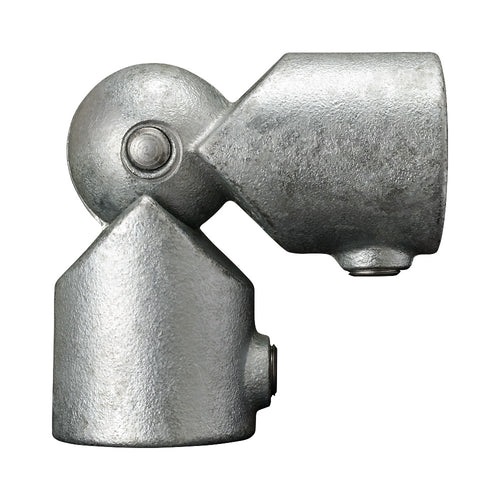

Handrail Clamp Galvanised adjustable 0-120° swivel elbow to suit 42.4mm OD Handrail
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key)
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect Two handrails together at variable angles of degree.

Handrail Clamp Single Mesh Clip to suit 33.4mm OD Handrail
Finish: Galvanised
Connection: Comes with fasteners to secure in place
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect a mesh panel to the handrail on one side.

Handrail Clamp Single Mesh Clip to suit 42.4mm OD Handrail
Finish: Galvanised
Connection: Comes with fasteners to secure in place
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect a mesh panel to the handrail on one side.

Handrail Clamp Double Mesh Clip to suit 33.4mm OD Handrail
Finish: Galvanised
Connection: Comes with fasteners to secure in place
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect a mesh panel to the handrail on both sides.

Handrail Clamp Double Mesh Clip to suit 42.4mm OD Handrail
Finish: Galvanised
Connection: Comes with fasteners to secure in place
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect a mesh panel to the handrail on both sides.

Handrail Clamp D Return end of rail bend to suit 42.4mm OD Handrail with 550mm Centres
Finish: Galvanised
Connection: Plain end to cut to length
Material: Mild Steel

Application:
For use on galvanised handrail systems to connect a mesh panel to the handrail on one side.

Handrail Clamp K40 Kickplate toe clamp to suit 42.4mm OD Handrail
Finish: Galvanised
Connection: Comes with grub screw to secure in place
Material: Malleable Iron

Application:
For use on galvanised handrail systems to connect kick plate board to the handrail standards.

Handrail Standard / Stanchion / Stick with Flat Base
Balls to suit a 33.7mm OD Handrail
Ball Size: 60mm Diameter
Ball centres: 550 x 550mm
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key Required)
Material: MS

Handrail Standard / Stanchion / Stick with Flat Base
Balls to suit a 42.4mm OD Handrail
Ball Size: 60mm Diameter
Ball centres: 550 x 550mm
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key Required)
Material: MS

Handrail Standard / Stanchion / Stick with Side Base
Balls to suit a 33.7mm OD Handrail
Ball centres 550 x 550mm
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key Required)
Material: MS

Handrail Standard / Stanchion / Stick with Side Base
Balls to suit a 42.4mm OD Handrail
Ball centres 550 x 550mm
Finish: Galvanised
Connection: Comes with Grub Screws (Allen Key Required)
Material: MS

Loctite 55 is a new, faster, more versatile pipe sealant which out-dates traditional tapes and hemp/paste combinations. It instantly seals (irrespective of ambient temperature) domestic and industrial pipe systems during assembly. Can be safely and confidently used with drinking or waste water (hot or cold), gas, compressed air, and industrial oils. Supplied in a handy, pocket sized, protective container complete with built in cutter. WRC listed for use with potable water.

Medium-strength, general purpose thread sealant for straight/straight and straight/taper threads and fittings. Fills the space between threaded parts and seals and locks at the same time.

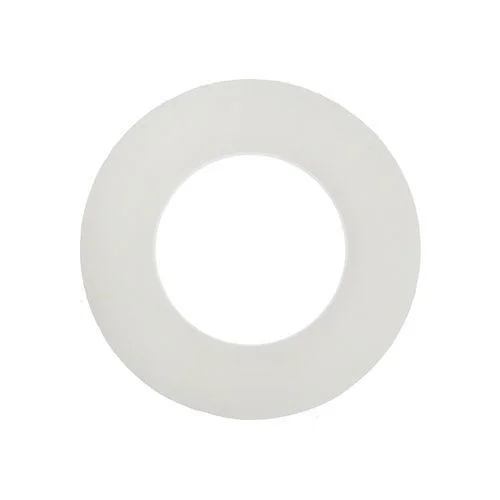

Flat washer to suit M10 Ø Bolt
Material:Nylon
Finish: Plain Natural
Washer Type: Form A

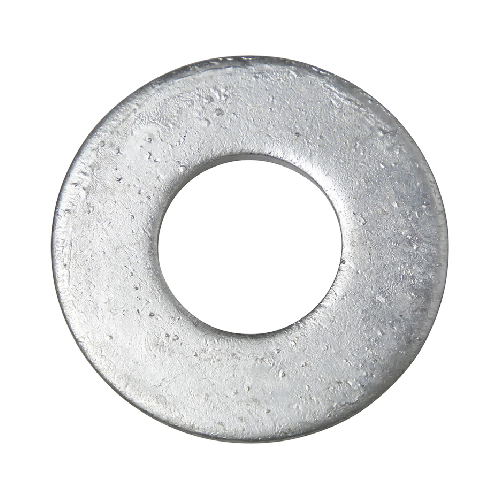

Flat washer to suit M10 Ø Bolt
Material: Mild Steel
Finish: Galvanised
Washer Type: Form A

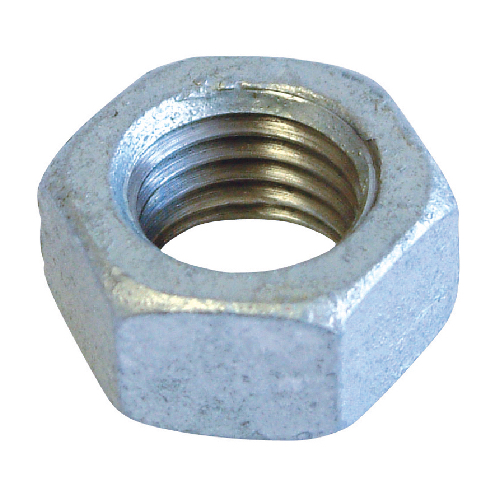

Full Nut to suit M10 Ø Bolt
Material: Mild Steel
Finish: Galvanised
Nut Type: Full Hex

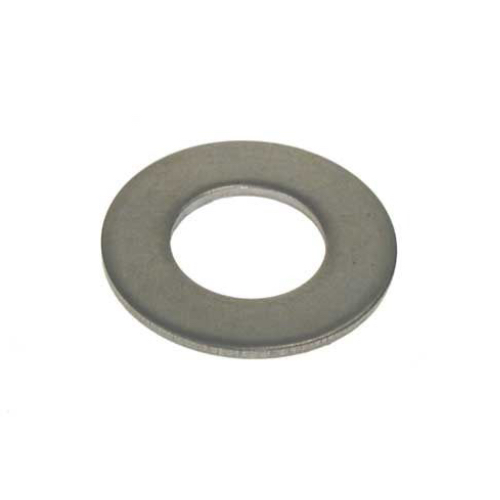

Flat washer to suit M10 Ø Bolt
Material: Stainless Steel
Grade: A4 / 316
Washer Type: Form A

Part of our Flanges and Flanged Connections Range

Full Nut to suit M10 Ø Bolt
Material: Stainless Steel
Grade: A4 / 316
Nut Type: Full Hex

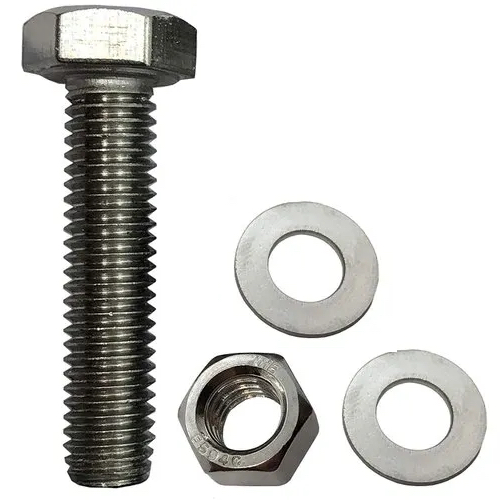

Bolt Size: M10
Bolt Length: 30mm
Material: Stainless Steel
Grade: A2 (304)
Complete with Nut & Double Flat Washers

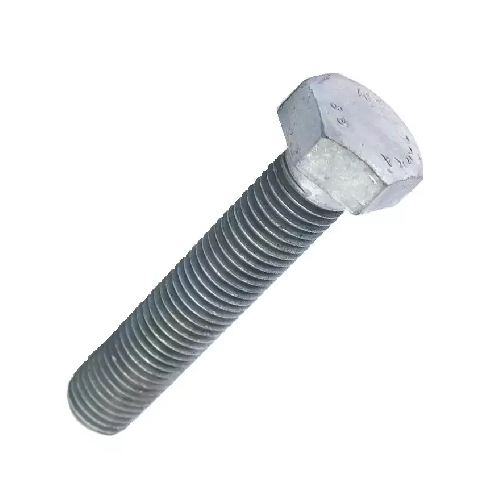

Bolt Diameter: M10
Bolt Length: 50mm
Material: Mild Steel
Grade: 8.8
Finish: Hot Dip Galvanised

Bolt Diameter: M10
Bolt Length: 50mm
Material: Stainless Steel
Grade: A4 / 316

Bolt Diameter: M10
Bolt Length: 70mm
Material: Mild Steel
Grade: 8.8
Finish: Hot Dip Galvanised

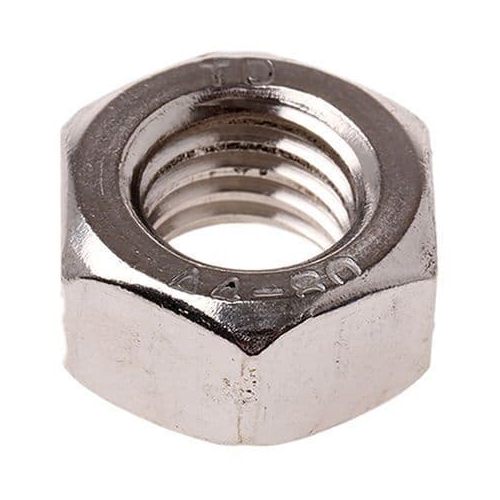

Full Nut to suit M12 Ø Bolt
Material: Stainless Steel
Grade: A2 / 304
Nut Type: Full Hex

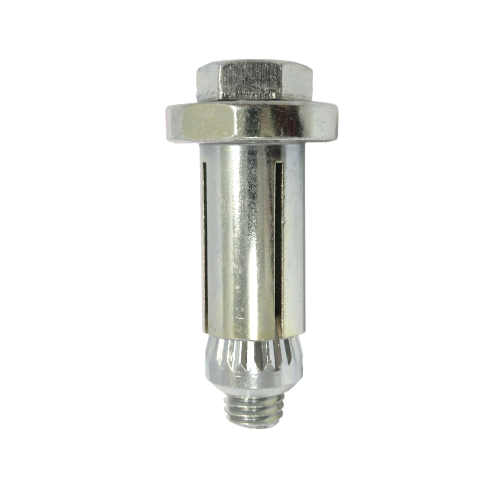

Thickness Range: 3mm to 25mm
Hole Diameter: 20mm
Spanner Size: 30mm
Socket Size: 19mm
Min Centres: 50mm
Min Clearance: 18mm

Finish: Bright Zinc Plated (BZP)

Tension Capacity: 10.5 kN
Shear Capacity: 15 kN
(Based on 5:1 Safety Factor)

Tightening Toque: 80Nm

C.E. Approval
ICC-ES Seismic Category A-F

Flat washer to suit M12 Ø Bolt
Material: Stainless Steel
Grade: A2 / 304
Washer Type: Form A

Part of our Flanges and Flanged Connections Range

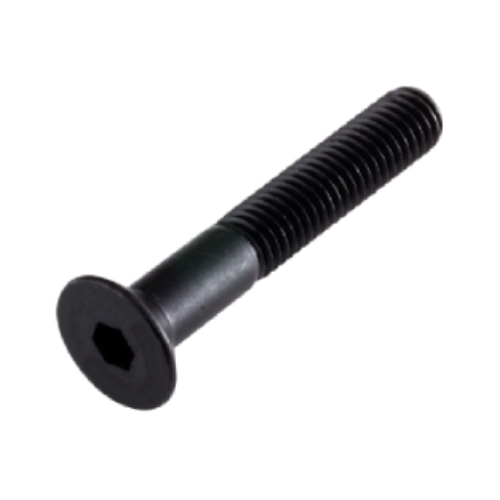

Thread diameter: M12 Metric Thread
Bolt Length: 160mm (Plus Head)
Material: Mild Steel
Finish: Self Colour (Black)
Screw only (No nuts or washers)
Threaded length: 36mm approx

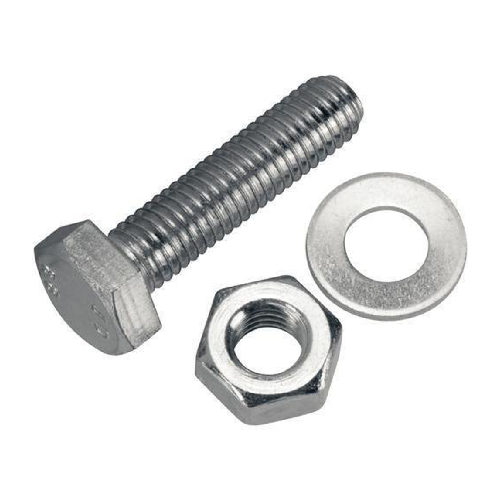

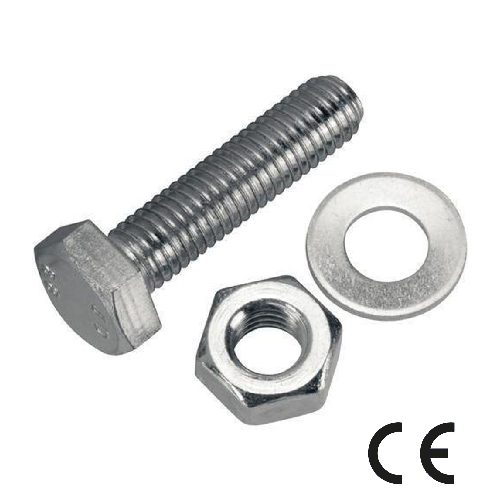

Thread diameter: M12 Metric Thread
Bolt Length: 35mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

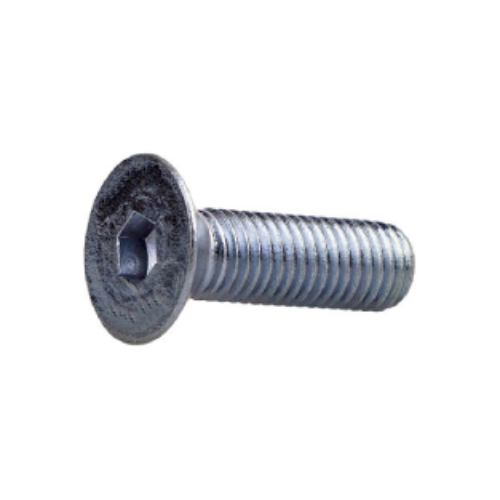

Thread diameter: M12 Metric Thread
Bolt Length: 35mm (Plus Head)
Material: Mild Steel
Finish: Bright Zinc Plated
Screw only (No nuts or washers)

Thread diameter: M12 Metric Thread
Bolt Length: 40mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

Bolt Size: M12
Bolt Length: 55mm
Material: Stainless Steel
Grade: A2 (304)
Complete with Nut & Double Flat Washers

Bolt Diameter: M12
Bolt Length: 55mm
Material: Stainless Steel
Grade: A2 / 304

Thread diameter: M16 Metric Thread
Bolt Length: 65mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer

Bolt Diameter: M12
Bolt Length: 80mm
Material: Stainless Steel
Grade: A4 / 316

A: M16
D: 90mm
B: 640mm
C: 564mm

Made to order 7-10 working days

Full Nut to suit M16 Ø Bolt
Material: Stainless Steel
Grade: A4 / 316
Nut Type: Full Hex

Flat washer to suit M16 Ø Bolt
Material: Mild Steel
Finish: Galvanised
Washer Type: Form A

M16 Threaded Stud Rod
Material: Mild Steel
Grade: 8.8
Finish: Hot Dip Galvanised
Length: 1 meters

Full Nut to suit M16 Ø Bolt
Material: Mild Steel
Finish: Galvanised
Nut Type: Full Hex

Full Nut to suit M16 Ø Bolt
Material: Nylon
Finish: Natural
Nut Type: Full Hex

Flat washer to suit M16 Ø Bolt
Material: Stainless Steel
Grade: A4 / 316
Washer Type: Form A

Part of our Flanges and Flanged Connections Range

M16 Threaded Stud Rod
Material: Stainless Steel
Grade: A4 / 316
Length: 1 meters

Bolt Diameter: M16
Bolt Length: 110mm
Material: Stainless Steel
Grade: A2 / 304

Bolt Diameter: M16 Bolt
Length: 150mm
Material: Mild Steel
Finish: Hot Dip Galvanised

Bolt Diameter: M16 Bolt
Length: 150mm
Material: Stainless Steel
Grade: A4 / 316

Thread diameter: M16 Metric Thread
Bolt Length: 40mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

Thread diameter: M16 Metric Thread
Bolt Length: 45mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

Thread diameter: M16 Metric Thread
Bolt Length: 50mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

Thread diameter: M16 Metric Thread
Bolt Length: 55mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

Bolt Diameter: M16
Bolt Length: 60mm
Material: Stainless Steel
Grade: A2 / 304

Thread diameter: M16 Metric Thread
Bolt Length: 60mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

Bolt Size: M16
Bolt Length: 65mm
Material: Stainless Steel
Grade: A2 (304)
Complete with Nut & Double Flat Washers

Thread diameter: M16 Metric Thread
Bolt Length: 65mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer

Bolt Diameter: M16
Bolt Length: 70mm
Material: Nylon
Finish: Natural

Bolt Size: M16
Bolt Length: 70mm
Material: Stainless Steel
Grade: A2 (304)
Complete with Nut & Double Flat Washers

Thread diameter: M16 Metric Thread
Bolt Length: 70mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer
C.E. Marked

Bolt Size: M16
Bolt Length: 75mm
Material: Stainless Steel
Grade: A2 (304)
Complete with Nut & Double Flat Washers

Thread diameter: M16 Metric Thread
Bolt Length: 75mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer

Thread diameter: M16 Metric Thread
Bolt Length: 80mm (Plus Hex Head)
Grade: 8.8 Mild Steel
Finish: Bright Zinc Plated (BZP)
XOX: Complete with Hex Full Nut and Washer

Bolt Diameter: M16
Bolt Length: 90mm
Material: Stainless Steel
Grade: A2 / 304

A: M16
D: 90mm
B: 640mm
C: 564mm

Made to order 7-10 working days

Flat washer to suit M20 Ø Bolt
Material: Stainless Steel
Grade: A4 / 316
Washer Type: Form A
