Flange outside diameter: 95mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 95mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Part of our Flanges and Flanged Connections Range

1/2" Ductile Iron Ball Valve – Direct Mount – Flanged PN16

Face to face: 115mm

Direct mount with lever


Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4..
Pressure rating: PN16.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

1/2" Ductile Iron Ball Valve – EN331 Gas Approved – Flanged PN16

Face to face: 115mm

Suitable for gas service.
EN331 approved design.

Flanged PN16 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: PN16.
Temperature range: -10°C to 70°C.

Part of our Isolation and Valves Range

Flanged to suit: DN15 (1/2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 130mm
Temperature Range: -10°C to 300°C
Certification: Available on request

Flanged both ends: 1/2" PN16
Suits an outside diameter (OD) of: 21.3mm
PCD: 65mm Ø (PN10, PN16, PN40)
Face to face: 115mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Flanged to suit: DN15 (1/2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN40
Face to Face: 130mm
Temperature Range: -50°C to 400°C
Certification: Available on request

Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Flat Face (RF): 40mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Raised Face (RF): 40mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Raised Face (RF): 40mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 80mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 55mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 80mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 55mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M10 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 80mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 55mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 80mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 55mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

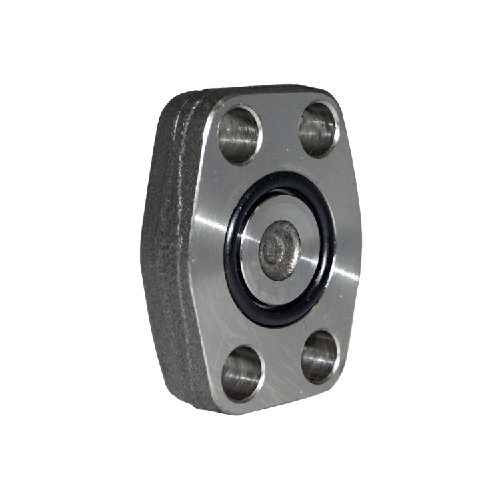

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel
Grade: 316
Standards: Hydraulic SAE Blind Flange 3000 Series
O-Ring: Included

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.11mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 1.02
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.11mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 1.02
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.11mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 1.02
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

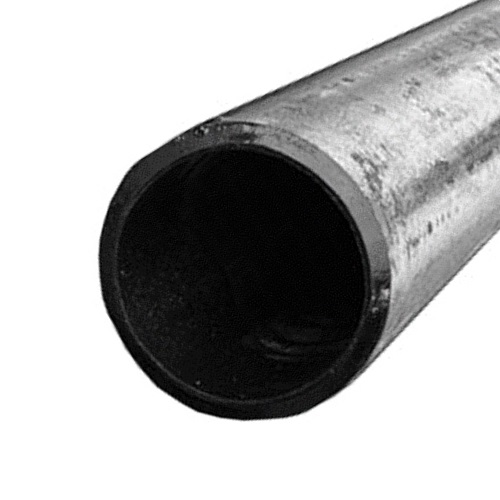

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 4.78mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 2.55 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.77mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 1.27 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.77mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 1.29
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.77mm
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 1.27kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.77mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 1.29kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 2.77mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 1.29
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 1.62 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 1.62 kg
Construction: Seamless
Finish: Hot Dip Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Hub length (X): 30.2mm
Neck height (A): 21.3mm
Pitch circle diameter (K): 60.4mm
Hub base diameter (Y): 47.7mm
Raised face height (RF): 15.7mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm (Sch80)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 1.62kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 21.3mm
Wall Thickness (WT): 3.73mm (Sch80)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 1.62kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Both sides: 1/2" Socket Weld
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Alternative terminology:
Forged, Stainless, Socket Weld, Coupling, Socket, Straight, Equal.

Both sides: 1/2" Socket Weld
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, Cap end, Blanking Cap, Termination Cap, Stop End.

Threaded: 1/2" NB Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: Socket Weld
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel
Grade: 316
Standards: Hydraulic SAE Counter Flange 3000 Series

Part of our Flanges and Flanged Connections Range

Side One: 1/2" Socket Weld
Side Two: 1/2" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, NPT, Adaptor, Coupling, Socket, Straight, Equal.

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 45°, 45 Deg, Weldable, Low Pressure, 150 psi

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 90°, 90 Deg, Weldable, Low Pressure, 150 psi

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel
Grade: 316

Thread: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316
Standards:
Nominal Bore, SW (Socket Weld), Weldable, Low Pressure, 150 psi

Alternative terminology:
SW Cap, Termination, Blanking Cap, Cap End

Connection: 1/2" SW
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Stainless Steel

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Stainless Steel

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Stainless Steel

Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Round Cap End, Blanking, Termination, Stainless Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blanking Cap End, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Equal Tee, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Carbon Steel

Connection: 1/2" Socket Weld (SW)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Half Coupling, Half Socket, Straight, Connector, Carbon Steel

Suits an outside diameter (OD) of: 21.3mm
Material: MS Zinc Plated (BZP)
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Mild Steel (Galvanised))
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel 304 (A2)
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless Steel 316 (A4)
Thread: M6
Comes with 2x Nuts

Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Thread: M6

Suits an outside diameter (OD) of: 21.3mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 21.3mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated

Part of our Isolation and Valves Range

Connection: 1/2" Male BSPP Threaded
Suits an outside diameter (OD): 21.3mm
Pressure: Atmospheric
Lower Body: Brass, nickel plated
Fixing Bolts: Brass, nickel plated
Seals: FKM
Sight Tube: Polycarbonate
Guard Tube: Polycarbonate
Top Cap: Brass
Adaptor: Brass
Tank Seals: Walkertite washer

Thread: ½" BSPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Stainless Steel

Thread: ½" BSPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

Thread: ½" BSPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: ½" BSPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ½" BSPT Male x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: ½" BSPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: ½" BSPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ½" BSPT Male x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: ½" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Stainless Steel

Thread: ½" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

Thread: ½" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: ½" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Threaded: ½" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ½" NPT Male x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: ½" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: ½" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ½" NPT Male x Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Length: 25.4mm
Schedule: STD
Weight: 0.03kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: STD
Weight: 0.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 15.9mm
Schedule: STD
Weight: 0.04kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: STD
Weight: 0.08kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
