Integraflow Store

Thread: ¼" NPT Female
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ¼" NPT Male x Female
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Steel
Grade: A105N
Construction: Forged Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Thread: ¼" NPT Female
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 45°, 45 Degree, Carbon Steel

Thread: ¼" NPT Female
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Carbon Steel

Thread: ¼" NPT Male x Female
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Steel Galvanised (HDG)
Grade: A105N
Construction: Forged Steel Galvanised (HDG)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Street Elbow, MXF, 90°, 90 Degree, Carbon Steel

Connection: ¼" SW (Socket Weld)
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

Side 1 threaded: 1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Mild Steel
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Reducing Bush, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Side 1 threaded: 1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 1/4" BSPP Female
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Reducing Bush, Threaded, Screwed, Figure 241, Fittings.

Side 1 threaded: 1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

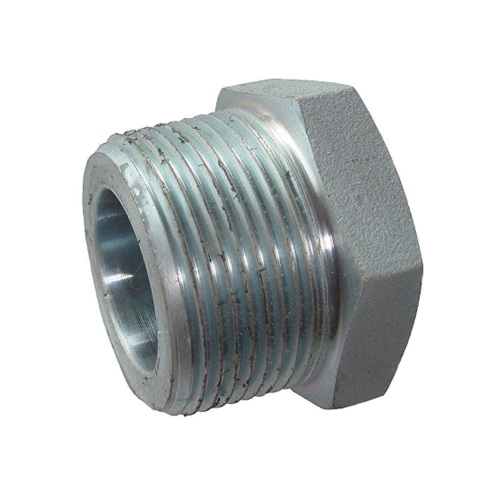

Side 1 threaded: 1/4" BSPT Male
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1/4" NPT Male
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1/4" NPT Male
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 1/4" NPT Male
Side 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

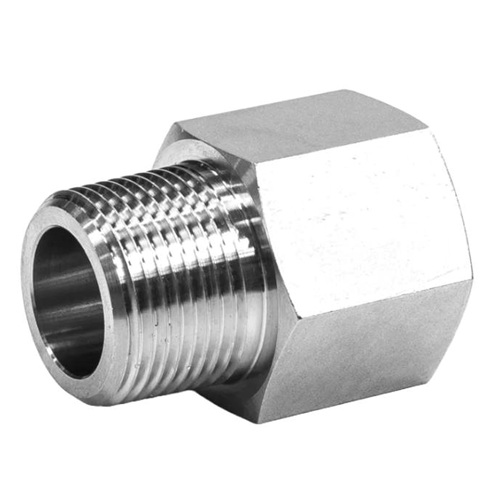

Thread Side 1: 1/4" NPT Male
Suits an outside diameter (OD) of: 13.7mm
Thread Side 2: 3/8" NPT Female
Suits an outside diameter (OD) of: 17.15mm
Material: Stainless
Grade: 316

Side 1 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255




Alternative terminology:
Reducing Heagon Nipple, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Side 1 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 1/4" BSPP Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 Thread: 1/4" BSPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Side 2 Thread: 1/8" BSPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Reducing Heagon Nipple, Malleable, Iron, Threaded, Screwed, Figure 245, Fittings.

Side 1 threaded: 1/4" BSPP Female
Suits 1 suits an outside diameter (OD) of: 13.72mm

Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Galvanised

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 1/4" BSPP Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.

Side 1 threaded: 1/4" BSPT Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Stainless steel
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Stainless steel, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Coupling, Reducing Socket, Coupling, Stainless Steel

Side 1 threaded: 1/4" BSPT Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 1/4" BSPT Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" BSPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 1/4" NPT Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Stainless steel
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Stainless steel, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Coupling, Reducing Socket, Coupling, Stainless Steel

Side 1 Thread: 1/4" NPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Side 2 Thread: 1/8" NPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 threaded: 1/4" NPT Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 1/4" NPT Female
Suits 1 suits an outside diameter (OD) of: 13.72mm
Side 2 threaded: 1/8" NPT Female
Side 2 suits suits an outside diameter (OD) of: 10.29mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 Thread: 1/4" NPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Side 2 Thread: 1/8" NPT Male x Male
Suits an outside diameter (OD) of: 10.29mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Thread: 1/4" BSPP Female x Female, 1/8" BSPP Female Branch
Suits main run OD 13.7mm, branch OD 10.3mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Reducing Tee, Tee Piece, Screwed, Low Pressure, 150 psi

Suits an outside diameter (OD) of: 12.7mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 19.05mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 25.4mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 31.75mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M8
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 38.1mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M8
Material: Stainless Steel
Grade: 304

Hose inside diameter: 3/8" (10.00mm ID)
Hose outside diameter: 15.00mm
Colour: Clear
Coil Length: 30m
Material: PVC
Braid: Cotton Braided
Standard: BS6066
Maximum Working Pressure: 10 bar
Working Temperature: -20°C to +65°C

Applications:
Conveyance of Clean & Waste Water, Fluid, Oil & Gasses*

Approvals:
FDA Compliant Standards

Closing rang: 106-112mm
Clamp Material: Mild Steel
Finish: Bright Zinc Plated (BZP)
M8 & M10 (Dual) Bossed Connection
Insert Material: Black EPDM Lined Rubber

Alternative terminology:
Clip, Clamp, Support, Bracket, Pipe Support, Tube Clamp
