Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Stainless Steel
Grade: 316

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Stainless Steel,Stainless Steel, Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" NPT Female
Side 1 suits an outside diameter (OD) of: 26.9mm

Side 2 threaded: 1/2" NPT Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Forged Stainless steel
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Stainless steel, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Coupling, Reducing Socket, Coupling, Stainless Steel

Side One Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" NPT Female
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

Thread Side 1: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Thread Side 2: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel
Grade: A105N
Construction: Forged
Finish: Galvanised
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Reducing Bush, MXF, Hex Bush, Carbon Steel

Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel, Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 Thread: 3/4" NPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Side 2 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 threaded: 3/4" NPT Female
Side 1 suits an outside diameter (OD) of: 26.9mm

Side 2 threaded: 1/2" NPT Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

Side 1 threaded: 3/4" NPT Female
Side 1 suits an outside diameter (OD) of: 26.9mm

Side 2 threaded: 1/2" NPT Female
Side 2 suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
Nominal Bore, Threaded, Screwed, 3000 psi (3K) High Pressure, Forged Steel Galvanised (HDG) A105N, BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducer, Socket, Reducing Socket, Carbon Steel

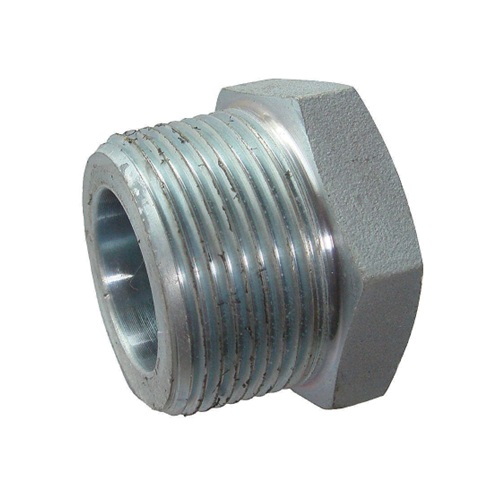

Side 1 threaded: 3/4" NPT Male
Side 1 suits an outside diameter (OD) of: 26.9mm
Side 2 threaded: 1/2" NPT Female
Side 2 suits suits an outside diameter (OD) of: 21.3mm

Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97

Alternative terminology:
Forged Steel Galvanised (HDG), Carbon Steel, , Reducing Bush, Threaded, Screwed, , Fittings.

Side 1 Thread: 3/4" NPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Side 2 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Side One Connection: 3/4" SW (Socket Weld)
Suits an outside diameter (OD) of: 26.9mm
Side Two Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless
Grade: 316

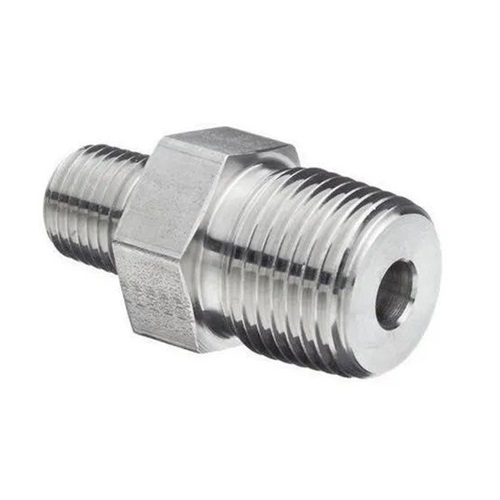

Thread Side 1: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Thread Side 2: 3/4" NPT Male x Male
Suits an outside diameter (OD) of:26.9mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/4" BSPP Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/4" BSPT Male
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" BSP Female
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/4" BSP Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/4" NPT Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316

Side One Thread: 3/4" NPT Male
Suits an outside diameter (OD) of: 26.9mm
Side Two Thread: 1/4" NPT Male
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.11 x 2.11mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.11 x 2.11mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.11 x 2.11mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.11 x 2.11mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 10S
Weight: 0.11kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: STD
Weight: 0.27kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 40s
Weight: 0.27kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 40s
Weight: 0.27kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 40s
Weight: 0.27kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 40s
Weight: 0.27kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 3.91 x 3.73mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: XS
Weight: 0.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Thread: 3/4" BSPP Female x Female, 3/8" BSPP Female Branch
Suits main run OD 26.7mm, branch OD 17.1mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Reducing Tee, Tee Piece, Screwed, Low Pressure, 150 psi

Thread: 3/4" BSPP Female x Female, 1/2" BSPP Female Branch
Suits main run OD 26.7mm, branch OD 21.3mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Reducing Tee, Tee Piece, Screwed, Low Pressure, 150 psi

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 2.41kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 2.41kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 2.41kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 2.43kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 2.43kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Suits an outside diameter (OD) of: 33.4mm (1")
Threaded: 1" BSPP Male
Material: Brass

Side One Thread: 1" NPT Male
Side Two Thread: 1" NPT Female
Both Sides Suit an outside diameter (OD) of: 33.4mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Side One Thread: 1" BSPT Male
Side Two Thread: 1" BSPP Female
Both Sides Suit an outside diameter (OD) of: 33.4mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Thread: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Thread: 1" BSPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Side One Thread: 1" BSPT Male
Side One Suits an outside diameter (OD) of: 33.4mm
Side Two Hose Tail: 1" Serration
Side Two Suits Hose inside Diameter (ID)of: 25.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Hose, Low Pressure, 150 psi

Thread: 1" BSPT Male
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Side One Thread: 1" BSPT Male
Side One Suits an outside diameter (OD) of: 33.4mm
Side Two Plain: 1" Buttweld
Side Two Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Suits an outside diameter (OD) of: 33.4mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: Buttweld
Bore: Full Bore
Internals: PTFE Seals

Part of our Isolation and Valves Range

Outside diameter (O): 107.9mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 49.2mm
Pitch circle diameter (K): 79.2mm
Raised face diameter (Y): 17.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 107.9mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 49.2mm
Pitch circle diameter (K): 79.2mm
Raised face diameter (Y): 17.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

1" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 125mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Flanged both ends: 1" ANSI 150
Suits an outside diameter (OD) of: 33.4mm
PCD: 79.4mm Ø (ASA 150)
Face to face: 127mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Blanking / Blind Flange
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit 1/2"⌀ or M12 Bolts
PCD: 79.4mm
Flange Diameter: 107.9mm
Flange Thickness: 17.5mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 33.4mm
Material: Mild Steel
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 79.4mm
Flange Diameter: 123.8mm
Flange Thickness: 17.46mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Bossed Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 107.9mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 49.2mm
Pitch circle diameter (K): 79.2mm
Raised face diameter (Y): 17.5mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore length (B): 34.5mm
Bore diameter (D): 13.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 149.3mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 101.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 149.3mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 101.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 34.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 149.3mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 101.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 149.3mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 101.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 53.8mm
Pitch circle diameter (K): 88.9mm
Raised face diameter (Y): 26.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 35.8mm
Hub thickness (T): 17.5mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 53.8mm
Pitch circle diameter (K): 88.9mm
Raised face diameter (Y): 26.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore diameter (Q): 35.8mm
Hub thickness (T): 17.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 124.0mm
Hub diameter at base (C): 15.7mm
Length through hub (X): 54.0mm
Pitch circle diameter (K): 88.9mm
Raised face diameter (Y): 25mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 50.8mm
Bore length (B): 34.5mm
Bore diameter (D): 13.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Thread: 1" BSPP Female x Female
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Thread: 1" BSPP Female x Female
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 45°, 45 Deg, Screwed, Low Pressure, 150 psi

Thread: 1" BSPP Female x Female
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 90°, 90 Deg, Screwed, Low Pressure, 150 psi

Thread: 1" BSPP Female x Female
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Male x Female, MF, MXF, Union, Threaded, Screwed, Street Union

Thread: 1" BSPT Male x Male
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi
