Suits an outside diameter (OD) of: 88.9mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 160mm
Flange Diameter: 200mm
Flange Thickness: 20mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of:88.9mm
Material: Stainless
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 160mm
Flange Diameter: 200mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 88.9mm
Construction: Spring assisted
Body Material: 316 Stainless
Wafer patter to suit flanges: PN16 & ASA150 (ANSI150)

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Flat Face (RF): 128mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Raised Face (RF): 128mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Raised Face (RF): 128mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 150mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 3"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 150mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 3"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 150mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 3"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 150mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 3"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

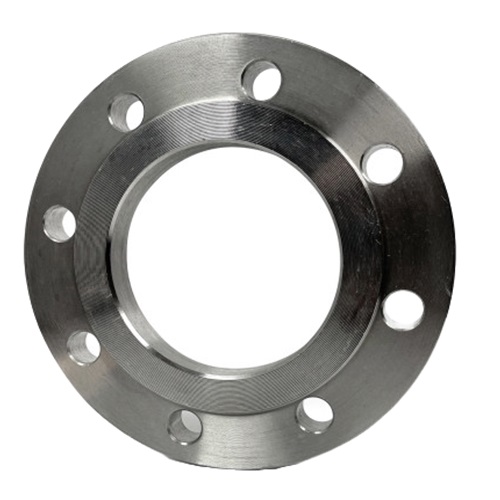

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 10S
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 10S
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm

Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm

Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 114.3mm
Schedule: A403 Seamless
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 114.3mm
Schedule: A403 Seamless
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 76.2mm
Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 76.2mm
Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 10S
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 10S
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

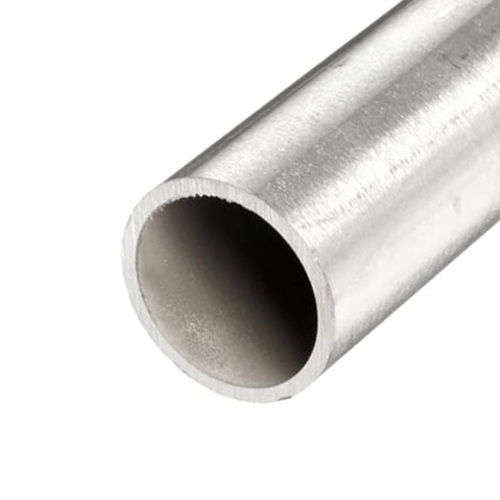

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 3.05mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 6.5kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 3.05mm
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 6.5kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 3.05mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 6 meter Random
Weight Per Meter: 6.5kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 3.05mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 6.5kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 11.13mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 160 ASME B36.10 / B36.19
Standard Length: 6 meters
Weight Per Meter: 21.35 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Length: 85.7mm
Schedule: STD
Weight: 0.64kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: STD
Weight: 3.37kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 50.8mm
Schedule: STD
Weight: 1.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: STD
Weight: 1.38kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: STD
Weight: 2.18kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight)
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 11.11 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 40s
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 40s
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm

Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm

Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: A403 Seamless
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: A403 Seamless
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: A403 Seamless
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 40s
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
