Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: 40s
Weight: 3.37kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm

Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm

Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

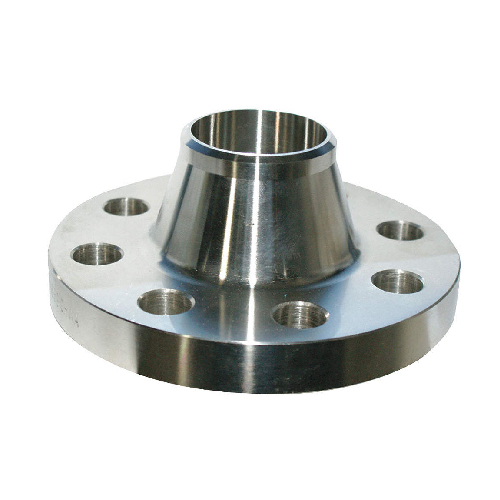

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Seamless

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Cap, Blank, Stop end, Weld Cap

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9, Schedule 40s
Radius Centre to Face: 114.3mm
Angle: 90 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Long Rad, 90s, SCH40

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 11.36kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 11.36kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 11.36kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 11.36kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Welded

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Cap, Blank, Stop end, Weld Cap

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 5.49mm
Material: Stainless
Grade: 304
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Length: 85.7mm
Schedule: XS
Weight: 0.84kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to End: 85.7mm
Schedule: XS
Weight: 4.29kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 50.8mm
Schedule: XS
Weight: 1.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 114.3mm
Schedule: XS
Weight: 2.86kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 76.2mm
Schedule: XS
Weight: 1.83kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 7.62mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 15.27 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Pipes and Tubes Range

Part of our Stainless Pipes and Tubes Range

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Hub length (X): 101.6mm
Neck height (A): 88.9mm
Pitch circle diameter (K): 152.4mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 7.62mm (Sch80)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 15.50kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 7.62mm (Sch80)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 15.50kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Both sides: 3" Socket Weld
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless 316/L

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, 90, 90° Elbow, Fittings.

Both sides: 3" Socket Weld
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless 316/L

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Alternative terminology:
Forged, Stainless, Socket Weld, Coupling, Socket, Straight, Equal.

Threaded: 3" NB Socket Weld (SW)
Suits an outside diameter (OD) of: 88.9mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: Socket Weld
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Thread: 3" SW (Socket Weld)
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 45°, 45 Deg, Weldable, Low Pressure, 150 psi

Thread: 3" SW (Socket Weld)
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 90°, 90 Deg, Weldable, Low Pressure, 150 psi

Thread: 3" SW (Socket Weld)
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Connection: 3" SW (Socket Weld)
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Thread: 3" SW (Socket Weld)
Suits an outside diameter of 88.9mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, SW (Socket Weld), Equal, Tee, Tee Piece, Weldable, Low Pressure, 150 psi

Thread: 3" SW (Socket Weld)
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, SW (Socket Weld), Weldable, Low Pressure, 150 psi

Alternative terminology:
SW Cap, Termination, Blanking Cap, Cap End

Connection: 3" SW
Suits an outside diameter (OD) of: 88.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Stainless Steel

Suits an outside diameter (OD) of: 88.9mm
Material: MS Zinc Plated (BZP)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 88.9mm
Material: Mild Steel (Galvanised))
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 88.9mm
Material: Stainless Steel 304 (A2)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 88.9mm
Material: Stainless Steel 316 (A4)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Thread: M12

Suits an outside diameter (OD) of: 88.9mm
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 88.9mm
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated

Suits a DN80 DIN Union
Material: Stainless
Grade: 304

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a DN80 DIN Union
Material: Stainless
Grade: 316

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Flange outside diameter: 200mm (D)
Flange inside diameter: 90.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 160mm (K)
Hub height: 34mm (H1)
Neck diameter: 118mm (N2)
Raised Face Diameter: 138mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 200mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C4): 24mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
