Suits an outside diameter (OD) of: 219.1mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

Suits an outside diameter (OD) of: 219.1mm
Construction: Cast Steel Parallel Slide Gate
Body Material: Cast Steel
To suit flanges: ASA/ANSI 300
Face to Face: 419mm
Operation: Handwheel operated, Non-rising Stem
Design Standard: BS EN 1984


Part of our Isolation and Valves Range

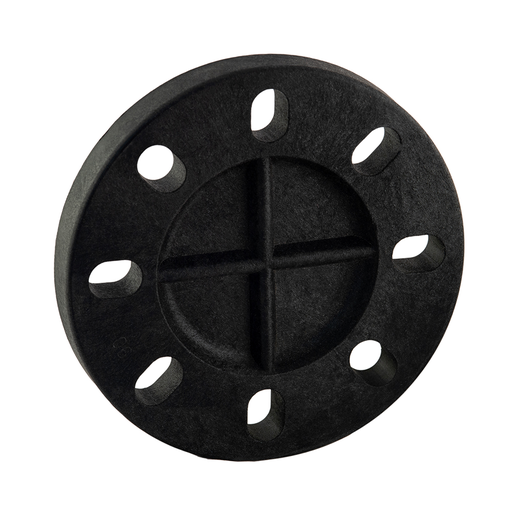

DN200 Blind Flange with steel insert
Flange Rating: PN10
Connection: Flanged
Pressure Rating: PN10
Material: Polypropylene (PP)
With Steel Insert

Flange outside diameter: 340mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 295mm (K)
Hub height: 44mm (H1)
Neck diameter: 246mm (N2)
Raised Face Diameter: 268mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 219mm
Construction: Resilient Seat Wedge Gate Valve
Body Material: Ductile Iron
To suit flanges: PN16
Face to Face: 292mm
Operation: F14 ISO Top Works for Actuation (No Handwheel)
Design Standard: BS EN 1984


Part of our Isolation and Valves Range

Flange outside diameter: 340mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 295mm (K)
Hub height: 44mm (H1)
Neck diameter: 246mm (N2)
Raised Face Diameter: 268mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 22.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 360mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 30mm
Pitch Circle Diameter (PCD): 310mm (K)
Hub height: 52mm (H1)
Neck diameter: 256mm (N2)
Raised Face Diameter: 278mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 375mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 34mm
Pitch Circle Diameter (PCD): 320mm (K)
Hub height: 60mm (H1)
Neck diameter: 260mm (N2)
Raised Face Diameter: 285mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 320mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 280mm (K)
Hub height: 44mm (H1)
Neck diameter: 240mm (N2)
Raised Face Diameter: 312mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Side One suits an outside diameter (OD) of: 219.1mm
Side One wall thickness (WT): 8.18mm

Side Two suits an outside diameter (OD) of: 114.3mm
Side Two wall thickness (WT): 6.02mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 152mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 219mm
Side One wall thickness (WT): 18.3mm

Side Two suits an outside diameter (OD) of: 168.3mm
Side Two wall thickness (WT): 18.9mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 152mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 219.1mm
Side One wall thickness (WT): 8.18mm

Side Two suits an outside diameter (OD) of: 168.3mm
Side Two wall thickness (WT): 7.11mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 152mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 152mm
Schedule: STD
Weight: 27.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 12.70 x 10.97mm
Centre to End (Run): 178mm
Centre to End (Branch): 152mm
Schedule: XS
Weight: 33.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Threaded: 3/4" SW (Socket Weld) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Stainless Steel

Outside diameter: 29mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.03kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 584.2mm
Flange thickness (C): 107.9mm
Pitch circle diameter (K): 482.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Flange hub height: 82.6mm (Y)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Flange hub height: 82.6mm (Y)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Flange hub height: 82.6mm (Y)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 508.0mm
Flange thickness (C): 69.9mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 508.0mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 85.8mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 508.0mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 85.8mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 508.0mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 85.8mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

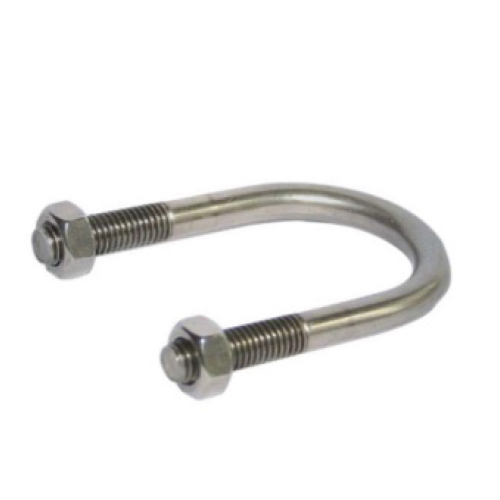

Suits an outside diameter (OD) of: 273mm
Material: Stainless Steel 304 (A2)
Thread: M20
Comes with 2x Nuts

Suits an outside diameter (OD) of: 273mm
Boss Connection: M16
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated

Suits Flange Size: DN250 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Part of our Flanges and Flanged Connections Range

Part of our Flanges and Flanged Connections Range

Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

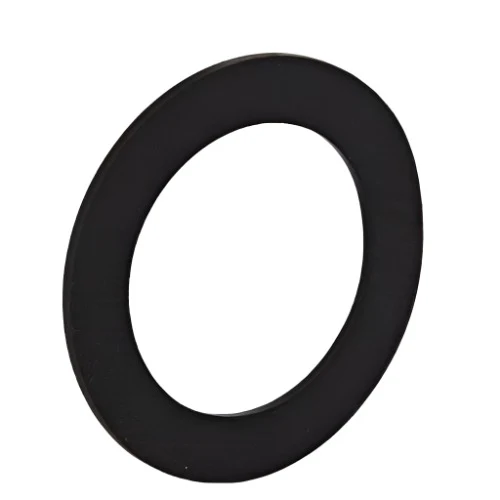

Suits an outside diameter (OD) of: 273.00mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Gasket Thickness: 3mm
