Outside Diameter (OD): 73 x 60mm
Wall Thickness (Run x Branch): 7.01 x 5.54mm
Centre to End (Run): 76mm
Centre to End (Branch): 64mm
Schedule: XS
Weight: 3.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Suits a DN75 DIN Union
Material: Stainless
Grade: 304

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Connection: 1/4" SW (Socket Weld)
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Stainless Steel

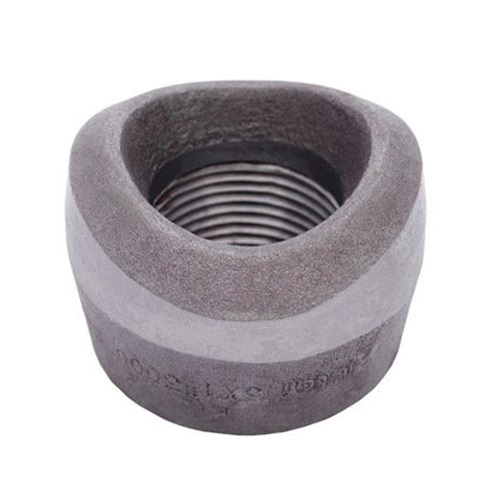

Threaded: 1/4" NPT
Suits an outside diameter (OD) of: 13.72mm
Sits on an 60.3mm diameter for welding
Material: Carbon Steel
Grade: A105 N
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 4.0mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 8.36kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 8.36kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 8.36kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 8.53kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.




Part of our Pipes and Tubes Range

Outside Diameter (OD): 88.9mm
Wall Thickness (WT): 4mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 8.53kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.




Part of our Pipes and Tubes Range

3" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 180mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Outside diameter (O): 190.5mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 107.9mm
Pitch circle diameter (K): 152.4mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore diameter (Q): 30.2mm
Hub thickness (T): 19.0mm
Number of bolt holes: 4
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 107.9mm
Pitch circle diameter (K): 152.4mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore diameter (Q): 30.2mm
Hub thickness (T): 19.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flanged both ends: 3" ASA 150
Suits an outside diameter (OD) of: 88.9mm
PCD: 152.4mm Ø (ANSI 150)
Face to face: 203mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 152.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 152.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 152.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 88.9mm
Material: Mild Steel
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off 19mm Ø
PCD: 152.4mm
Flange Diameter: 190.5mm
Flange Thickness: 23.5mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Bossed Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit 5/8"⌀ or M16 Bolts
PCD: 152.4mm
Flange Diameter: 190.5mm
Flange Thickness: 23.8mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 190.5mm
Hub diameter at base (C): 23.8mm
Length through hub (X): 107.9mm
Pitch circle diameter (K): 152.4mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore length (B): 90.6mm
Bore diameter (D): 20.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 266.7mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 203.2mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 266.7mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 203.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 31.7mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 266.7mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 203.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 31.7mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 266.7mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 203.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 31.7mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Hub diameter at base (C): 28.4mm
Length through hub (X): 117.3mm
Pitch circle diameter (K): 168.1mm
Raised face diameter (Y): 42.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore diameter (Q): 92.2mm
Hub thickness (T): 31.7mm
Number of bolt holes: 8
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Hub diameter at base (C): 28.4mm
Length through hub (X): 117.3mm
Pitch circle diameter (K): 168.1mm
Raised face diameter (Y): 42.9mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore diameter (Q): 92.2mm
Hub thickness (T): 31.7mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 42.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 42.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 42.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 210.0mm
Hub diameter at base (C): 26.9mm
Length through hub (X): 117.0mm
Pitch circle diameter (K): 168.1mm
Raised face diameter (Y): 41mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 127.0mm
Bore length (B): 90.7mm
Bore diameter (D): 21.0mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 209.5mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 45.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 45.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 209.5mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 45.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Part of our Isolation and Valves Range

Thread: 3" BSPP Female x Female
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Thread: 3" BSPP Female x Female
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 45°, 45 Deg, Screwed, Low Pressure, 150 psi

Thread: 3" BSPP Female x Female
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 90°, 90 Deg, Screwed, Low Pressure, 150 psi

Side One Thread: 3" BSPT Male
Side Two Thread: 3" BSPP Female
Both Sides Suit an outside diameter (OD) of: 88.9mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Thread: 3" BSPT Male x Male
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Thread: 3" BSP Female x Female
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Thread: 3" BSPP Female x Female x Female
Suits an outside diameter of 88.9mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Equal, Tee, Tee Piece, Screwed, Low Pressure, 150 psi

Thread: 3" BSP Female x Female
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Thread: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Cap, Termination, Blanking Cap, Cap End

Thread: 3" BSPT Male
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Male Plug, Termination, Blanking Plug, Stop end

Thread: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Cap, Termination, Blanking Cap, Cap End
