Side One Thread: 1/2" NPT Female
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/4" NPT Female
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316

Side 1 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Side 2 Thread: 1/4" NPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel A105N
Finish: Black Self Colour

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel, Carbon Steel,, Threaded, Screwed, , Fittings.

Side 1 Thread: 1/2" NPT Male x Male
Suits an outside diameter (OD) of: 21.3mm
Side 2 Thread: 1/4" NPT Male x Male
Suits an outside diameter (OD) of: 13.72mm
Material: Forged Steel Galvanised (HDG) A105N
Finish:

Standards:
BS3799, ANSI B16.11 MSS SP-83, MSS SP-95, MSS SP-97




Alternative terminology:
Reducing Heagon Nipple, Forged Steel Galvanised (HDG), Carbon Steel,, Threaded, Screwed, , Fittings.

Side One Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Side Two Connection: 1/4" SW (Socket Weld)
Suits an outside diameter (OD) of: 13.72mm
Material: Stainless
Grade: 316

Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" BSPP Female
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316

Side One Thread: 1/2" BSPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" BSPT Male
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316

Side One Thread: 1/2" BSP Female
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" BSP Female
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316

Side One Thread: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Side Two Thread: 1/8" NPT Female
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316

Side One Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Side Two Connection: 1/8" SW (Socket Weld)
Suits an outside diameter (OD) of: 10.29mm
Material: Stainless
Grade: 316

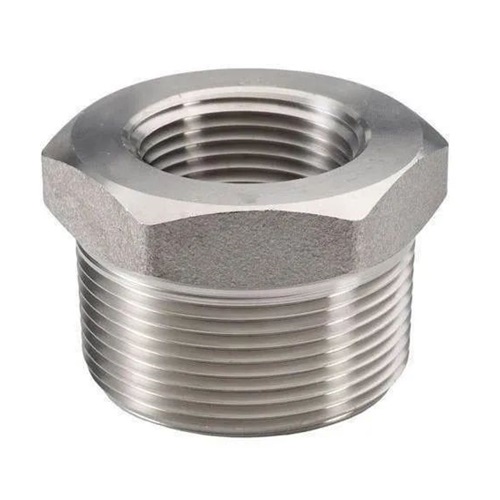

Thread Side 1: 1/2" NPT Male
Suits an outside diameter (OD) of: 21.3mm
Thread Side 2: 1/4" NPT Female
Suits an outside diameter (OD) of: 13.7mm
Material: Stainless
Grade: 316

Brass Reducing Bush
Side One: 1/2" Male NPT Thread
Side One: 1/4" Female NPT Thread

Thread: 1/2" BSPP Female x Female, 3/8" BSPP Female Branch
Suits main run OD 21.3mm, branch OD 17.1mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Reducing Tee, Tee Piece, Screwed, Low Pressure, 150 psi

Thread: 1/2" BSPP Female x Female, 1/4" BSPP Female Branch
Suits main run OD 21.3mm, branch OD 13.7mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Reducing Tee, Tee Piece, Screwed, Low Pressure, 150 psi

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 26.9mm
Wall Thickness (WT): 2.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.96kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain ended

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 26.9mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.56kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Outside Diameter (OD): 26.9mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.56kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 26.9mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.56kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 26.9mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.57kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Outside Diameter (OD): 26.9mm
Wall Thickness (WT): 2.6mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 1.57kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Threaded: 3/4" NB Socket Weld (SW)
Suits an outside diameter (OD) of: 26.9mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: Socket Weld
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

3/4" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 120mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

Outside diameter (O): 98.5mm
Hub diameter at base (C): 12.7mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 69.8mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 98.5mm
Hub diameter at base (C): 12.7mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 69.8mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 15.7mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flanged both ends: 3/4" ASA150
Suits an outside diameter (OD) of: 26.9mm
Face to face: 117.1mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem
ISO Mount Top Works for actuation

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Flanged both ends: 3/4" ASA 150
Suits an outside diameter (OD) of: 26.9mm
PCD: 69.8mm Ø (ANSI 150)
Face to face: 117.1mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 26.9mm
Material: CS
Grade: A105 N
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off 15.7mm Ø
PCD: 69.8mm
Flange Diameter: 98.5mm
Flange Thickness: 12.7mm
Certification Available: 3.1 Material Certification
Origin: European (EU)

Alternative terminology:
Blind, Blank, Drilled & Tapped, BSPT Female, Test Plate, Blanking Flange, Mild steel, Carbon Steel, Termination, RFB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 98.5mm
Hub diameter at base (C): 12.7mm
Length through hub (X): 38.1mm
Pitch circle diameter (K): 69.8mm
Raised face diameter (Y): 15.7mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore length (B): 27.6mm
Bore diameter (D): 11.1mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 130.0mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Hub diameter at base (C): 15.7mm
Length through hub (X): 47.7mm
Pitch circle diameter (K): 82.5mm
Raised face diameter (Y): 25.4mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 28.9mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Hub diameter at base (C): 15.7mm
Length through hub (X): 47.7mm
Pitch circle diameter (K): 82.5mm
Raised face diameter (Y): 25.4mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore diameter (Q): 28.9mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.0mm
Hub diameter at base (C): 14.2mm
Length through hub (X): 48.0mm
Pitch circle diameter (K): 82.5mm
Raised face diameter (Y): 24mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 42.9mm
Bore length (B): 27.7mm
Bore diameter (D): 11.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Part of our Isolation and Valves Range

Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 45°, 45 Deg, Screwed, Low Pressure, 150 psi

Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Threaded, Elbow, 90°, 90 Deg, Screwed, Low Pressure, 150 psi

Thread: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Alternative terminology:
Male x Female, MF, MXF, Union, Threaded, Screwed, Street Union

Side One Thread: 3/4" BSPT Male
Side Two Thread: 3/4" BSPP Female
Both Sides Suit an outside diameter (OD) of: 26.9mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Thread: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Thread: 3/4" BSP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Thread: 3/4" BSPP Female x Female x Female
Suits an outside diameter of 26.7mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Equal, Tee, Tee Piece, Screwed, Low Pressure, 150 psi

Thread: 3/4" BSP Female x Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316

Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Cap, Termination, Blanking Cap, Cap End

Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Male Plug, Termination, Blanking Plug, Stop end

Thread: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Female Cap, Termination, Blanking Cap, Cap End

Thread: 3/4" BSPT Male
Suits an outside diameter (OD) of: 26.7mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Alternative terminology:
Male Plug, Termination, Blanking Plug, Stop end

Side One Thread: 3/4" BSPT Male
Side Two Plain: 3/4" Buttweld
Both sides suit an outside diameter (OD) of: 26.9mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Suits an outside diameter (OD) of: 26.9mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 26.9mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore
Approval: EN331: 1998+ A1:2015
Gas installations for buildings (CPR)
WRAS Approved

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 26.9mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 26.9mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 26.9mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 40mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 50mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 60mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 80mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 100mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 120mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 150mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 180mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 200mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 250mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 3/4" BSPT Male x Male
Suits an outside diameter (OD) of: 26.9mm
Overall Length: 300mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Both sides threaded: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Mild Steel (Formally referred to as Wrought Iron BS1740), EN 10241 & EN 10255

Alternative terminology:
Socket, Coupling, Connector, Joiner, Straight, Mild Steel, Carbon Seel, Wrought Iron, Heavy Weight, Threaded, Screwed, Fittings.

Suits pipe size: 3/4" NB
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1




Alternative terminology:
Malleable, Iron, Threaded, Pipe Ring, Munsen Ring, Pipe Clip, Munson, Tube Clip, Screwed, Fittings.

All sides threaded: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Screwed, Figure 130, Fittings.

Both sides threaded: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Alternative terminology:
Malleable, Iron, Threaded, Sweeping, Swept, 45°, Bend, Figure 41, Screwed, Fittings.

Both sides threaded: 3/4" BSPP Female x Female
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable 45°, 45 Degree, Malleable Iron, Threaded, Screwed, Figure 120, Fittings.

Both sides threaded: 3/4" BSPP Female
Suits an outside diameter (OD) of: 26.9mm
Material: Malleable Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Threaded, Figure 90, Screwed, Fittings.
