Flanged to suit: DN150 (6" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN40
Face to Face: 400mm
Temperature Range: -50°C to 400°C
Certification: Available on request

Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 202mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 168.3mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Bolt Holes: 8 off to suit M16 Bolts
PCD: 225mm
Flange Diameter: 265mm
Flange Thickness: 17mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 202mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 202mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

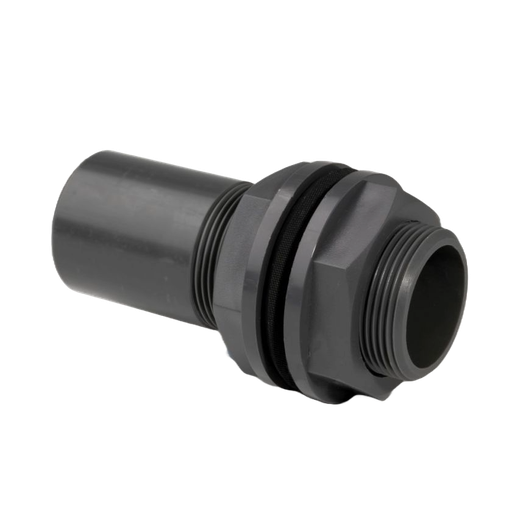

Side One thread: 6" BSPP Male
Side One suits an outside diameter (OD) of:168.3mm
Side Two plain: 6" Plain Solvent Spigot
Side Two suits an outside diameter (OD) of: 168.3mm
Comes with 2x 6" BSPP PVC-U Back Nuts
Also known as PVC Bulkhead fittings
Material: PVC-U

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 3.40mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 14.04kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 3.40mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 14.04kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 18.26mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 160 ASME B36.10 / B36.19
Standard Length: 6 meters
Weight Per Meter: 67.57 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 18.3mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 160
Centre to Face: 152mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Elbow, Bend, 90 Degree, Carbon Steel, Mild Steel, Long Radius

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Length: 142.8mm
Schedule: STD
Weight: 2.91kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: STD
Weight: 13.33kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 95.2mm
Schedule: STD
Weight: 5.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: STD
Weight: 6.89kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Hub length (X): 190.5mm
Neck height (A): 241.3mm
Pitch circle diameter (K): 241.3mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: STD
Weight: 10.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 40 (Standard Weight) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 28.23 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Radius Centre to Face: 50.8mm
Angle: 90 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification
Finish: Self Colour (No Varnish)

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Long Rad, 90s, LR

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Radius Centre to Face: 152.4mm
Angle: 90 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Short Rad, 90s, SR

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 28.23 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm

Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm

Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 28.26kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

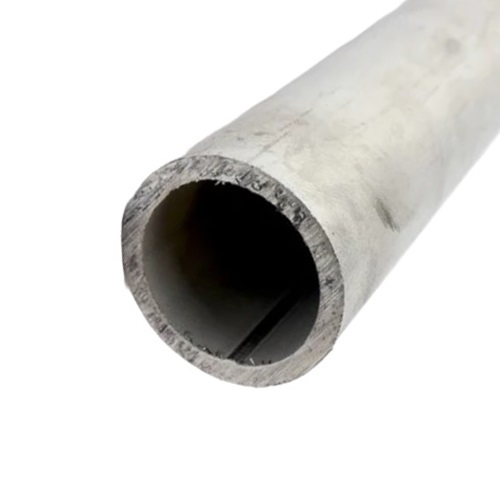

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 28.69
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Stainless
Grade: 304
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Length: 142.8mm
Schedule: XS
Weight: 4.41kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to End: 142.8mm
Schedule: XS
Weight: 19.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 95.2mm
Schedule: XS
Weight: 7.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 229.0mm
Schedule: XS
Weight: 15.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 152.4mm
Schedule: XS
Weight: 10.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Hub length (X): 190.5mm
Neck height (A): 241.3mm
Pitch circle diameter (K): 241.3mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Carbon Steel, RF

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 10.97mm
Material: Carbon Steel Pipe
Grade: A106 B / P265GH
Standards: ASTM / ANSI Schedule 80 (Extra Strong) ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 42.56 kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification



Part of our Carbon / Mild Steel Pipes and Tubes Range

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Hub length (X): 190.5mm
Neck height (A): 241.3mm
Pitch circle diameter (K): 241.3mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Hub length (X): 190.5mm
Neck height (A): 241.3mm
Pitch circle diameter (K): 241.3mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 165.1mm
Wall Thickness (WT): 5.4mm
Material: Mild Steel
Grade: P265 GH
Standards: ANSI B16.9
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Suits an outside diameter (OD) of: 168.3mm
Material: MS Zinc Plated (BZP)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 168.3mm
Material: Mild Steel (Galvanised))
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 168.3mm
Material: Stainless Steel 304 (A2)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 168.3mm
Material: Stainless Steel 316 (A4)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 168.3mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: Stainless Steel
Grade: 304

Suits an outside diameter (OD) of: 168.3mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated

Victaulic V107N
Finish: Galvanised
Rigid Coupling

Suits a DN150 DIN Union
Material: Stainless
Grade: 304

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a DN150 DIN Union
Material: Stainless
Grade: 316

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Flange outside diameter: 285mm (D)
Flange inside diameter: 170.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 240mm (K)
Hub height: 44mm (H1)
Neck diameter: 195mm (N2)
Raised Face Diameter: 212mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22.0mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 300mm (D)
Flange inside diameter: 170.5mm (B1)
Flange thickness (C2): 28mm
Pitch Circle Diameter (PCD): 250mm (K)
Hub height: 52mm (H1)
Neck diameter: 200mm (N2)
Raised Face Diameter: 218mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 300mm (D)
PCD: 250mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
