Elbows 90°

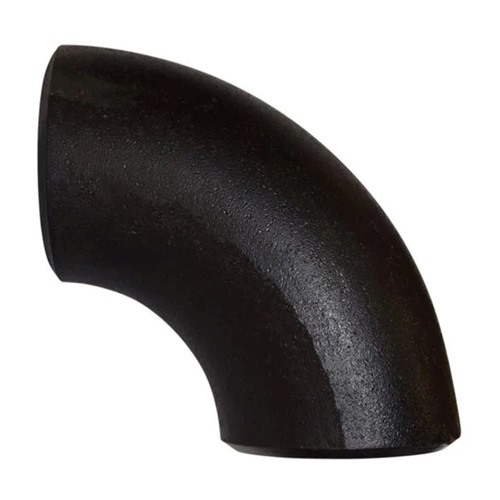

DN200 (8" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 219.1mm
Wall Thickness: 6.35mm
Centre to Face: 305.0mm
Schedule: SCH20
Weight: 16.74kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 199.08 199.08 GBP

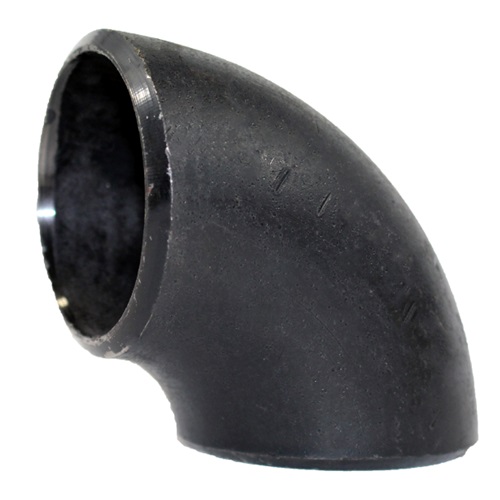

DN200 (8" NB) SCHEDULE 20 A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 219.1mm
Wall Thickness: 6.35mm
Centre to Face: 203.0mm
Schedule: SCH20
Weight: 11.16kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN250 (10" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 273.9mm
Wall Thickness: 6.35mm
Centre to Face: 381.0mm
Schedule: SCH20
Weight: 26.22kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 346.15 346.15 GBP

DN250 (10" NB) SCHEDULE 20 A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 273.9mm
Wall Thickness: 6.35mm
Centre to Face: 254.0mm
Schedule: SCH20
Weight: 17.48kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN300 (12" NB) SCHEDULE 20 A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to Face: 305.0mm
Schedule: SCH20
Weight: 41.77kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN350 (14" NB) SCHEDULE 20 A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 355.6mm
Wall Thickness: 7.92mm
Centre to Face: 355.6mm
Schedule: SCH20
Weight: 39.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN400 (16" NB) SCHEDULE 20 A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 406.4mm
Wall Thickness: 7.92mm
Centre to Face: 406.4mm
Schedule: SCH20
Weight: 52.14kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN450 (18" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 457.0mm
Wall Thickness: 7.92mm
Centre to Face: 686.0mm
Schedule: SCH20
Weight: 99.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN450 (18" NB) SCHEDULE 20 A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 457.0mm
Wall Thickness: 7.92mm
Centre to Face: 457.0mm
Schedule: SCH20
Weight: 66.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN300 (12" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 323.9mm
Wall Thickness: 6.35mm
Centre to Face: 457.0mm
Schedule: SCH20
Weight: 37.46kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 485.87 485.87 GBP

DN350 (14" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 355.6mm
Wall Thickness: 7.92mm
Centre to Face: 553.0mm
Schedule: SCH20
Weight: 59.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN400 (16" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 406.4mm
Wall Thickness: 7.92mm
Centre to Face: 610.0mm
Schedule: SCH20
Weight: 78.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN500 (20" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 508.0mm
Wall Thickness: 9.52mm
Centre to Face: 762.0mm
Schedule: SCH20
Weight: 85.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN550 (22" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 558.8mm
Wall Thickness: 9.52mm
Centre to Face: 838.0mm
Schedule: SCH20
Weight: 174.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN600 (24" NB) SCHEDULE 20 A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 609.6mm
Wall Thickness: 9.52mm
Centre to Face: 914.0mm
Schedule: SCH20
Weight: 203.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP
