PN40

Flange outside diameter: 90mm (D)
Flange inside diameter: 18.0mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 60mm (K)
Hub height: 22mm (H1)
Neck diameter: 30mm (N2)
Raised Face Diameter: 40mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 95mm (D)
Flange inside diameter: 22.0mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 65mm (K)
Hub height: 22mm (H1)
Neck diameter: 35mm (N2)
Raised Face Diameter: 45mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 105mm (D)
Flange inside diameter: 27.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 75mm (K)
Hub height: 26mm (H1)
Neck diameter: 45mm (N2)
Raised Face Diameter: 58mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 115mm (D)
Flange inside diameter: 34.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 85mm (K)
Hub height: 28mm (H1)
Neck diameter: 52mm (N2)
Raised Face Diameter: 68mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 140mm (D)
Flange inside diameter: 43.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 100mm (K)
Hub height: 30mm (H1)
Neck diameter: 60mm (N2)
Raised Face Diameter: 78mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 150mm (D)
Flange inside diameter: 49.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 110mm (K)
Hub height: 32mm (H1)
Neck diameter: 70mm (N2)
Raised Face Diameter: 88mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 165mm (D)
Flange inside diameter: 61.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 125mm (K)
Hub height: 34mm (H1)
Neck diameter: 84mm (N2)
Raised Face Diameter: 102mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 185mm (D)
Flange inside diameter: 77.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 145mm (K)
Hub height: 38mm (H1)
Neck diameter: 104mm (N2)
Raised Face Diameter: 122mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 200mm (D)
Flange inside diameter: 90.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 160mm (K)
Hub height: 40mm (H1)
Neck diameter: 118mm (N2)
Raised Face Diameter: 138mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 235mm (D)
Flange inside diameter: 116.0mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 190mm (K)
Hub height: 44mm (H1)
Neck diameter: 145mm (N2)
Raised Face Diameter: 162mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 270mm (D)
Flange inside diameter: 141.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 220mm (K)
Hub height: 48mm (H1)
Neck diameter: 170mm (N2)
Raised Face Diameter: 188mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 300mm (D)
Flange inside diameter: 170.5mm (B1)
Flange thickness (C2): 28mm
Pitch Circle Diameter (PCD): 250mm (K)
Hub height: 52mm (H1)
Neck diameter: 200mm (N2)
Raised Face Diameter: 218mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 375mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 34mm
Pitch Circle Diameter (PCD): 320mm (K)
Hub height: 60mm (H1)
Neck diameter: 260mm (N2)
Raised Face Diameter: 285mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 450mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 38mm
Pitch Circle Diameter (PCD): 385mm (K)
Hub height: 60mm (H1)
Neck diameter: 312mm (N2)
Raised Face Diameter: 345mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 33mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 515mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 42mm
Pitch Circle Diameter (PCD): 450mm (K)
Hub height: 67mm (H1)
Neck diameter: 380mm (N2)
Raised Face Diameter: 410mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 33mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 580mm (D)
Flange inside diameter: 359.0mm (B1)
Flange thickness (C2): 46mm
Pitch Circle Diameter (PCD): 510mm (K)
Hub height: 72mm (H1)
Neck diameter: 424mm (N2)
Raised Face Diameter: 465mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 36mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 660mm (D)
Flange inside diameter: 411.0mm (B1)
Flange thickness (C2): 50mm
Pitch Circle Diameter (PCD): 585mm (K)
Hub height: 78mm (H1)
Neck diameter: 478mm (N2)
Raised Face Diameter: 535mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 39mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 715mm (D)
Flange inside diameter: 462.0mm (B1)
Flange thickness (C2): 57mm
Pitch Circle Diameter (PCD): 650mm (K)
Hub height: 84mm (H1)
Neck diameter: 532mm (N2)
Raised Face Diameter: 600mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 39mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 785mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 57mm
Pitch Circle Diameter (PCD): 670mm (K)
Hub height: 90mm (H1)
Neck diameter: 576mm (N2)
Raised Face Diameter: 615mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 42mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

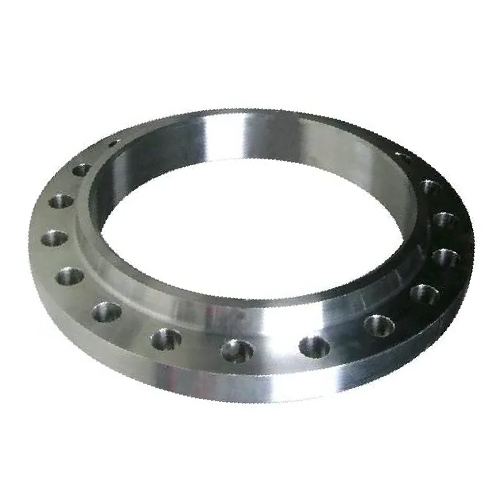

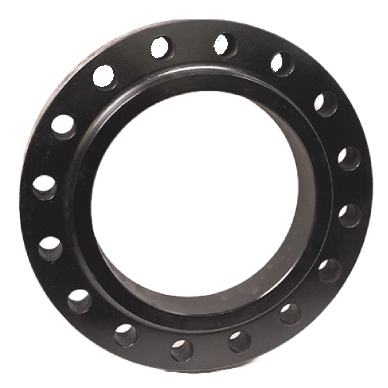

Flange outside diameter: 890mm (D)
Flange inside diameter: 616.5mm (B1)
Flange thickness (C2): 72mm
Pitch Circle Diameter (PCD): 795mm (K)
Hub height: 100mm (H1)
Neck diameter: 686mm (N2)
Raised Face Diameter: 685mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 24 off 48mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
