Bends

Integraflow supplies a full range of hygienic stainless steel bends in imperial sizes, manufactured to BS 4825 Part 1standards. Designed for hygienic pipework systems in the food, dairy, brewery, beverage, pharmaceutical, and cosmetic industries, these bends ensure smooth, clean flow transitions in process lines.

Available in:

  • 90° bends – for right-angle directional changes, with options for long or short radius depending on flow dynamics and space constraints.

  • 45° bends – used for softer directional transitions, reducing flow disruption and product hang-up.

All bends are made from high-quality 316L stainless steel, with polished internal surfaces suitable for clean-in-place (CIP) and steam-in-place (SIP) systems. Manufactured with precision radii and formed from hygienic tube to maintain consistent wall thickness and hygienic integrity.

Imperial sizes from ½” to 4” OD are available from stock, with full traceability and fast UK delivery from Integraflow.

Website List 200 (IGF)
Sort By: Name (A-Z)

Bends

0.50" OD (1/2" OD) HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 1/2" / 12.7mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 8.00 8.0 GBP In Stock
0.75" OD (3/4" OD) HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 3/4" / 19.05mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 5.36 5.36 GBP In Stock
1.00" OD HYGIENIC BEND 45° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside diameter (OD) of: 1" / 25.4mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 4.52 4.52 GBP Available to Order Enquire
1.00" OD HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 1" / 25.4mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 5.40 5.4 GBP In Stock

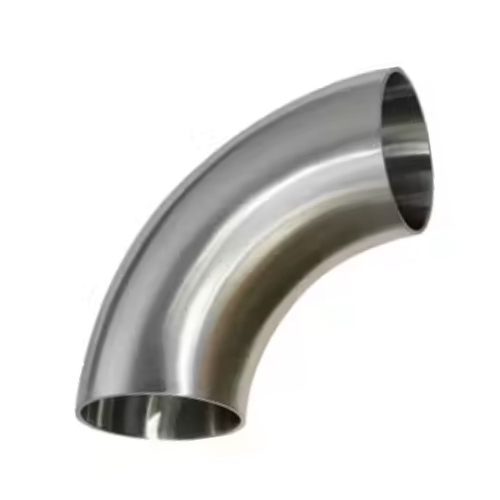

1.00" OD HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 1" / 25.4mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 25.4mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 5.60 5.6 GBP In Stock
1.25" OD HYGIENIC BEND 45° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside diameter (OD) of: 1.1/4" / 31.75mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 13.20 13.2 GBP Available to Order Enquire
1.25" OD HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 1.1/4" / 31.75mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 11.00 11.0 GBP Limited Stock
1.50" OD HYGIENIC BEND 45° (R=1.5D) POLISHED 1.5mm THK SS 304
Outside diameter (OD) of: 1.1/2" / 38.1mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 304
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 11.60 11.6 GBP Available to Order Enquire
1.50" OD HYGIENIC BEND 45° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside diameter (OD) of: 1.1/2" / 38.1mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 7.48 7.48 GBP In Stock
1.50" OD HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 1.1/2" / 38.1mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 7.48 7.48 GBP In Stock
1.50" OD HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 1.1/2" / 38.1mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 57mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 7.20 7.2 GBP In Stock
2.00" OD HYGIENIC BEND 45° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside diameter (OD) of: 2" / 50.8mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 8.08 8.08 GBP In Stock
2.00" OD HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 2" / 50.8mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 10.60 10.6 GBP In Stock
2.00" OD HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 2" / 50.8mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 76mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 9.76 9.76 GBP In Stock
2.50" (2.1/2" OD) HYGIENIC BEND 45° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside diameter (OD) of: 2.1/2" / 63.5mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 11.84 11.84 GBP In Stock
2.50" OD (2.1/2" OD) HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 2.1/2" / 63.5mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 15.96 15.96 GBP In Stock
2.50" OD (2.1/2" OD) HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 1.5mm THK SS 304
Outside Diameter (OD): 2.1/2" / 63.5mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 304
Radius: 95mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 10.56 10.56 GBP In Stock
2.50" OD (2.1/2" OD) HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 2.1/2" / 63.5mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Radius: 95mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 14.40 14.4 GBP In Stock
3.00" OD HYGIENIC BEND 45° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside diameter (OD) of: 3" / 76.2mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 16.40 16.4 GBP In Stock
3.00" OD HYGIENIC BEND 90° (R=1.5D) POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 3" / 76.2mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 21.28 21.28 GBP In Stock
3.00" OD HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 1.5mm THK SS 304
Outside Diameter (OD): 3" / 76.2mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 76mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 14.60 14.6 GBP In Stock
3.00" OD HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 1.5mm THK SS 316
Outside Diameter (OD): 3" / 76.2mm
Wall Thickness (WT): 1.5mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 76mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 19.96 19.96 GBP In Stock
4.00" OD HYGIENIC BEND 45° (R=1.5D) POLISHED 2mm THK SS 316
Outside diameter (OD) of: 4" / 101.6mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 32.80 32.8 GBP In Stock

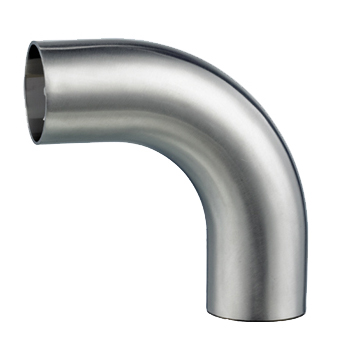

4.00" OD HYGIENIC BEND 90° (R=1.5D) POLISHED 2mm THK SS 316
Outside diameter (OD) of: 4" / 101.6mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 41.36 41.36 GBP In Stock
4.00" OD HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 2mm THK SS 304
Outside diameter (OD) of: 4" / 101.6mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 304
Radius: 101.6mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 26.20 26.2 GBP In Stock
4.00" OD HYGIENIC BEND 90° (SHORT RADIUS) 1XD POLISHED 2mm THK SS 316
Outside diameter (OD) of: 4" / 101.6mm
Wall Thickness (WT): 2mm
Material: Stainless
Grade: 316
Radius: 101mm
Angle: 90 Degree
Construction: Welded
Finish: Dull Polished Externally, Descaled Internally

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Elbows
£ 34.64 34.64 GBP In Stock
Click on "Edit" in the right panel to replace this with your own HTML code
