PN6

List 600
Sort By: Name (A-Z)

PN6

DN15 (1/2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Flat Face (RF): 40mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Flat Face (RF): 52mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN25 (1" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Flat Face (RF): 62mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 70mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 130mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 80mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN50 (2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 90mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 110mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN80 (3" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Flat Face (RF): 128mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN100 (4" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Flat Face (RF): 148mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP

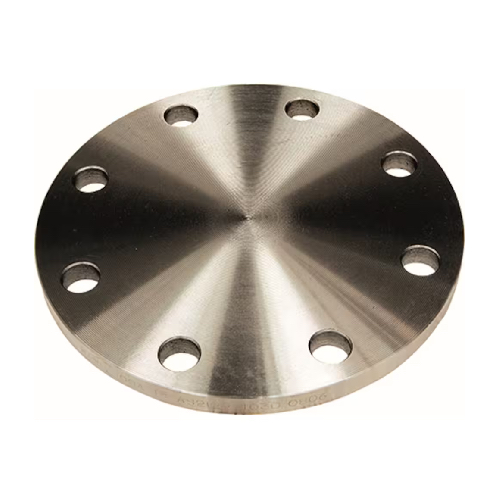

DN125 (5" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C4)
Diameter of Flat Face (RF): 178mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN150 (6" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 202mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 258mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 312mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Flat Face (RF): 365mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C4)
Diameter of Flat Face (RF): 415mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 540mm (D)
PCD: 495mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 28mm (C4)
Diameter of Flat Face (RF): 465mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C4)
Diameter of Flat Face (RF): 520mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 570mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 675mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 860mm (D)
PCD: 810mm (K)
Bolt Holes: 24 off 26mm diameter (L)
Flange Thickness: 40mm (C4)
Diameter of Flat Face (RF): 775mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN800 (32" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 975mm (D)
PCD: 918mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 44mm (C4)
Diameter of Flat Face (RF): 885mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN900 (36" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1075mm (D)
PCD: 1025mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 48mm (C4)
Diameter of Flat Face (RF): 990mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP

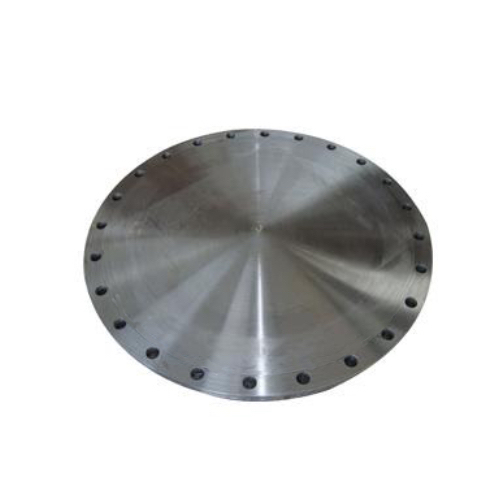

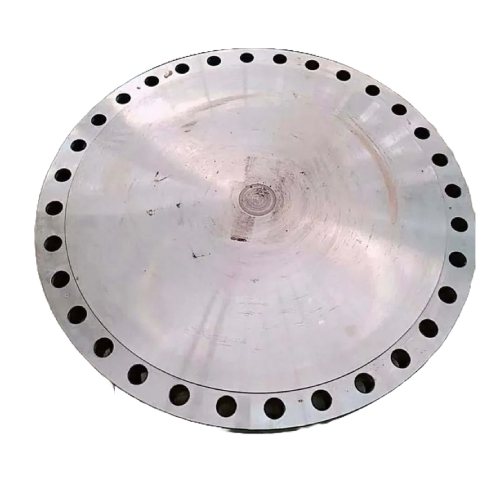

DN1000 (40" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C4)
Diameter of Flat Face (RF): 1090mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN1200 (48" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C4)
Diameter of Flat Face (RF): 1295mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
