Full Face

Website List 200 (IGF)
Sort By: Name (A-Z)

Full Face

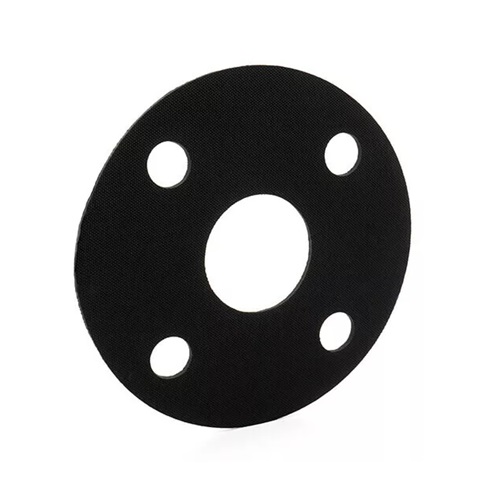

DN25 (1" NB) PN16 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 33.4mm or 25.4mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Gasket Thickness: 3mm
£ 2.52 2.52 GBP In Stock
DN80 (3" NB) PN16 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 88.9mm or 76.2mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 8 off to suit M16 Bolts
PCD: 160mm
Flange Diameter: 200mm
Gasket Thickness: 3mm
£ 10.20 10.2 GBP In Stock

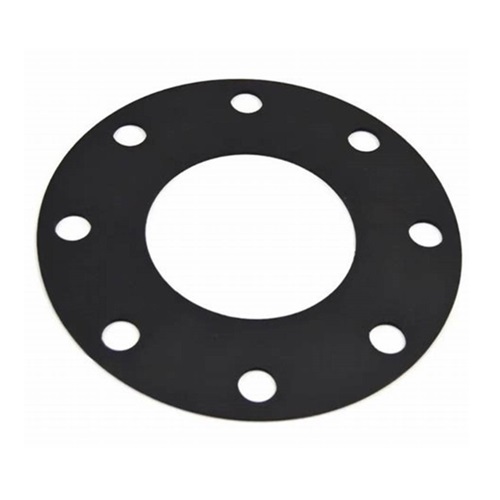

DN100 (4" NB) PN16 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 114.3mm, 104mm or 101.6mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 8 off to suit M16 Bolts
PCD: 180mm
Flange Diameter: 220mm
Gasket Thickness: 3mm
£ 7.60 7.6 GBP In Stock

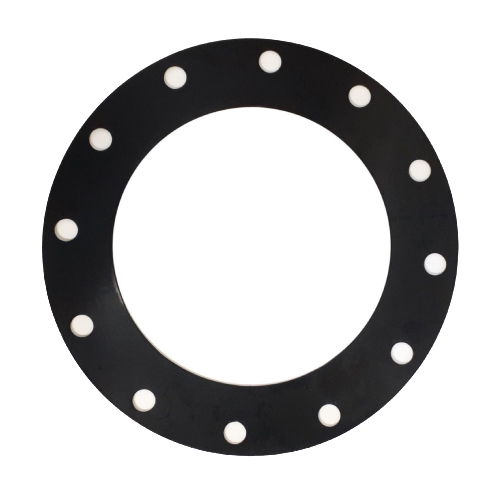

DN300 (12" NB) PN16 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 323.8mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 12 off to suit M24 Bolts
PCD: 410mm
Flange Diameter: 460mm
Gasket Thickness: 3mm
£ 20.00 20.0 GBP Available to Order Enquire
DN350 (14" NB) PN10 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 355.6mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 12 off to suit M20 Bolts
PCD: 460mm
Flange Diameter: 505mm
Gasket Thickness: 3mm
£ 26.00 26.0 GBP Available to Order Enquire
DN400 (16" NB) PN10 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 406.4mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 16 off to suit M20 Bolts
PCD: 515mm
Flange Diameter: 565mm
Gasket Thickness: 3mm
£ 34.00 34.0 GBP Available to Order Enquire
DN400 (16" NB) PN16 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 406.4mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 16 off to suit M27 Bolts
PCD: 525mm
Flange Diameter: 580mm
Gasket Thickness: 3mm
£ 33.00 33.0 GBP Available to Order Enquire
DN500 (20" NB) PN10 FULL FACE GASKET 3mm EPDM
Suits an outside diameter (OD) of: 508mm
Material: Rubber
Grade: EPDM
Standards: EN1092-1
Bolt Holes: 16 off to suit M20 Bolts
PCD: 620mm
Flange Diameter: 670mm
Gasket Thickness: 3mm
£ 44.00 44.0 GBP Available to Order Enquire
