Suits Flange Size: DN25 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN32 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN40 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN50 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN65 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN80 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN100 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN125 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN150 PN10 & PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN10/16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN200 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

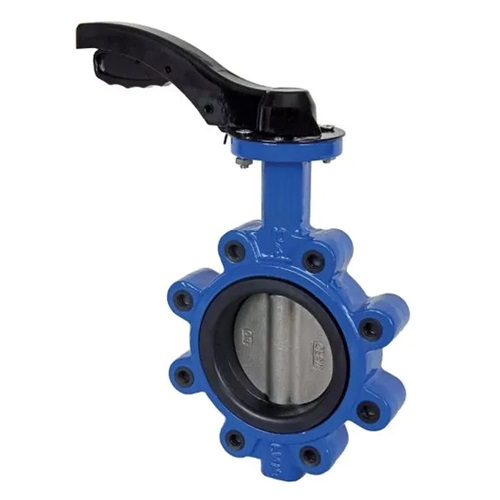

Suits Flange Size: DN250 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN300 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Locking Lever
Pressure Rating: PN16
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

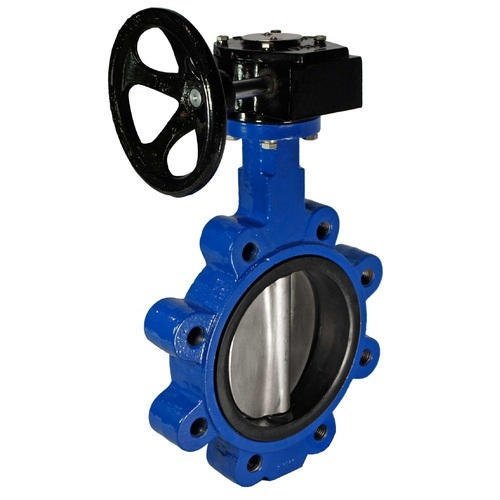

Suits Flange Size: DN350 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN400 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN450 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN500 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range

Suits Flange Size: DN600 PN16
Valve Type: Fully Lugged Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox
Pressure Rating: PN10
Temperature Range: -10°C to +120°C
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN16
Note: Gearbox operation available for all sizes – please enquire.

Part of our Isolation and Valves Range
