Elbows 45°

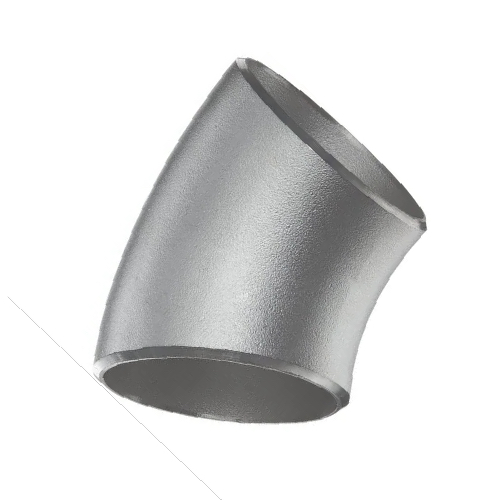

DN20 (¾" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm

Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£14.00 each

List Price – Sign in to view Trade Prices 14.0 GBP

DN25 (1" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm

Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£15.47 each

List Price – Sign in to view Trade Prices 15.47 GBP

DN25 (1" NB) SCHEDULE 40s WELDED ELBOW 45° SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.91mm
Material: Stainless
Grade: 304
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£13.16 each

List Price – Sign in to view Trade Prices 13.16 GBP

DN32 (1¼" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm

Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£23.94 each

List Price – Sign in to view Trade Prices 23.94 GBP

DN40 (1½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm

Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£26.46 each

List Price – Sign in to view Trade Prices 26.46 GBP

DN50 (2" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm

Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£37.87 each

List Price – Sign in to view Trade Prices 37.87 GBP

DN65 (2½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm

Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£81.34 each

List Price – Sign in to view Trade Prices 81.34 GBP

DN80 (3" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm

Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£90.65 each

List Price – Sign in to view Trade Prices 90.65 GBP

DN100 (4" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm

Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£185.15 each

List Price – Sign in to view Trade Prices 185.15 GBP

DN125 (5" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm

Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£360.85 each

List Price – Sign in to view Trade Prices 360.85 GBP

DN150 (6" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£486.99 each

List Price – Sign in to view Trade Prices 486.99 GBP

DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm

Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£1129.87 each

List Price – Sign in to view Trade Prices 1129.87 GBP

DN250 (10" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm

Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£1937.32 each

List Price – Sign in to view Trade Prices 1937.32 GBP
