DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£30.10 each

List Price – Sign in to view Trade Prices 30.1 GBP

DN20 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£46.34 each

List Price – Sign in to view Trade Prices 46.34 GBP

DN25 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£53.41 each

List Price – Sign in to view Trade Prices 53.41 GBP

DN32 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£73.29 each

List Price – Sign in to view Trade Prices 73.29 GBP

DN40 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 150mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 110mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£87.50 each

List Price – Sign in to view Trade Prices 87.5 GBP

DN50 PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 165mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C4): 20mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£116.83 each

List Price – Sign in to view Trade Prices 116.83 GBP

DN65 PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 185mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C4): 22mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£151.06 each

List Price – Sign in to view Trade Prices 151.06 GBP

DN80 PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 200mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C4): 24mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£315.21 each

List Price – Sign in to view Trade Prices 315.21 GBP

DN100 PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 235mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 190mm
Flange thickness (C4): 24mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£258.02 each

List Price – Sign in to view Trade Prices 258.02 GBP

DN125 PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£620.20 each

List Price – Sign in to view Trade Prices 620.2 GBP

DN150 PN25 / PN40 RF BLIND FLANGE SS 304

Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£492.45 each

List Price – Sign in to view Trade Prices 492.45 GBP

DN200 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

£1692.95 each

List Price – Sign in to view Trade Prices 1692.95 GBP

DN250 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 450mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 33mm
Pitch circle diameter (K): 385mm
Flange thickness (C4): 38mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN300 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN350 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 580mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 36mm
Pitch circle diameter (K): 510mm
Flange thickness (C4): 46mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

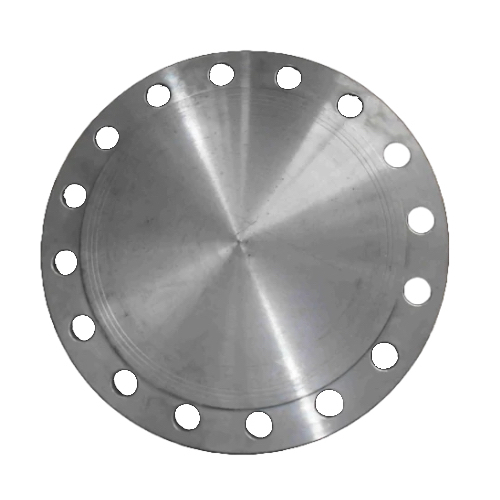

DN400 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 660mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 39mm
Pitch circle diameter (K): 585mm
Flange thickness (C4): 50mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

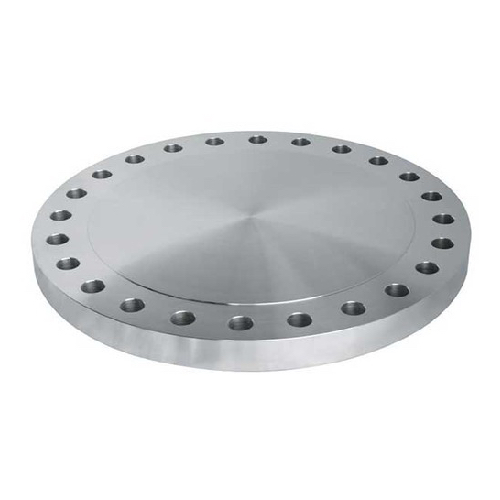

DN450 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 685mm
Drilling (No. x Bolt Holes x L): 20 x M39 x 39mm
Pitch circle diameter (K): 610mm
Flange thickness (C4): 57mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN500 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 755mm
Drilling (No. x Bolt Holes x L): 20 x M45 x 42mm
Pitch circle diameter (K): 670mm
Flange thickness (C4): 57mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN600 PN40 RF BLIND FLANGE SS 304

Flange OD (D): 890mm
Drilling (No. x Bolt Holes x L): 20 x M36 x 48mm
Pitch circle diameter (K): 795mm
Flange thickness (C4): 72mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP
