Welded Schedule API5L

Welded Carbon Steel Linepipe – ANSI API 5L

Integraflow supplies welded API 5L carbon steel linepipe in Schedule 20, Standard Weight (STD), and Schedule 40, with black varnished finish and chamfered ends as standard, sourced from both European and Far Eastern mills and available with full BS EN 10204 3.1 material certification, suitable for industrial pipeline, gas, and process applications.

List 600
Sort By: Name (A-Z)

Welded Schedule API5L

DN150 (6" NB) SCHEDULE 40/STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 28.23 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP

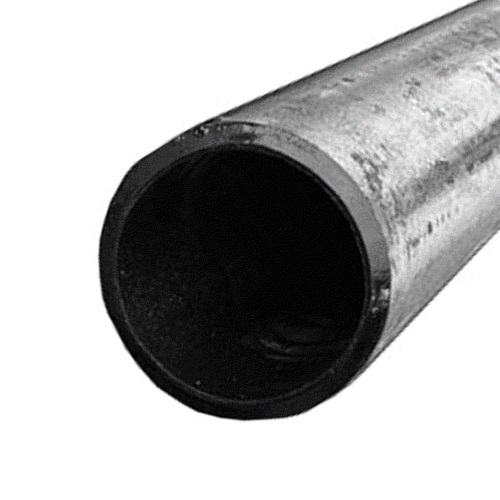

DN200 (8" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 33.2 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
£ 256.83 256.83 GBP
DN200 (8" NB) SCHEDULE 40/STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 8.18mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 42.55 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN250 (10" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 273mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 41.76 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN250 (10" NB) SCHEDULE 40/STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 273mm
Wall Thickness (WT): 9.27mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 60.29 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN300 (12" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 6.35mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 49.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN300 (12" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 10.31mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 79.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
£ 1,442.00 1442.0 GBP
DN300 (12" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 323.9mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 73.86 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
£ 560.00 560.0 GBP
DN350 (14" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 67.91 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN350 (14" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 11.13mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 94.55 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN350 (14" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 355.6mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 81.33 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN400 (16" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 77.83 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN400 (16" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 123.31 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN400 (16" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 406.4mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 93.27kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 7.92mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 87.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 14.27mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 155.81 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 105.17kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 508mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 117.15 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 508mm
Wall Thickness (WT): 15.09mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 183.43 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 457mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 117.15kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 610mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 141.12 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 40 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 610mm
Wall Thickness (WT): 17.48mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 255.43 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE STD API 5L GR.B WELDED PIPE
Outside Diameter (OD): 610mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule Standard Weight ASME B36.10 / B36.19 EN10217-2
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 141.12kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN700 (28" NB) SCHEDULE 20 API 5L GR.B WELDED PIPE
Outside Diameter (OD): 711mm
Wall Thickness (WT): 12.7mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Schedule 20 ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 218.71 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN700 (28" NB) STANDARD WEIGHT API 5L GR.B WELDED (LSAW) PIPE
Outside Diameter (OD): 711mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 164.86 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
£ 1,890.00 1890.0 GBP
DN800 (32" NB) STANDARD WEIGHT API 5L GR.B WELDED (LSAW) PIPE
Outside Diameter (OD): 813mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel Pipe
Grade: API 5L / P265 GH
Standards: ASTM / ANSI Standard Weight ASME B36.10 / B36.19
Random Length: 5.8 to 7.5 meters
Weight Per Meter: 188.83 kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
£ 2,275.00 2275.0 GBP
