Elbows 90°

DN15 (½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£9.38 each

List Price – Sign in to view Trade Prices 9.38 GBP

DN20 (¾" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£12.67 each

List Price – Sign in to view Trade Prices 12.67 GBP

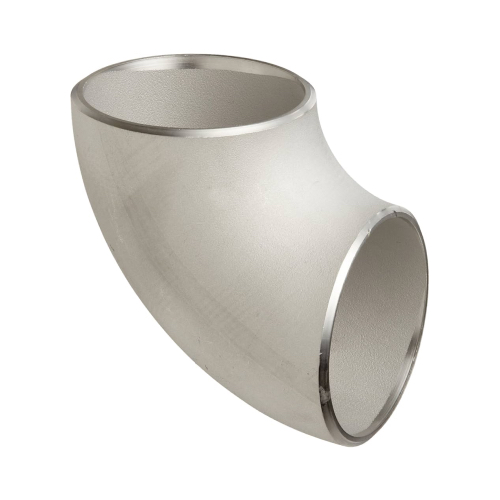

DN20 (¾" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£12.46 each

List Price – Sign in to view Trade Prices 12.46 GBP

DN25 (1" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£14.42 each

List Price – Sign in to view Trade Prices 14.42 GBP

DN25 (1" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 25.4mm
Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£12.46 each

List Price – Sign in to view Trade Prices 12.46 GBP

DN25 (1" NB) SCHEDULE 40s WELDED ELBOW 90° SS 304

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.91mm
Material: Stainless
Grade: 304
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£33.60 each

List Price – Sign in to view Trade Prices 33.6 GBP

DN32 (1¼" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 47.6mm
Schedule: A403 Welded
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£24.64 each

List Price – Sign in to view Trade Prices 24.64 GBP

DN32 (1¼" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£36.40 each

List Price – Sign in to view Trade Prices 36.4 GBP

DN40 (1½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 57.1mm
Schedule: A403 Welded
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£22.47 each

List Price – Sign in to view Trade Prices 22.47 GBP

DN40 (1½" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£20.51 each

List Price – Sign in to view Trade Prices 20.51 GBP

DN50 (2" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£33.39 each

List Price – Sign in to view Trade Prices 33.39 GBP

DN50 (2" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 50.8mm
Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£57.54 each

List Price – Sign in to view Trade Prices 57.54 GBP

DN65 (2½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 95.2mm
Schedule: A403 Welded
Weight: 1.46kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£76.02 each

List Price – Sign in to view Trade Prices 76.02 GBP

DN65 (2½" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 63.5mm
Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£59.92 each

List Price – Sign in to view Trade Prices 59.92 GBP

DN80 (3" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£92.68 each

List Price – Sign in to view Trade Prices 92.68 GBP

DN80 (3" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£71.54 each

List Price – Sign in to view Trade Prices 71.54 GBP

DN100 (4" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 4.2kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£164.85 each

List Price – Sign in to view Trade Prices 164.85 GBP

DN100 (4" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 101.6mm
Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£131.60 each

List Price – Sign in to view Trade Prices 131.6 GBP

DN125 (5" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 190.0mm
Schedule: A403 Welded
Weight: 6.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£342.16 each

List Price – Sign in to view Trade Prices 342.16 GBP

DN125 (5" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 127.0mm
Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£269.78 each

List Price – Sign in to view Trade Prices 269.78 GBP

DN150 (6" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£494.76 each

List Price – Sign in to view Trade Prices 494.76 GBP

DN150 (6" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£465.50 each

List Price – Sign in to view Trade Prices 465.5 GBP

DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£942.55 each

List Price – Sign in to view Trade Prices 942.55 GBP

DN200 (8" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£1065.82 each

List Price – Sign in to view Trade Prices 1065.82 GBP

DN250 (10" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 381.0mm
Schedule: A403 Welded
Weight: 36.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£2789.50 each

List Price – Sign in to view Trade Prices 2789.5 GBP

DN250 (10" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 254.0mm
Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£1699.46 each

List Price – Sign in to view Trade Prices 1699.46 GBP
