Elbows 90°

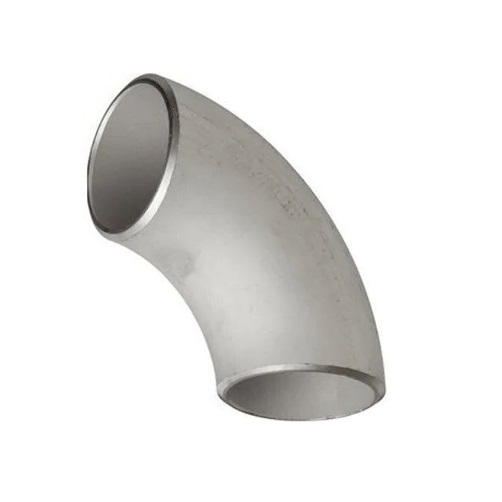

DN15 (½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£10.29 each

List Price – Sign in to view Trade Prices 10.29 GBP

DN20 (¾" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£12.74 each

List Price – Sign in to view Trade Prices 12.74 GBP

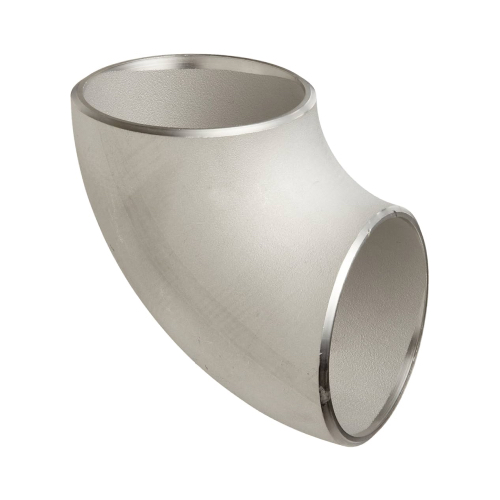

DN20 (¾" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£15.61 each

List Price – Sign in to view Trade Prices 15.61 GBP

DN25 (1" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£15.68 each

List Price – Sign in to view Trade Prices 15.68 GBP

DN25 (1" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm
Centre to Face: 25.4mm
Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£12.81 each

List Price – Sign in to view Trade Prices 12.81 GBP

DN25 (1" NB) SCHEDULE 10s WELDED ELBOW 90° SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 2.77mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£15.82 each

List Price – Sign in to view Trade Prices 15.82 GBP

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm
Centre to Face: 47.6mm
Schedule: A403 Welded
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£21.49 each

List Price – Sign in to view Trade Prices 21.49 GBP

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm
Centre to Face: 31.75mm
Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£18.13 each

List Price – Sign in to view Trade Prices 18.13 GBP

DN40 (1½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm
Centre to Face: 57.1mm
Schedule: A403 Welded
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£25.06 each

List Price – Sign in to view Trade Prices 25.06 GBP

DN40 (1½" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£40.67 each

List Price – Sign in to view Trade Prices 40.67 GBP

DN50 (2" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£37.24 each

List Price – Sign in to view Trade Prices 37.24 GBP

DN50 (2" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm
Centre to Face: 50.8mm
Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£28.42 each

List Price – Sign in to view Trade Prices 28.42 GBP

DN65 (2½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm
Centre to Face: 95.2mm
Schedule: A403 Welded
Weight: 1.46kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£61.11 each

List Price – Sign in to view Trade Prices 61.11 GBP

DN65 (2½" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm
Centre to Face: 63.5mm
Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£46.76 each

List Price – Sign in to view Trade Prices 46.76 GBP

DN80 (3" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£84.49 each

List Price – Sign in to view Trade Prices 84.49 GBP

DN80 (3" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£64.82 each

List Price – Sign in to view Trade Prices 64.82 GBP

DN100 (4" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 4.2kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£115.50 each

List Price – Sign in to view Trade Prices 115.5 GBP

DN100 (4" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm
Centre to Face: 101.6mm
Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£108.29 each

List Price – Sign in to view Trade Prices 108.29 GBP

DN100 (4" NB) SCHEDULE 10s WELDED ELBOW 90° SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness (WT): 3.05mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£147.00 each

List Price – Sign in to view Trade Prices 147.0 GBP

DN125 (5" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm
Centre to Face: 190.0mm
Schedule: A403 Welded
Weight: 6.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£234.08 each

List Price – Sign in to view Trade Prices 234.08 GBP

DN125 (5" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm
Centre to Face: 127.0mm
Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£180.46 each

List Price – Sign in to view Trade Prices 180.46 GBP

DN150 (6" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£349.65 each

List Price – Sign in to view Trade Prices 349.65 GBP

DN150 (6" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£245.21 each

List Price – Sign in to view Trade Prices 245.21 GBP

DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£654.29 each

List Price – Sign in to view Trade Prices 654.29 GBP

DN200 (8" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£458.08 each

List Price – Sign in to view Trade Prices 458.08 GBP

DN250 (10" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm
Centre to Face: 381.0mm
Schedule: A403 Welded
Weight: 36.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£1263.99 each

List Price – Sign in to view Trade Prices 1263.99 GBP

DN250 (10" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm
Centre to Face: 254.0mm
Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£1043.70 each

List Price – Sign in to view Trade Prices 1043.7 GBP
