Pipe

Integraflow supplies premium-grade hygienic stainless steel tube suitable for high-purity process systems across the food, dairy, beverage, pharmaceutical, and cosmetic industries. Our tube is manufactured from 304 & 316L stainless steel and polished to industry standards including BS 4825, DIN 11850, and ASME BPE.

We stock both metric and imperial sizes with OD/ID finishes designed for clean-in-place (CIP) and steam-in-place (SIP) systems. Tube is available in a variety of surface finishes, including mechanically polished and electropolished options, to reduce bacterial retention and improve flow performance.

All tube is corrosion-resistant, fully traceable, and supplied with mill test certificates. Available for fast dispatch across the UK, with cut-to-length options available on request.

List 600
Sort By: Name (A-Z)

Pipe

DN25 (29mm OD) X 1.5mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 29mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.03kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 42.56 42.56 GBP
DN32 (35mm OD) X 1.5mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 35mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.26kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 47.88 47.88 GBP
DN40 (41mm OD) X 1.5mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 41mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.5kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 73.15 73.15 GBP
DN50 (53mm OD) X 1.5mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 53mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.94kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 74.76 74.76 GBP

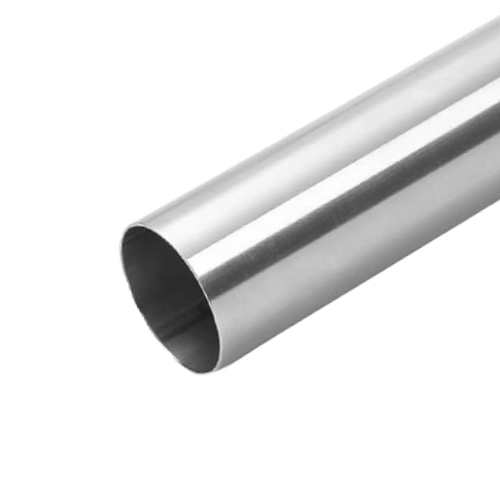

DN65 (70mm OD) X 2.0mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 70mm
Wall Thickness: 2.0mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 3.43kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 133.00 133.0 GBP
DN80 (85mm OD) X 2.0mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 85mm
Wall Thickness: 2.0mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 4.16kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 156.10 156.1 GBP

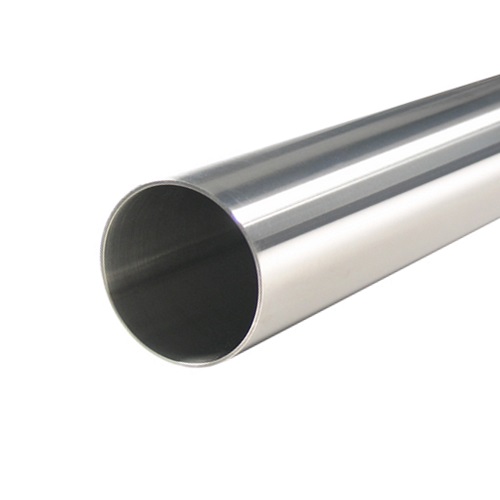

0.50" (1/2" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 1/2" (12.7mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.51kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 30.10 30.1 GBP
0.75" (3/4" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 3/4" (19.05mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.81kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 37.10 37.1 GBP
1.00" (1" OD) X 1.5mm WALL HYGIENIC PIPE 304 SS
Outside diameter: 1" (25.4mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.99kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 25.20 25.2 GBP
1.00" (1" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 1" (25.4mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 0.99kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 36.40 36.4 GBP
1.25" (1.1/4" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 1.1/4" (31.75mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.23kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 45.50 45.5 GBP
1.50" (1.1/2" OD) X 1.5mm WALL HYGIENIC PIPE 304 SS
Outside diameter: 1.1/2" (38.1mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.51kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 41.30 41.3 GBP
1.50" (1.1/2" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 1.1/2" (38.1mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.51kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 62.30 62.3 GBP
2.00" (2" OD) X 1.5mm WALL HYGIENIC PIPE 304 SS
Outside diameter: 2" (38.1mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.88kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 50.40 50.4 GBP
2.00" (2" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 2" (38.1mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.88kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 70.00 70.0 GBP
2.50" (2.1/2" OD) X 1.5mm WALL HYGIENIC PIPE 304 SS
Outside diameter: 2.1/2" (63.5mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 2.49kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 72.45 72.45 GBP
2.50" (2.1/2" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 2.1/2" (63.5mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 2.49kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 90.65 90.65 GBP
3.00" (3" OD) X 1.5mm WALL HYGIENIC PIPE 304 SS
Outside diameter: 3" (76.2mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 3.01kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 73.50 73.5 GBP
3.00" (3" OD) X 1.5mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 3" (76.2mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 3.01kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 104.30 104.3 GBP
4.00" (4" OD) X 1.5mm WALL HYGIENIC PIPE 304 SS
Outside diameter: 4" (101.6mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 4.56kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 94.50 94.5 GBP
4.00" (4" OD) X 2.0mm WALL HYGIENIC PIPE 304 SS
Outside diameter: 4" (101.6mm)
Wall Thickness: 2mm
Material: Stainless
Grade: 304
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 5.02kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 164.50 164.5 GBP
4.00" (4" OD) X 2.0mm WALL HYGIENIC PIPE 316 SS
Outside diameter: 4" (101.6mm)
Wall Thickness: 2mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 5.02kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 190.40 190.4 GBP
DN100 (104mm OD) X 2.0mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 104mm
Wall Thickness: 2.0mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 5.03kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 218.12 218.12 GBP
