DN15 (1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN20 (3/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN25 (1 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN32 (1"1/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

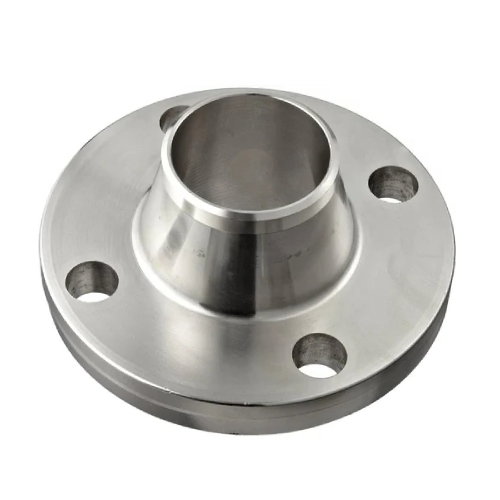

DN40 (1"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

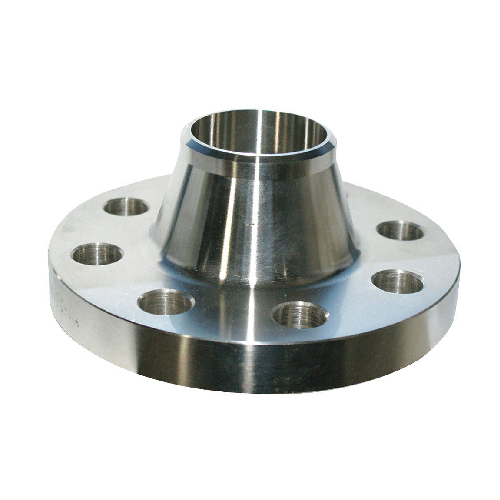

DN50 (2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN65 (2"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN80 (3" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN100 (4" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Hub height (X): 146.0mm
Length through hub (A): 114.3mm
Bolt circle diameter (K): 203.2mm
Overall height (Y): 85.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 11.9kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN125 (5" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Hub height (X): 177.8mm
Length through hub (A): 141.2mm
Bolt circle diameter (K): 234.9mm
Overall height (Y): 98.5mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 15.2kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN150 (6" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

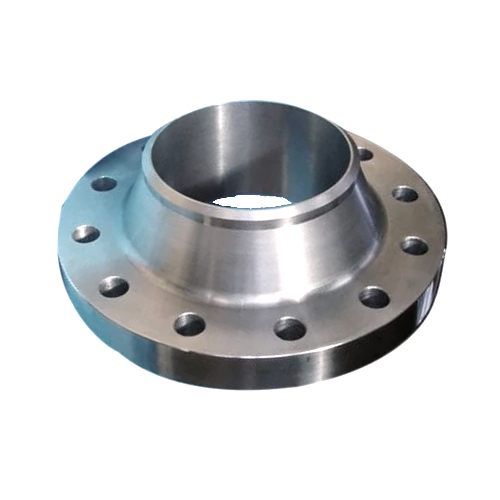

DN200 (8" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

DN250 (10" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP Available to Order Enquire

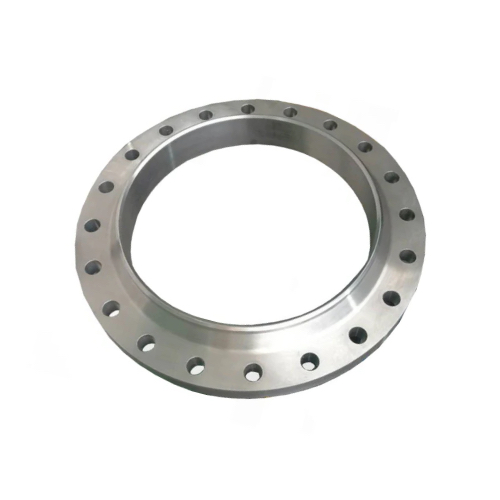

DN300 (12" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg

Part of our Flanges and Flanged Connections Range
