316

DN10 (3/8" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 75mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 50mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 80mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 55mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 90mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN25 (1" NB) BSPP PN6 BOSSED THREADED FLANGE SS 316/L
Suits an outside diameter (OD) of: 33.4mm
Thread Type: BSP Parallel
Material: Stainless
Grade: 316/L
Standards: PN6 - EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 75mm
Flange Diameter: 100mm
Flange Thickness: 14mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded, Screwed Flange, Tapped, BSPP Parallel, Stainless steel
£ 52.78 52.78 GBP
DN25 (1" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 100mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN32 (1 1/4" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 120mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 90mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1 1/4"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN40 (1 1/2" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 130mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 100mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP

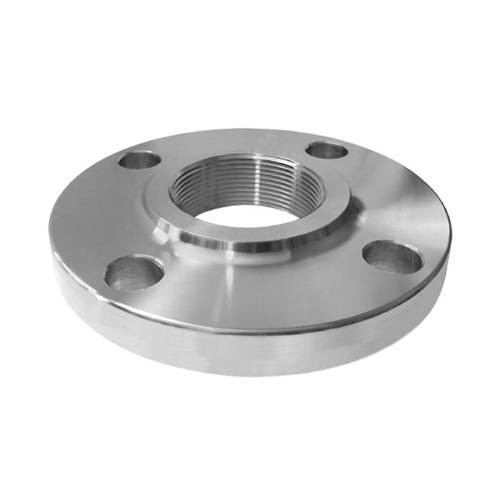

DN50 (2" NB) BSPP PN6 BOSSED THREADED FLANGE SS 316/L
Suits an outside diameter (OD) of: 60.3mm
Thread Type: BSP Taper
Material: Stainless
Grade: 316/L
Standards: PN6 - EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 110mm
Flange Diameter: 140mm
Flange Thickness: 14mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded, Screwed Flange, Tapped, BSPP Parallel, Stainless steel
£ 91.56 91.56 GBP
DN50 (2" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 140mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN65 (2 1/2" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 160mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 130mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2 1/2"
Bolt Holes: 4 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN80 (3" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 190mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 150mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 3"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN100 (4" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 210mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 170mm (K)
Flange hub height: 34mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 4"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 240mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 200mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP

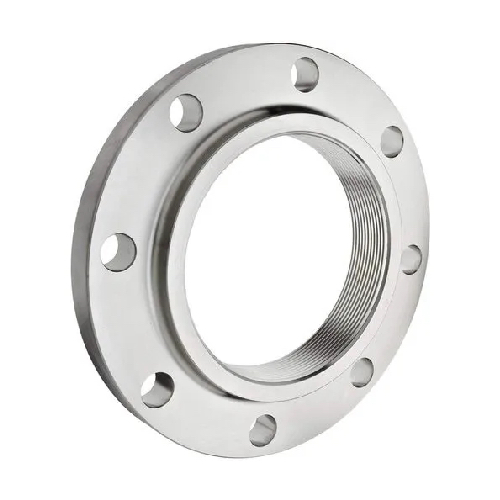

DN150 (6" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
Contact us for pricing 0.0 GBP
