Stainless Steel Slip-On Plate Flanges – EN1092-1, PN6 to PN40

Integraflow supplies EN1092-1 stainless steel slip-on plate flanges in 304 (1.4301) and 316/L (1.4404) grades, covering PN6, PN10, PN16, PN25, and PN40 pressure ratings, sourced from European and Far Eastern mills, and supplied with full BS EN 10204 3.1 certification, providing a versatile solution for low- to medium-pressure pipeline connections across industrial and process systems.

List 600
Sort By: Name (A-Z)

EN1092-1

DN15 (1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£25.34 each
List Price – Sign in to view Trade Prices 25.34 GBP
DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£37.24 each
List Price – Sign in to view Trade Prices 37.24 GBP
DN20 (3/4" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 52mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 52mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£36.54 each
List Price – Sign in to view Trade Prices 36.54 GBP
DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£48.86 each
List Price – Sign in to view Trade Prices 48.86 GBP
DN25 (1" NB) PN16 RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 16mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£81.90 each
List Price – Sign in to view Trade Prices 81.9 GBP
DN25 (1" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 62mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN25 (1" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 62mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£32.90 each
List Price – Sign in to view Trade Prices 32.9 GBP
DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£41.86 each
List Price – Sign in to view Trade Prices 41.86 GBP
DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£59.78 each
List Price – Sign in to view Trade Prices 59.78 GBP
DN32 (1.1/4" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£67.62 each
List Price – Sign in to view Trade Prices 67.62 GBP

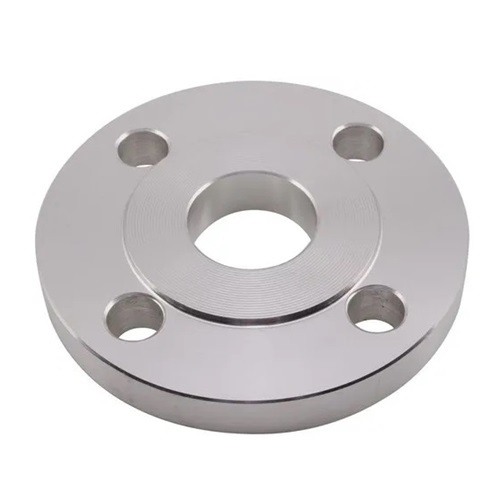

DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£102.20 each
List Price – Sign in to view Trade Prices 102.2 GBP
DN40 (1.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 130mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 130mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£81.27 each
List Price – Sign in to view Trade Prices 81.27 GBP
DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£114.10 each
List Price – Sign in to view Trade Prices 114.1 GBP
DN50 (2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£18.90 each
List Price – Sign in to view Trade Prices 18.9 GBP
DN50 (2" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£18.90 each
List Price – Sign in to view Trade Prices 18.9 GBP
DN50 (2" NB) PN6 RF SLIP ON PLATE FLANGE SS 316/L
Suits an outside diameter (OD) of: 60.3mm
Material: Stainless
Grade: 316/L
Standards: PN6 - EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 110mm
Flange Diameter: 140mm
Flange Thickness: 16mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£80.71 each
List Price – Sign in to view Trade Prices 80.71 GBP
DN50 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£74.55 each
List Price – Sign in to view Trade Prices 74.55 GBP
DN50 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£113.82 each
List Price – Sign in to view Trade Prices 113.82 GBP
DN50 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN50 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 73/76.2mm
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
£89.46 each
List Price – Sign in to view Trade Prices 89.46 GBP
DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 73/76.2mm
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
£98.21 each
List Price – Sign in to view Trade Prices 98.21 GBP
DN65 (2.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£89.46 each
List Price – Sign in to view Trade Prices 89.46 GBP
DN65 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£130.27 each
List Price – Sign in to view Trade Prices 130.27 GBP
DN65 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN80 (3" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN80 (3" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£137.55 each
List Price – Sign in to view Trade Prices 137.55 GBP
DN80 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£94.57 each
List Price – Sign in to view Trade Prices 94.57 GBP
DN80 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£135.03 each
List Price – Sign in to view Trade Prices 135.03 GBP
DN80 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN80 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 (4" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 (4" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£154.00 each
List Price – Sign in to view Trade Prices 154.0 GBP
DN100 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£115.01 each
List Price – Sign in to view Trade Prices 115.01 GBP
DN100 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£173.46 each
List Price – Sign in to view Trade Prices 173.46 GBP
DN100 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 235mm (D)
PCD: 190mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 235mm (D)
PCD: 190mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£154.77 each
List Price – Sign in to view Trade Prices 154.77 GBP
DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£216.23 each
List Price – Sign in to view Trade Prices 216.23 GBP
DN125 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 270mm (D)
PCD: 220mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 270mm (D)
PCD: 220mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) (168.3mm) PN16 RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£192.29 each
List Price – Sign in to view Trade Prices 192.29 GBP
DN150 (6" NB) (168.3mm) PN16 RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£289.45 each
List Price – Sign in to view Trade Prices 289.45 GBP
DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M24 Bolts
PCD: 250mm
Flange Diameter: 300mm
Flange Thickness: 30mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£105.70 each
List Price – Sign in to view Trade Prices 105.7 GBP
DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M24 Bolts
PCD: 250mm
Flange Diameter: 300mm
Flange Thickness: 30mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£105.70 each
List Price – Sign in to view Trade Prices 105.7 GBP
DN150 (6" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£210.00 each
List Price – Sign in to view Trade Prices 210.0 GBP
DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£192.29 each
List Price – Sign in to view Trade Prices 192.29 GBP
DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£289.45 each
List Price – Sign in to view Trade Prices 289.45 GBP
DN150 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 300mm (D)
PCD: 250mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 300mm (D)
PCD: 250mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN10 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£352.52 each
List Price – Sign in to view Trade Prices 352.52 GBP
DN200 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£517.51 each
List Price – Sign in to view Trade Prices 517.51 GBP
DN200 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£261.73 each
List Price – Sign in to view Trade Prices 261.73 GBP
DN200 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£407.82 each
List Price – Sign in to view Trade Prices 407.82 GBP
DN200 PN25 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN25 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 PN10 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 395mm (D)
PCD: 350mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£444.85 each
List Price – Sign in to view Trade Prices 444.85 GBP
DN250 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 395mm (D)
PCD: 350mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£659.89 each
List Price – Sign in to view Trade Prices 659.89 GBP
DN250 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 405mm (D)
PCD: 355mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 29mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£427.63 each
List Price – Sign in to view Trade Prices 427.63 GBP
DN250 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 405mm (D)
PCD: 355mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 29mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£610.68 each
List Price – Sign in to view Trade Prices 610.68 GBP
DN250 PN25 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 425mm (D)
PCD: 370mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 PN25 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 425mm (D)
PCD: 370mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 450mm (D)
PCD: 385mm (K)
Bolt Holes: 12 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 450mm (D)
PCD: 385mm (K)
Bolt Holes: 12 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 PN10 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£492.80 each
List Price – Sign in to view Trade Prices 492.8 GBP
DN300 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£738.36 each
List Price – Sign in to view Trade Prices 738.36 GBP
DN300 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£597.80 each
List Price – Sign in to view Trade Prices 597.8 GBP
DN300 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£854.70 each
List Price – Sign in to view Trade Prices 854.7 GBP
DN300 PN25 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 PN25 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 515mm (D)
PCD: 450mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 515mm (D)
PCD: 450mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 PN10 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 505mm (D)
PCD: 460mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£843.50 each
List Price – Sign in to view Trade Prices 843.5 GBP
DN350 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 505mm (D)
PCD: 460mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£1224.09 each
List Price – Sign in to view Trade Prices 1224.09 GBP
DN350 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 520mm (D)
PCD: 470mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£985.53 each
List Price – Sign in to view Trade Prices 985.53 GBP
DN350 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 520mm (D)
PCD: 470mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£1381.31 each
List Price – Sign in to view Trade Prices 1381.31 GBP
