Flange Adaptors

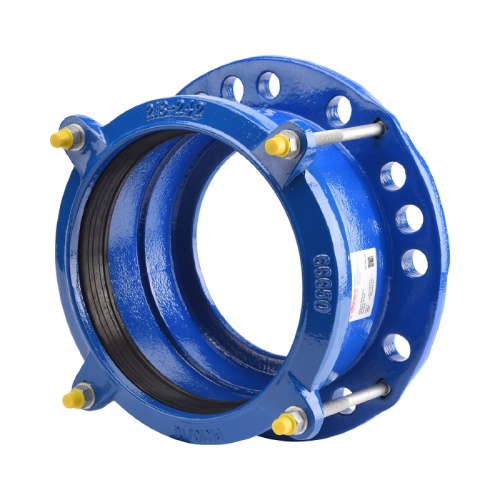

Closing Range on Pipe Diameter: 54mm (Stainless Metric)
Working Pressure: 16 Bar

Part of our Flanges and Flanged Connections Range

Closing Range on Pipe Diameter: 104mm (Stainless Metric)
Working Pressure: 16 Bar

Part of our Flanges and Flanged Connections Range

Closing Range on Pipe Diameter: 107-130mm
Working Pressure: 16 Bar

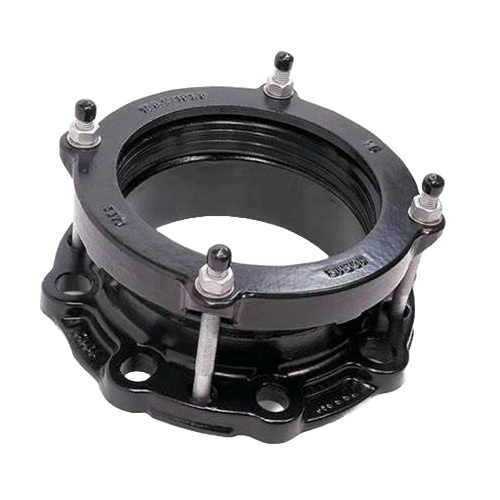

Closing Range on Pipe Diamter: 189mm to 212mm
Working Pressure: 16 Bar
Test Pressure: 24 Bar
Adaptor Body & End Ring: Ductile Iron BS EN1563: 2011
Bolt Holes: 12 off
Mutli PCD:

8 Elongated Holes for 8" Table D & PN10
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

12 Elongated Holes for 8" PN16
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

Tee Bolts: M12 x 125mm

Note: MaxiFit Flange Adaptors DO NOT Resist End Load.

Other compatable flange drillings: ANSI/ASA125 & ANSI/ASA150.

Closing Range on Pipe Diamter: 218mm to 224mm
Working Pressure: 16 Bar
Test Pressure: 24 Bar
Adaptor Body & End Ring: Ductile Iron BS EN1563: 2011
Bolt Holes: 12 off
Mutli PCD:

8 Elongated Holes for 8" Table D & PN10
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

12 Elongated Holes for 8" PN16
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

Tee Bolts: M12 x 125mm

Note: MaxiFit Flange Adaptors DO NOT Resist End Load.

Other compatable flange drillings: ANSI/ASA125 & ANSI/ASA150.
