Hinged Clips
Integraflow supplies a versatile range of Hinged Pipe Clips, designed for quick access, secure mounting, and easy cleaning in hygienic stainless steel process systems. The hinged body design allows operators to open the clip without removing hardware, making them ideal for lines requiring frequent inspection, disassembly, or maintenance.
Commonly used in food, dairy, beverage, pharmaceutical, and cleanroom applications, these clips are available with or without anti-vibration inserts and in either 304 or 316L stainless steel.
Key Features:
2-part hinged body design with quick-release locking
Made from 304 or 316L stainless steel
Pipe sizes from DN10 to DN150 (1/2” to 6”)
Smooth, polished surfaces with crevice-free construction
Supplied with or without EPDM, Silicone, Viton, or PTFE inserts
Available with M8/M10 boss, plain weld stem, or base plate mounting
Mounting Options:
Weld stem for fixed position support

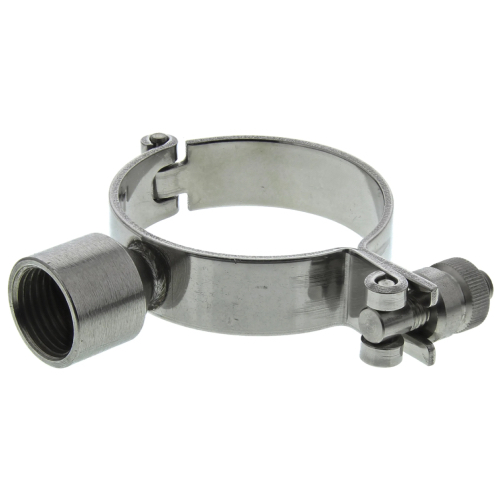

M10 bossed version for threaded rod suspension
Flat base or stand-off mounting plates available for wall/floor mounting
Compatible with vertical and horizontal pipe installations
Insert Benefits (Optional):
Minimises vibration and noise
Prevents metal-on-metal contact
Enhances pipe stability and protects welds
Inserts available for CIP/SIP and FDA/USP Class VI environments
Applications:
Hygienic food & dairy pipework
Process skids and packaging lines
Cleanroom and biotech piping systems
Lines requiring regular visual inspection or quick removal
