Closing Range on Pipe Diamter: 132mm to 146mm

Closing Range on Pipe Diameter: 104mm (Stainless Metric)
Working Pressure: 16 Bar

Closing Range on Pipe Diameter: 107-130mm
Working Pressure: 16 Bar

Outside Diameter (OD): 118mm
Wall Thickness (WT): 4.4mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Bend, Elbow, 45°

Outside Diameter (OD): 118mm
Wall Thickness (WT): 4.4mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Bend, Elbow, 90°

Outside Diameter (OD): 118mm
Wall Thickness (WT): 4.4mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Bend, Elbow, 90°

Outside Diameter (OD): 118mm
Wall Thickness (WT): 4.4mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Bend, Elbow, 90°

Outside Diameter (OD): 118mm
Wall Thickness (WT): 4.45mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
End A: Flanged PN16
End B: Plan

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Straight, Spool

Outside Diameter (OD): 170mm
Wall Thickness (WT): 4.45mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Bend, Elbow, 45°

Outside Diameter (OD): 170mm
Wall Thickness (WT): 4.45mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Bend, Elbow, 90°

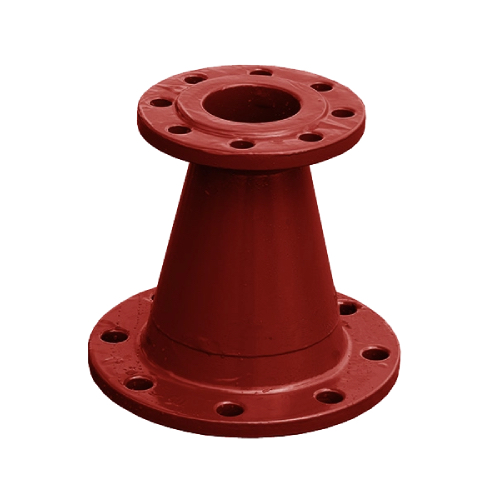

6" X 4" Concentric Flanged Reducer
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Reducer, Taper, Concentric

Closing Range on Pipe Diamter: 189mm to 212mm
Working Pressure: 16 Bar
Test Pressure: 24 Bar
Adaptor Body & End Ring: Ductile Iron BS EN1563: 2011
Bolt Holes: 12 off
Mutli PCD:

8 Elongated Holes for 8" Table D & PN10
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

12 Elongated Holes for 8" PN16
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

Tee Bolts: M12 x 125mm

Note: MaxiFit Flange Adaptors DO NOT Resist End Load.

Other compatable flange drillings: ANSI/ASA125 & ANSI/ASA150.

Outside Diameter (OD): 316mm
Wall Thickness (WT): 6.6mm
Material: Ductile Iron
Standards: EN598
Construction: Cast
Finish: Red Painted
Ends: Flanged PN16

Applications:
Waste Water Treatment Plant

Alternative terminology:
Ductile iron, Red Oxide / Epoxy, EN598, Waste, Bend, Elbow, 90°
