Seamless

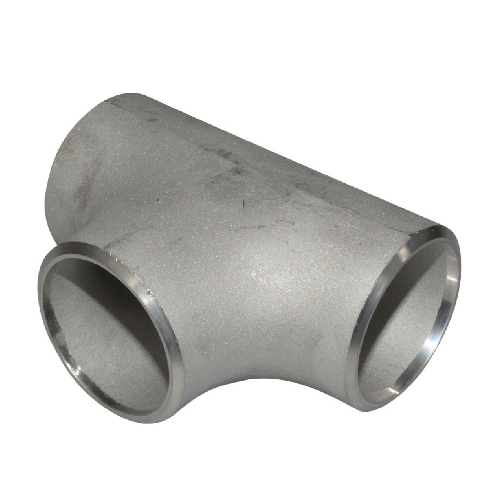

DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 40s
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 13.84 13.84 GBP Available to Order Enquire
DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: 40s
Weight: 0.11kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 15.36 15.36 GBP Available to Order Enquire

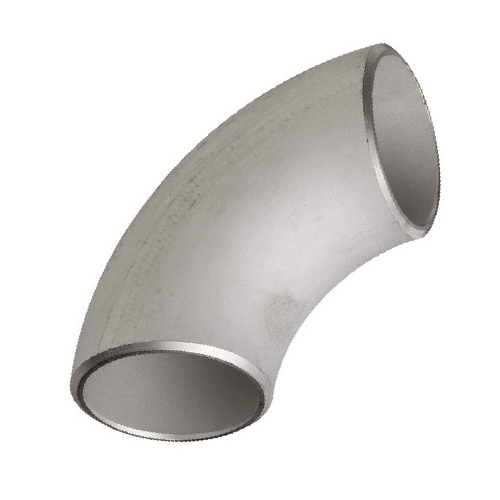

DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN15 (½" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 (¾" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to End: 28.6mm
Schedule: 40s
Weight: 0.16kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 18.44 18.44 GBP Available to Order Enquire
DN20 (¾" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to End: 28.6mm
Schedule: 40s
Weight: 0.16kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 18.12 18.12 GBP Available to Order Enquire
DN20 (¾" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 (¾" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Seamless
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire

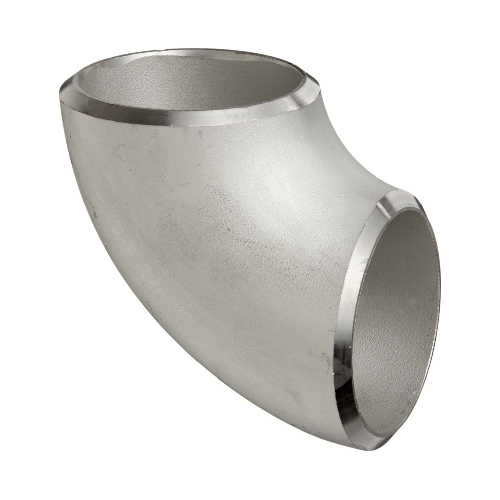

DN20 (¾" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Seamless
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 (¾" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Seamless
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 X DN15 (¾" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 X DN15 (¾" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 X DN15 (¾" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 X DN15 (¾" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 x DN15 (3/4 x 1/2" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 40s
Weight: 0.27kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 x DN15 (3/4 x 1/2" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: 40s
Weight: 0.27kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to End: 38.1mm
Schedule: 40s
Weight: 0.35kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 17.24 17.24 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to End: 38.1mm
Schedule: 40s
Weight: 0.35kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 21.96 21.96 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 25.4mm
Schedule: A403 Seamless
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 25.4mm
Schedule: A403 Seamless
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 40s SEAMLESS ELBOW 45° SS 316
Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.91mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification
£ 11.40 11.4 GBP Available to Order Enquire
DN25 (1" NB) SCHEDULE 80S A403 SEAMLESS LONG RADIUS 45 DEG ELBOW SS 316
Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 22.4mm
Schedule: A403 Seamless
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 9.76 9.76 GBP Available to Order Enquire
DN25 X DN15 (1" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 33 X 21mm
Wall Thickness: 3.38 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 X DN15 (1" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 33 X 21mm
Wall Thickness: 3.38 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 X DN15 (1" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 33 X 21mm
Wall Thickness: 3.38 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 X DN15 (1" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 33 X 21mm
Wall Thickness: 3.38 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 X DN20 (1" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 33 X 27mm
Wall Thickness: 3.38 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 X DN20 (1" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 33 X 27mm
Wall Thickness: 3.38 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 X DN20 (1" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 33 X 27mm
Wall Thickness: 3.38 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 X DN20 (1" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 33 X 27mm
Wall Thickness: 3.38 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 x DN20 (1 x 3/4" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 33 x 27mm
Wall Thickness (Run x Branch): 3.38 x 2.87mm
Centre to End (Run): 38mm
Centre to End (Branch): 38mm
Schedule: 40s
Weight: 0.34kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 x DN20 (1 x 3/4" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 33 x 27mm
Wall Thickness (Run x Branch): 3.38 x 2.87mm
Centre to End (Run): 38mm
Centre to End (Branch): 38mm
Schedule: 40s
Weight: 0.34kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 (1¼" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to End: 47.6mm
Schedule: 40s
Weight: 0.6kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 25.44 25.44 GBP Available to Order Enquire
DN32 (1¼" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to End: 47.6mm
Schedule: 40s
Weight: 0.6kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 33.64 33.64 GBP Available to Order Enquire
DN32 (1¼" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 47.6mm
Schedule: A403 Seamless
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 (1¼" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 47.6mm
Schedule: A403 Seamless
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 (1¼" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: A403 Seamless
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 (1¼" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: A403 Seamless
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN15 (1¼" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 21mm
Wall Thickness: 3.56 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN15 (1¼" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 42 X 21mm
Wall Thickness: 3.56 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN15 (1¼" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 21mm
Wall Thickness: 3.56 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN15 (1¼" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 42 X 21mm
Wall Thickness: 3.56 X 2.77mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN20 (1¼" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN20 (1¼" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN20 (1¼" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN20 (1¼" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN25 (1¼" X 1" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN25 (1¼" X 1" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN25 (1¼" X 1" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 X DN25 (1¼" X 1" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: 51mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 x DN25 (1.1/4 x 1" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 42 x 33mm
Wall Thickness (Run x Branch): 3.56 x 3.38mm
Centre to End (Run): 48mm
Centre to End (Branch): 48mm
Schedule: 40s
Weight: 0.63kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 x DN25 (1.1/4 x 1" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 42 x 33mm
Wall Thickness (Run x Branch): 3.56 x 3.38mm
Centre to End (Run): 48mm
Centre to End (Branch): 48mm
Schedule: 40s
Weight: 0.63kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1.1/2" NB) SCHEDULE 40s SEAMLESS ELBOW 90° SS 316
Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.68mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9, Schedule 40s
Radius Centre to Face: 57.1mm
Angle: 90 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Long Rad, 90s
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1½" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to End: 57.2mm
Schedule: 40s
Weight: 0.92kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 44.68 44.68 GBP Available to Order Enquire
DN40 (1½" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to End: 57.2mm
Schedule: 40s
Weight: 0.92kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 34.40 34.4 GBP Available to Order Enquire
DN40 (1½" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 57.1mm
Schedule: A403 Seamless
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1½" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 57.1mm
Schedule: A403 Seamless
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1½" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1½" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 38.1mm
Schedule: A403 Seamless
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN15 (1½" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 21mm
Wall Thickness: 3.68 X 2.77mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN15 (1½" X ½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 21mm
Wall Thickness: 3.68 X 2.77mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN15 (1½" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 21mm
Wall Thickness: 3.68 X 2.77mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN15 (1½" X ½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 21mm
Wall Thickness: 3.68 X 2.77mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN20 (1½" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 27mm
Wall Thickness: 3.68 X 2.87mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN20 (1½" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 27mm
Wall Thickness: 3.68 X 2.87mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN20 (1½" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 27mm
Wall Thickness: 3.68 X 2.87mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN20 (1½" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 27mm
Wall Thickness: 3.68 X 2.87mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN25 (1½" X 1" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 33mm
Wall Thickness: 3.68 X 3.38mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN25 (1½" X 1" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 33mm
Wall Thickness: 3.68 X 3.38mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN25 (1½" X 1" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 33mm
Wall Thickness: 3.68 X 3.38mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN25 (1½" X 1" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 33mm
Wall Thickness: 3.68 X 3.38mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN32 (1½" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 42mm
Wall Thickness: 3.68 X 3.56mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN32 (1½" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 42mm
Wall Thickness: 3.68 X 3.56mm
Length: 64mm
£ 10.80 10.8 GBP Available to Order Enquire
DN40 X DN32 (1½" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 42mm
Wall Thickness: 3.68 X 3.56mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 X DN32 (1½" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 48 X 42mm
Wall Thickness: 3.68 X 3.56mm
Length: 64mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to End: 63.5mm
Schedule: 40s
Weight: 1.34kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 33.28 33.28 GBP Available to Order Enquire
DN50 (2" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to End: 63.5mm
Schedule: 40s
Weight: 1.34kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 55.32 55.32 GBP Available to Order Enquire
DN50 (2" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 76.2mm
Schedule: A403 Seamless
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 76.2mm
Schedule: A403 Seamless
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 50.8mm
Schedule: A403 Seamless
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 50.8mm
Schedule: A403 Seamless
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) SCHEDULE 40s SEAMLESS CAP END SS 316
Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 3.91mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Construction: Seamless

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Cap, Blank, Stop end, Weld Cap
£ 17.32 17.32 GBP Available to Order Enquire
DN50 X DN20 (2" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 27mm
Wall Thickness: 3.91 X 2.87mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN20 (2" X ¾" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 27mm
Wall Thickness: 3.91 X 2.87mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN20 (2" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 27mm
Wall Thickness: 3.91 X 2.87mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN20 (2" X ¾" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 27mm
Wall Thickness: 3.91 X 2.87mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN25 (2" X 1" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 33mm
Wall Thickness: 3.91 X 3.38mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN25 (2" X 1" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 33mm
Wall Thickness: 3.91 X 3.38mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN25 (2" X 1" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 33mm
Wall Thickness: 3.91 X 3.38mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN25 (2" X 1" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 33mm
Wall Thickness: 3.91 X 3.38mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN32 (2" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 42mm
Wall Thickness: 3.91 X 3.56mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN32 (2" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 42mm
Wall Thickness: 3.91 X 3.56mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN32 (2" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 42mm
Wall Thickness: 3.91 X 3.56mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN32 (2" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 42mm
Wall Thickness: 3.91 X 3.56mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN40 (2" X 1½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 48mm
Wall Thickness: 3.91 X 3.68mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN40 (2" X 1½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 48mm
Wall Thickness: 3.91 X 3.68mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN40 (2" X 1½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 48mm
Wall Thickness: 3.91 X 3.68mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 X DN40 (2" X 1½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 60 X 48mm
Wall Thickness: 3.91 X 3.68mm
Length: 76mm
Contact us for pricing 0.0 GBP Available to Order Enquire
Click on "Edit" in the right panel to replace this with your own HTML code
