Stainless Steel Blind Flanges – EN1092-1 Type 05, PN6 to PN40

Integraflow supplies EN1092-1 Type 05 stainless steel blank / blind flanges in 304 (1.4301) and 316L (1.4404) grades, covering PN6, PN10, PN16, PN25, and PN40 pressure ratings, sourced from European and Far Eastern mills, and supplied with full BS EN 10204 3.1 certification, providing a secure, corrosion-resistant sealing solution for closed-end pipeline connections in industrial and process systems.

List 600
Sort By: Name (A-Z)

EN1092-5

DN15 (1/2" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Raised Face (RF): 40mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£28.35 each
List Price – Sign in to view Trade Prices 28.35 GBP
DN15 (1/2" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Raised Face (RF): 40mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£23.87 each
List Price – Sign in to view Trade Prices 23.87 GBP
DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£30.10 each
List Price – Sign in to view Trade Prices 30.1 GBP
DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£41.23 each
List Price – Sign in to view Trade Prices 41.23 GBP
DN20 (3/4" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Raised Face (RF): 52mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£43.47 each
List Price – Sign in to view Trade Prices 43.47 GBP
DN20 (3/4" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Raised Face (RF): 52mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£51.38 each
List Price – Sign in to view Trade Prices 51.38 GBP
DN20 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£46.34 each
List Price – Sign in to view Trade Prices 46.34 GBP
DN20 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£64.89 each
List Price – Sign in to view Trade Prices 64.89 GBP

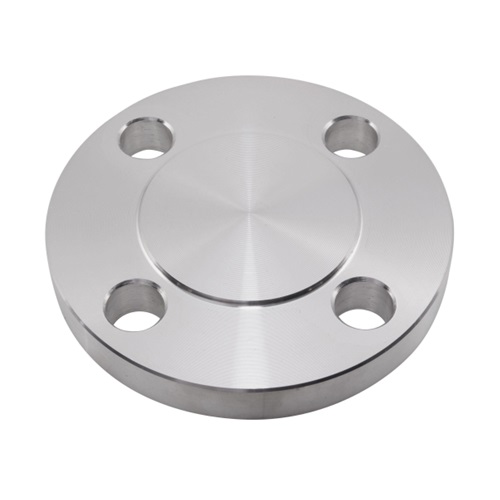

DN25 (1" NB) PN16 RF BLANK FLANGE SS 316
Blanking / Blind Flange
Material: Stainless
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 16mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£113.40 each
List Price – Sign in to view Trade Prices 113.4 GBP
DN25 (1" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Raised Face (RF): 62mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£47.11 each
List Price – Sign in to view Trade Prices 47.11 GBP
DN25 (1" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Raised Face (RF): 62mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£54.67 each
List Price – Sign in to view Trade Prices 54.67 GBP
DN25 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£53.41 each
List Price – Sign in to view Trade Prices 53.41 GBP
DN25 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£74.76 each
List Price – Sign in to view Trade Prices 74.76 GBP
DN32 (1.1/4" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 70mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£45.50 each
List Price – Sign in to view Trade Prices 45.5 GBP
DN32 (1.1/4" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 70mm (D1)
Height of Raised Face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£61.25 each
List Price – Sign in to view Trade Prices 61.25 GBP
DN32 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£73.29 each
List Price – Sign in to view Trade Prices 73.29 GBP
DN32 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£105.77 each
List Price – Sign in to view Trade Prices 105.77 GBP
DN40 (1.1/2" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 130mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 80mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£65.38 each
List Price – Sign in to view Trade Prices 65.38 GBP
DN40 (1.1/2" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 130mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 80mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£98.07 each
List Price – Sign in to view Trade Prices 98.07 GBP
DN40 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 150mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 110mm
Flange thickness (C4): 18mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£87.50 each
List Price – Sign in to view Trade Prices 87.5 GBP
DN40 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 150mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 110mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£109.90 each
List Price – Sign in to view Trade Prices 109.9 GBP
DN50 (2" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 165mm
Drilling (No. x Bolt Hole x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 90mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£109.90 each
List Price – Sign in to view Trade Prices 109.9 GBP
DN50 (2" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 165mm
Drilling (No. x Bolt Hole x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 90mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£148.75 each
List Price – Sign in to view Trade Prices 148.75 GBP
DN50 (2" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 90mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£64.05 each
List Price – Sign in to view Trade Prices 64.05 GBP
DN50 (2" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 90mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£85.96 each
List Price – Sign in to view Trade Prices 85.96 GBP
DN50 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 165mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C4): 20mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£116.83 each
List Price – Sign in to view Trade Prices 116.83 GBP
DN50 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 165mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C4): 20mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£147.63 each
List Price – Sign in to view Trade Prices 147.63 GBP
DN65 (2.1/2" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 185mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 110mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£120.61 each
List Price – Sign in to view Trade Prices 120.61 GBP
DN65 (2.1/2" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 185mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 110mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£178.29 each
List Price – Sign in to view Trade Prices 178.29 GBP
DN65 (2.1/2" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 110mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£73.15 each
List Price – Sign in to view Trade Prices 73.15 GBP
DN65 (2.1/2" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 110mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£107.45 each
List Price – Sign in to view Trade Prices 107.45 GBP
DN65 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 185mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C4): 22mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£151.06 each
List Price – Sign in to view Trade Prices 151.06 GBP
DN65 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 185mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C4): 22mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£216.02 each
List Price – Sign in to view Trade Prices 216.02 GBP
DN80 (3" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 200mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 138mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£165.69 each
List Price – Sign in to view Trade Prices 165.69 GBP
DN80 (3" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 200mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 138mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£241.85 each
List Price – Sign in to view Trade Prices 241.85 GBP
DN80 (3" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Raised Face (RF): 128mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£120.96 each
List Price – Sign in to view Trade Prices 120.96 GBP
DN80 (3" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Raised Face (RF): 128mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£173.32 each
List Price – Sign in to view Trade Prices 173.32 GBP
DN80 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 200mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C4): 24mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£315.21 each
List Price – Sign in to view Trade Prices 315.21 GBP
DN80 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 200mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C4): 24mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£229.88 each
List Price – Sign in to view Trade Prices 229.88 GBP
DN100 (4" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 220mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 180mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 148mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£196.98 each
List Price – Sign in to view Trade Prices 196.98 GBP
DN100 (4" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 220mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 180mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 148mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£296.94 each
List Price – Sign in to view Trade Prices 296.94 GBP
DN100 (4" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Raised Face (RF): 148mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£246.12 each
List Price – Sign in to view Trade Prices 246.12 GBP
DN100 (4" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Raised Face (RF): 148mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£215.81 each
List Price – Sign in to view Trade Prices 215.81 GBP
DN100 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 235mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 190mm
Flange thickness (C4): 24mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£258.02 each
List Price – Sign in to view Trade Prices 258.02 GBP
DN100 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 235mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 190mm
Flange thickness (C4): 24mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£389.13 each
List Price – Sign in to view Trade Prices 389.13 GBP
DN125 (5" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 250mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 210mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 178mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£293.09 each
List Price – Sign in to view Trade Prices 293.09 GBP
DN125 (5" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 250mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 210mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 178mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£384.30 each
List Price – Sign in to view Trade Prices 384.3 GBP
DN125 (5" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C4)
Diameter of Raised Face (RF): 178mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£277.20 each
List Price – Sign in to view Trade Prices 277.2 GBP
DN125 (5" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C4)
Diameter of Raised Face (RF): 178mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£311.99 each
List Price – Sign in to view Trade Prices 311.99 GBP
DN125 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£620.20 each
List Price – Sign in to view Trade Prices 620.2 GBP
DN125 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£544.88 each
List Price – Sign in to view Trade Prices 544.88 GBP
DN150 (6" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 285mm
Drilling (No. x Bolt Hole x L): 8 x M20 x 22mm
Pitch circle diameter (K): 240mm
Flange thickness (C1): 24mm
Raised face diameter (D1): 202mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£348.88 each
List Price – Sign in to view Trade Prices 348.88 GBP
DN150 (6" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 285mm
Drilling (No. x Bolt Hole x L): 8 x M20 x 22mm
Pitch circle diameter (K): 240mm
Flange thickness (C1): 24mm
Raised face diameter (D1): 202mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£549.85 each
List Price – Sign in to view Trade Prices 549.85 GBP
DN150 (6" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 202mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£273.49 each
List Price – Sign in to view Trade Prices 273.49 GBP
DN150 (6" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 202mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£403.69 each
List Price – Sign in to view Trade Prices 403.69 GBP
DN150 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£492.45 each
List Price – Sign in to view Trade Prices 492.45 GBP
DN150 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£726.04 each
List Price – Sign in to view Trade Prices 726.04 GBP
DN200 (8" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 340mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C4): 24~mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£606.69 each
List Price – Sign in to view Trade Prices 606.69 GBP
DN200 (8" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 340mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C4): 24~mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£859.11 each
List Price – Sign in to view Trade Prices 859.11 GBP
DN200 (8" NB) PN16 RF BLIND FLANGE SS 304
Flange OD (D): 340mm
Drilling (No. x Bolt Hole x L): 12 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C1): 26mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£600.95 each
List Price – Sign in to view Trade Prices 600.95 GBP
DN200 (8" NB) PN16 RF BLIND FLANGE SS 316
Flange OD (D): 340mm
Drilling (No. x Bolt Hole x L): 12 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C1): 26mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£858.13 each
List Price – Sign in to view Trade Prices 858.13 GBP
DN200 (8" NB) PN25 RF BLIND FLANGE SS 304
Flange OD (D): 360mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 310mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£957.60 each
List Price – Sign in to view Trade Prices 957.6 GBP
DN200 (8" NB) PN25 RF BLIND FLANGE SS 316
Flange OD (D): 360mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 310mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 258mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£749.21 each
List Price – Sign in to view Trade Prices 749.21 GBP
DN200 (8" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 258mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£764.26 each
List Price – Sign in to view Trade Prices 764.26 GBP
DN200 PN40 RF BLIND FLANGE SS 304
Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1692.95 each
List Price – Sign in to view Trade Prices 1692.95 GBP
DN200 PN40 RF BLIND FLANGE SS 316
Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1288.35 each
List Price – Sign in to view Trade Prices 1288.35 GBP
DN250 (10" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£914.69 each
List Price – Sign in to view Trade Prices 914.69 GBP
DN250 (10" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1327.62 each
List Price – Sign in to view Trade Prices 1327.62 GBP
DN250 (10" NB) PN25 RF BLIND FLANGE SS 304
Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN25 RF BLIND FLANGE SS 316
Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 312mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 312mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 PN40 RF BLIND FLANGE SS 304
Flange OD (D): 450mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 33mm
Pitch circle diameter (K): 385mm
Flange thickness (C4): 38mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 PN40 RF BLIND FLANGE SS 316
Flange OD (D): 450mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 33mm
Pitch circle diameter (K): 385mm
Flange thickness (C4): 38mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250(10" NB) PN16 RF BLIND FLANGE SS 304
Flange OD (D): 405mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 355mm
Flange thickness (C1): 29mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£879.55 each
List Price – Sign in to view Trade Prices 879.55 GBP
DN250(10" NB) PN16 RF BLIND FLANGE SS 316
Flange OD (D): 405mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 355mm
Flange thickness (C1): 29mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1327.62 each
List Price – Sign in to view Trade Prices 1327.62 GBP
DN300 (12" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 445mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 400mm
Flange thickness (C4): 26mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1130.85 each
List Price – Sign in to view Trade Prices 1130.85 GBP
DN300 (12" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 445mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 400mm
Flange thickness (C4): 26mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£2186.80 each
List Price – Sign in to view Trade Prices 2186.8 GBP
DN300 (12" NB) PN16 RF BLIND FLANGE SS 304
Flange OD (D): 460mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 410mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1893.92 each
List Price – Sign in to view Trade Prices 1893.92 GBP
DN300 (12" NB) PN16 RF BLIND FLANGE SS 316
Flange OD (D): 460mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 410mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1689.73 each
List Price – Sign in to view Trade Prices 1689.73 GBP
DN300 (12" NB) PN25 RF BLIND FLANGE SS 304
Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN25 RF BLIND FLANGE SS 316
Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Raised Face (RF): 365mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Raised Face (RF): 365mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 PN40 RF BLIND FLANGE SS 304
Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 PN40 RF BLIND FLANGE SS 316
Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 505mm
Drilling (No. x Bolt Holes x L): 16 x M20 x 22mm
Pitch circle diameter (K): 460mm
Flange thickness (C4): 30mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1529.22 each
List Price – Sign in to view Trade Prices 1529.22 GBP
DN350 (14" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 505mm
Drilling (No. x Bolt Holes x L): 16 x M20 x 22mm
Pitch circle diameter (K): 460mm
Flange thickness (C4): 30mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£2160.41 each
List Price – Sign in to view Trade Prices 2160.41 GBP
DN350 (14" NB) PN16 RF BLIND FLANGE SS 304
Flange OD (D): 520mm
Drilling (No. x Bolt Hole x L): 16 x M24 x 26mm
Pitch circle diameter (K): 470mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1774.64 each
List Price – Sign in to view Trade Prices 1774.64 GBP
DN350 (14" NB) PN16 RF BLIND FLANGE SS 316
Flange OD (D): 520mm
Drilling (No. x Bolt Hole x L): 16 x M24 x 26mm
Pitch circle diameter (K): 470mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£2612.33 each
List Price – Sign in to view Trade Prices 2612.33 GBP
DN350 (14" NB) PN25 RF BLIND FLANGE SS 304
Flange OD (D): 555mm
Drilling (No. x Bolt Hole x L): 16 x M30 x 33mm
Pitch circle diameter (K): 490mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN25 RF BLIND FLANGE SS 316
Flange OD (D): 555mm
Drilling (No. x Bolt Hole x L): 16 x M30 x 33mm
Pitch circle diameter (K): 490mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C4)
Diameter of Raised Face (RF): 415mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C4)
Diameter of Raised Face (RF): 415mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 PN40 RF BLIND FLANGE SS 304
Flange OD (D): 580mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 36mm
Pitch circle diameter (K): 510mm
Flange thickness (C4): 46mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 PN40 RF BLIND FLANGE SS 316
Flange OD (D): 580mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 36mm
Pitch circle diameter (K): 510mm
Flange thickness (C4): 46mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 565mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 26mm
Pitch circle diameter (K): 515mm
Flange thickness (C4): 32mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£1755.60 each
List Price – Sign in to view Trade Prices 1755.6 GBP
DN400 (16" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 565mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 26mm
Pitch circle diameter (K): 515mm
Flange thickness (C4): 32mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£3188.36 each
List Price – Sign in to view Trade Prices 3188.36 GBP
DN400 (16" NB) PN16 RF BLIND FLANGE SS 304
Flange OD (D): 580mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 525mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 465mm
Raised face height (F1): 4mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£2353.61 each
List Price – Sign in to view Trade Prices 2353.61 GBP
