DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 25.34 25.34 GBP

DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 36.54 36.54 GBP

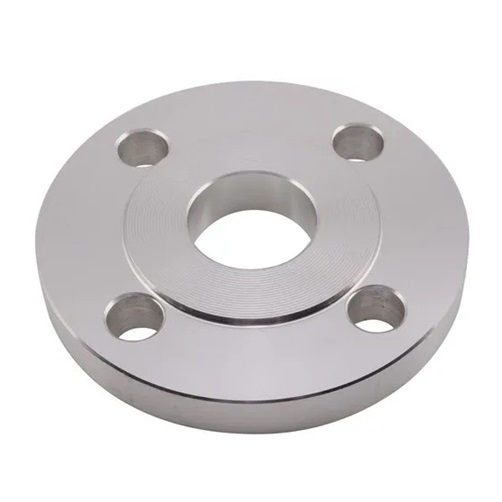

DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 41.86 41.86 GBP

DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 67.62 67.62 GBP

DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 81.27 81.27 GBP

DN50 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 74.55 74.55 GBP

DN50 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact us for pricing 0.0 GBP

DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE SS 304

Suits an outside diameter (OD) of: 73/76.2mm
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Stainless Steel, Steel

£ 89.46 89.46 GBP

DN65 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 89.46 89.46 GBP

DN80 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 94.57 94.57 GBP

DN100 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 115.01 115.01 GBP

DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 154.77 154.77 GBP

DN150 (6" NB) (168.3mm) PN16 RF SLIP ON PLATE FLANGE SS 304

Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 3.1 BS EN 10204 Material Certification

£ 192.29 192.29 GBP

DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 192.29 192.29 GBP

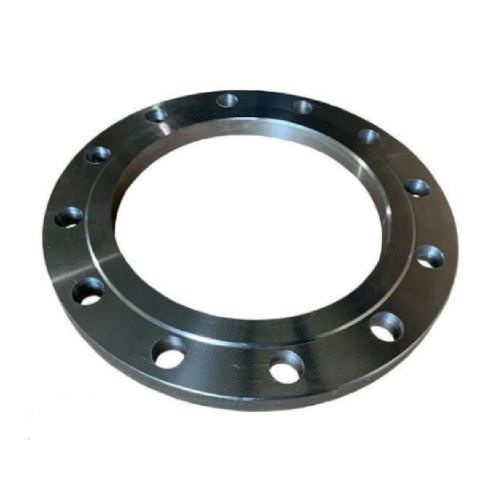

DN200 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 261.73 261.73 GBP

DN250 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 405mm (D)
PCD: 355mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 29mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 427.63 427.63 GBP

DN300 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 597.80 597.8 GBP

DN350 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 520mm (D)
PCD: 470mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 985.53 985.53 GBP

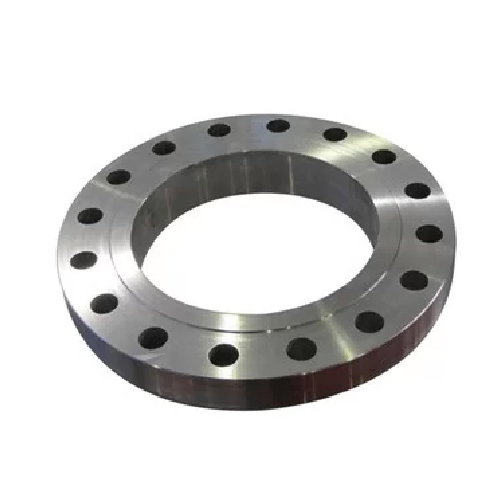

DN400 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 580mm (D)
PCD: 525mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 1,235.78 1235.78 GBP

DN450 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 640mm (D)
PCD: 585mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 1,485.96 1485.96 GBP

DN500 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 715mm (D)
PCD: 650mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

£ 2,143.82 2143.82 GBP

DN600 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact us for pricing 0.0 GBP

DN700 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 910mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 36mm diameter (L)
Flange Thickness: 63mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact us for pricing 0.0 GBP

DN800 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1025mm (D)
PCD: 950mm (K)
Bolt Holes: 24 off 39mm diameter (L)
Flange Thickness: 74mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact us for pricing 0.0 GBP

DN900 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1125mm (D)
PCD: 1050mm (K)
Bolt Holes: 24 off 39mm diameter (L)
Flange Thickness: 82mm (C1)
Diameter of Raised Face (RF): 980mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact us for pricing 0.0 GBP

DN1000 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1255mm (D)
PCD: 1170mm (K)
Bolt Holes: 28 off 42mm diameter (L)
Flange Thickness: 90mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact us for pricing 0.0 GBP

DN1200 PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1485mm (D)
PCD: 1390mm (K)
Bolt Holes: 32 off 48mm diameter (L)
Flange Thickness: 98mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact us for pricing 0.0 GBP
